Titan 840i Main Assembly
Find replacement components for your Titan 840i Main Assembly at AllTitanParts. Use the assembly diagram and individual part numbers to identify the fluid section, material intake components, fittings and mounting hardware needed for your repair.
Identify the Right Part for Your 840i Repair

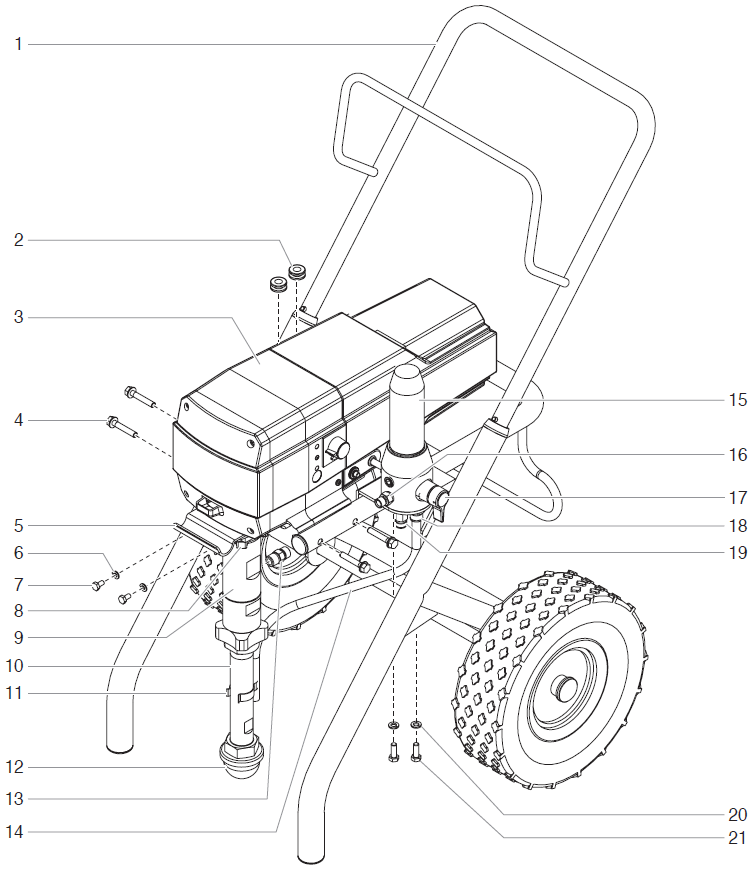

The main assembly diagram provides a starting point for locating components around the sprayer's fluid section and material intake connections. Compare the numbered position with the corresponding product listing, then review the part number before adding an item to your order.
Build your repair list around the components that inspection shows need attention. When servicing an assembly, check adjoining connections and hardware as well. A clear record of the model, diagram position and existing part number can help you avoid ordering a similar-looking component for the wrong application.
Fluid Section Selection
Review the fluid section listing when your repair calls for an assembly replacement. Check the product details for its contents before purchasing additional internal components.
Intake and Return Connections

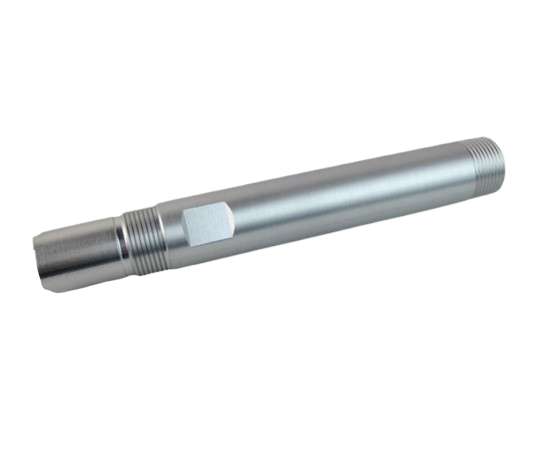

Locate the siphon tube, inlet screen, bypass tube and hose tie clamp by their diagram references. Inspect the installed arrangement before selecting replacement pieces.
Mounting Hardware and Fittings
Match screws, washers, nuts and fittings to the correct location. Appearance alone does not establish the thread, dimensions or suitability of a replacement.
Titan 840i Main Assembly Part Numbers
Use these references to compare the assembly drawing with the available product listings. Diagram positions identify locations and should not be used as order quantities.
Ordering tip: Preserve leading zeros when searching part numbers such as 0508343 and 0507671. Review each product's supplied contents and confirm the quantity required for your repair.
Prepare Your Replacement Parts Order
Confirm the Model
Record the sprayer's model and serial number. Check that the drawing matches the equipment configuration you are servicing.
Inspect Before Ordering
Follow the equipment's shutdown and pressure relief instructions before inspection. Note damaged components, connection locations and any missing hardware.
Review Product Details
Compare the selected listing with your repair requirements. Confirm assembly contents, fitting specifications and quantities before completing the purchase.
Frequently Asked Questions
Does this category represent one complete main assembly kit?
Use this page to select individual replacement products by diagram position and part number. Check each listing to determine whether it supplies a single component or an assembly.
How do I choose between the fittings shown?
Start with the fitting's location on the diagram, then compare its part number and product specifications with the existing connection. Do not choose a fitting solely because its shape looks similar.
Should I order washers and screws with a larger component?
Inspect the existing hardware and review what the replacement product includes. Add separate hardware when needed, using the correct part number and required quantity.
What information helps with part identification?
Have your model, serial number, diagram position and any readable part number ready. A clear description of the component and its installed location can also help narrow the selection.
Find Your Titan 840i Main Assembly Parts
Compare the diagram references, review the product details and order the components your repair requires. Contact AllTitanParts if you need help identifying a part before purchasing.
Call 713-931-0006 for Parts Assistance
