Titan 840i Filter Assembly (P/N 800-900)
Shop replacement components for the Titan 840i Filter Assembly (P/N 800-900) at AllTitanParts. Locate the manifold filter, housings, springs, seal and associated components by diagram position, then compare individual product details to prepare your repair order.
Build Your Filter Assembly Parts Order
A well-planned repair starts with accurate component identification. Compare the filter assembly installed on your sprayer with the exploded drawing, record the relevant part numbers and inspect the pieces involved in your service task.
Separate routine filter maintenance from repairs involving the housing, valve or pressure-sensing components. Review the applicable troubleshooting procedure before choosing replacements, and check each listing for supplied contents.
Filter and Supporting Parts
Identify the manifold filter, adapter and springs separately. Preserve the component arrangement during service and confirm the filter selection for your coating and equipment configuration.
Housings and Seals
Compare the upper housing and base housing references before purchasing. Inspect sealing surfaces and the O-ring during service, then select replacements according to their condition.
Valve and Transducer Listings
Use the drawing to locate the Prime/Spray valve and transducer assembly. Confirm the diagnosis and exact component reference before adding either assembly to your order.

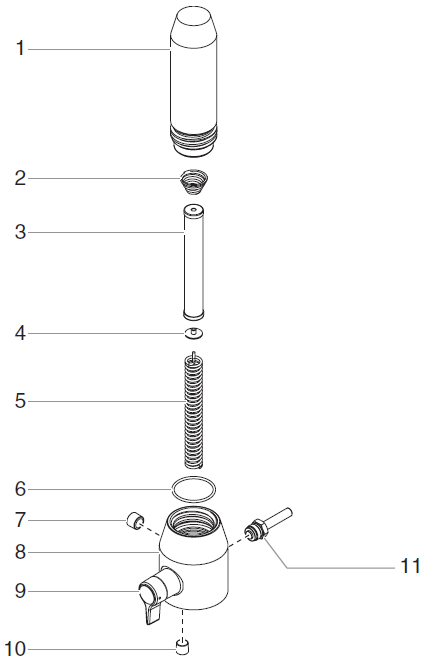

Titan 840i Filter Assembly Part Numbers
Match these replacement references to the numbered drawing. Diagram positions identify component locations, not purchase quantities.
Replacement reference: Filter housing 800-705 replaces 800-905. If your existing housing carries the older number, compare it with the current replacement listing before ordering.
Check Before You Purchase
Verify the Installed Assembly
Confirm your sprayer model and compare the installed assembly with the drawing. Have the model and serial number ready when requesting fitment assistance.
Confirm Filter Requirements
Check the applicable equipment instructions and coating requirements before changing mesh grades. Select the filter by its part number and specified mesh.
Review Contents and Quantities
Check how each component is sold. Do not assume that a housing includes the filter, springs, O-ring or other separately listed items.
Follow the sprayer's shutdown and pressure relief procedure before opening the filter housing or removing components. Use the applicable service instructions for cleaning, installation and reassembly checks.
Related Titan 840i Assemblies
Continue your parts search when inspection identifies repair needs elsewhere on the sprayer.
Frequently Asked Questions
Does reference 800-900 mean I am buying a complete assembly?
800-900 identifies the filter assembly covered by this category. Review the individual product listing to confirm the components included in your purchase.
Which manifold filter is shown in this parts list?
The listed manifold filter is Titan 730-067, a 60 mesh filter at diagram position 3. Confirm the appropriate filter requirements for your application before ordering.
Are the filter spring and support spring the same part?
They are separate references: 14058 at position 2 and 757-105 at position 5. Match each spring to its illustrated location.
Should low pressure automatically lead to a transducer replacement?
No. Follow the equipment's troubleshooting procedure to establish the cause before selecting replacement parts. A symptom alone does not identify the failed component.
Order Titan 840i Filter Assembly Parts
Find the references your repair requires, compare product contents and complete your parts order. Contact AllTitanParts for help identifying a filter assembly component.
Call 713-931-0006 for Parts Assistance
