Titan Stati-Kit 2000 Parts Listing
Use the Titan Stati-Kit 2000 Parts Listing to identify genuine OEM replacement and service parts for the SprayTech electrostatic spraying system. Match numbered diagram callouts with the corresponding parts list to locate seals, O-rings, valve components, filters, fittings, hose components, air caps, nozzles, spray components and related hardware.
Find the Correct Titan Stati-Kit 2000 Replacement Part
The Stati-Kit 2000 contains specialized electrostatic spray-gun, fluid, air and sealing components. Many individual parts are small or visually similar, making the exploded diagram and OEM parts listing important tools when identifying the correct replacement.

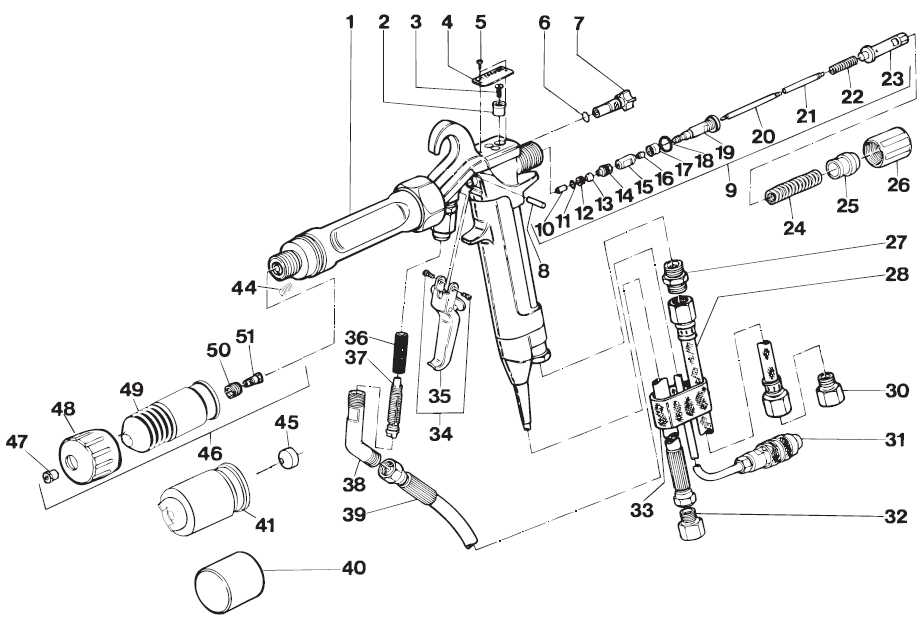

Locate the component on the Stati-Kit 2000 exploded view, note its numbered callout and match that number with the corresponding entry in the parts list. Verify the OEM part number and description before purchasing, especially when servicing internal gun components, seals, valves, fluid fittings or spray-head components.
How to Use the Stati-Kit 2000 Parts Listing
Confirm the System
Verify that you are servicing a Titan/SprayTech Stati-Kit 2000 electrostatic spraying system.
Locate the Component
Find the required component on the applicable Stati-Kit 2000 exploded parts diagram.
Match the Callout
Match the diagram reference number with the corresponding line in the OEM parts listing.
Verify Before Ordering
Confirm the part number, description and documented application before adding the replacement component to your order.
Browse Stati-Kit 2000 Parts by Component Type
The parts listing covers serviceable components used throughout the Stati-Kit 2000 electrostatic spraying system. Always use the diagram callout and OEM part number to determine the exact component required.
Serviceable sealing components used at documented locations within the gun, fluid path and related assemblies.

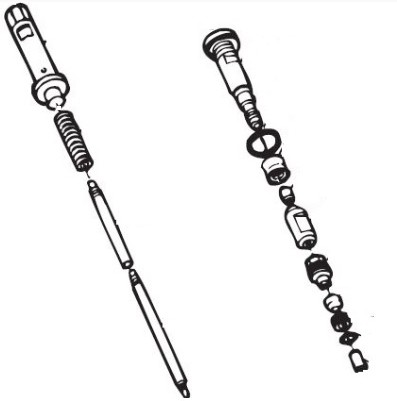

Locate documented valve rods, springs and associated internal components by their exact diagram position.

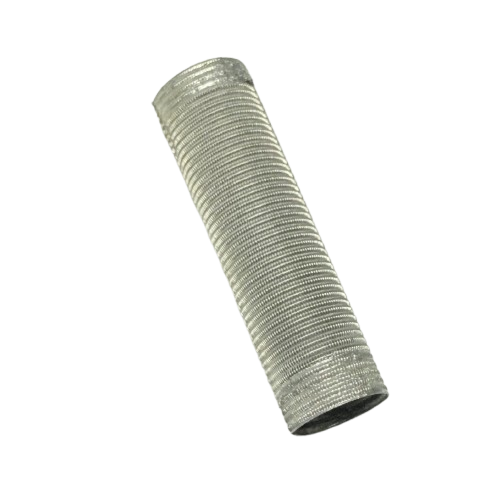

Filter components help manage contaminants before coating material reaches downstream spray components.
Identify fittings and connections from their documented location in the high-pressure fluid path.
Match replacement hose-related components to the specified Stati-Kit 2000 configuration.

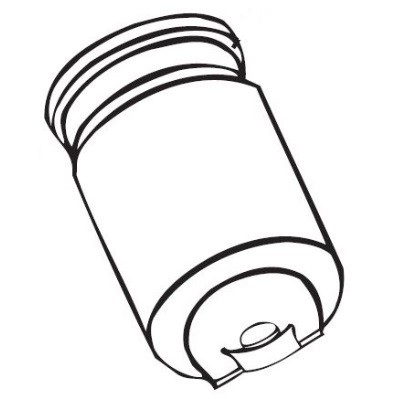

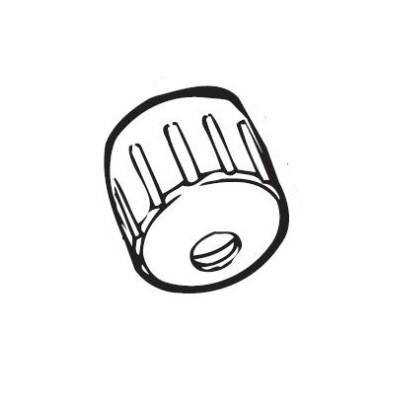

Air-cap components work with the applicable nozzle and tip configuration to support coating atomization.

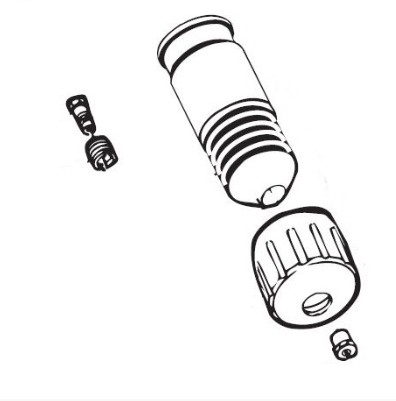

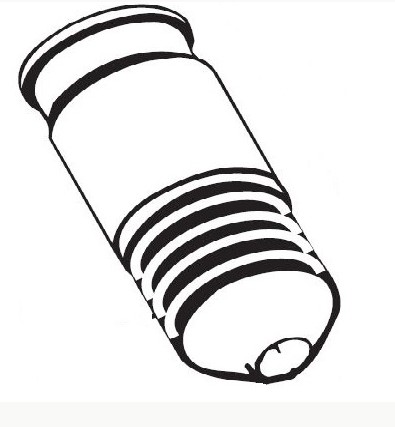

Use the exact documented nozzle or tip-body configuration when replacing spray-head components.
Small internal springs, retainers and related hardware should be identified by diagram position rather than appearance.
Where Stati-Kit 2000 Replacement Parts Are Used
Individual parts work together across several functional areas of the electrostatic spraying system. Identifying the affected system first can make the correct diagram callout easier to locate.
Gun & Trigger Components
Includes documented internal and external components associated with gun operation, fluid control and triggering.
Fluid Delivery Components
Includes documented seals, fittings, filters, hose-related parts and other components associated with coating delivery.
Air Cap, Nozzle & Tip Area
Contains components directly involved in atomization and formation of the spray pattern.
Electrostatic System Components
Specialized electrostatic components require correct identification and model-specific service procedures.
Common Stati-Kit 2000 Service Areas to Inspect
Use symptoms as a starting point for inspection rather than assuming one specific component has failed. Follow the applicable Stati-Kit 2000 troubleshooting and service instructions before disassembly or replacement.
| Condition | Inspect First | Related Parts | System Area |
|---|---|---|---|
| Fluid Leakage | Exact leak location | Seals, O-rings, fittings | Fluid / Gun |
| Restricted Material Flow | Filter and fluid path | Filter, hose, nozzle | Fluid System |
| Irregular Trigger Operation | Trigger and valve area | Valve rod, spring, seals | Gun Assembly |
| Uneven Spray Pattern | Spray-head area | Air cap, nozzle, tip | Atomization |
| Visible Hose Damage | Hose exterior and connections | Hose and fittings | Fluid Delivery |
| Reduced Electrostatic Effect | Grounding and system setup | Documented electrostatic components | Electrostatic System |
Related Components to Inspect During Repair
When one component requires replacement, inspect adjacent parts before reassembly. Wear, contamination or damage elsewhere in the same system can affect operation even after the original component is replaced.
Inspect the mating surface, adjacent O-rings and associated fluid components for wear or damage.
Inspect the documented valve rod, spring, sealing components and surrounding internal parts.
Inspect the air cap, tip components and associated sealing surfaces for contamination or wear.
Inspect the associated fittings, connections and routing before returning the system to service.
Shop More Titan Stati-Kit 2000 Parts
Use these related Stati-Kit 2000 sections to move between the complete system page, replacement-parts listing, accessories and spare spray-tip information.
Browse SprayTech Electrostatic Sprayer Parts
Need parts for another Titan or SprayTech electrostatic system? Return to the main electrostatic sprayer parts category to browse other model-specific equipment and replacement-parts sections.
Browse Electrostatic Sprayer PartsVerify the OEM Part Number Before Ordering
Do not identify Stati-Kit 2000 components solely by shape, dimensions or visual similarity. O-rings, seals, springs, fittings, valve parts, filters, air caps, nozzles and other small components may look similar while serving different functions. Use the correct diagram callout, description and documented OEM part number to identify the replacement.
Before Ordering Stati-Kit 2000 Replacement Parts
Verify the exact Titan/SprayTech electrostatic system before using this parts listing.
Locate the component on the exploded view and record its numbered reference.
Match the callout to the corresponding parts-list description and OEM number.
Inspect related seals, fittings, springs or other components before completing the repair.
Stati-Kit 2000 Service Safety
Shut down the electrostatic system and coating supply, isolate applicable energy sources and relieve fluid pressure before inspection, disassembly or parts replacement. Never loosen a pressurized fitting, hose or gun component.
Electrostatic spray equipment requires proper grounding and careful handling of electrical and high-pressure components. Follow the complete Titan/SprayTech Stati-Kit 2000 operating and service instructions for grounding, pressure relief, cleaning, inspection and repair.
Shop Titan Stati-Kit 2000 Replacement Parts
Use the Stati-Kit 2000 parts diagram and OEM parts listing to identify the component you need. Match the numbered callout, verify the part number and select the correct replacement for your repair.
Shop Stati-Kit 2000 PartsTitan Stati-Kit 2000 Parts Listing FAQ
How do I use the Titan Stati-Kit 2000 parts listing?
Locate the component on the appropriate exploded diagram, note its numbered callout and match that number to the corresponding parts-list entry and OEM part number.
What replacement parts are listed for the Stati-Kit 2000?
The parts information covers documented service components including seals, O-rings, valve parts, filters, fittings, hose-related components, air caps, nozzles, spray components and associated hardware.
Where can I find the Stati-Kit 2000 parts diagram?
Use the model-specific Stati-Kit 2000 parts information on this page to match exploded-diagram callouts with the corresponding replacement parts listing.
How do I identify the correct Stati-Kit 2000 seal or O-ring?
Do not identify sealing components by appearance alone. Locate the exact seal or O-ring on the diagram and match its callout to the documented OEM part number.
What should I inspect if my Stati-Kit 2000 leaks fluid?
After shutting the system down and relieving pressure, identify the exact source of the leak and inspect the associated seals, O-rings, fittings, hose and mating components.
What should I inspect for an uneven spray pattern?
Inspect the documented air cap, nozzle and spray-tip area for contamination, wear or damage and check the associated fluid and air supply according to the service instructions.
Can I order a Stati-Kit 2000 part based on appearance?
No. Similar-looking electrostatic spray components may have different applications. Verify the diagram reference, description and OEM part number before ordering.

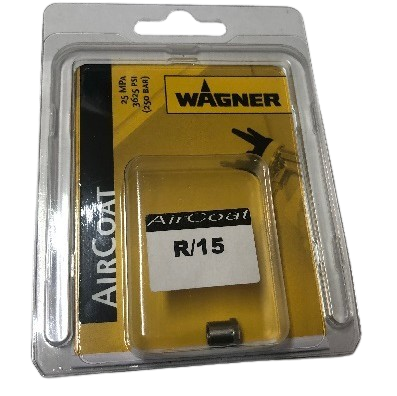

Where can I find Stati-Kit 2000 spare tips?
Use the dedicated Stati-Kit 2000 Spare Tips section for documented spray-tip and nozzle options rather than the general repair-parts listing.
Need Help Identifying a Stati-Kit 2000 Part?
Have the diagram callout, existing component number and a description of the part or service area ready. These details can help identify the correct Stati-Kit 2000 OEM seal, valve component, filter, fitting, hose, air cap, nozzle or related replacement part.
Parts & Fitment Help: 713-931-0006
