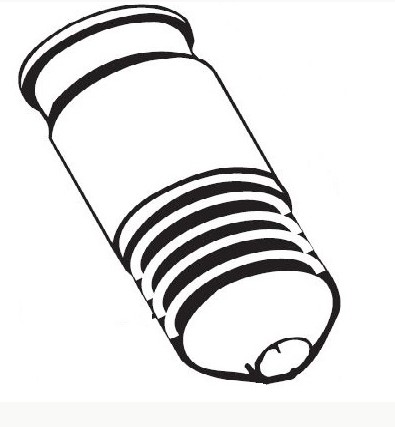

Titan 0179664 Tip Body Complete EACR
OEM Titan Tip Body Complete EACR
Titan 0179664 Tip Body Complete EACR is an OEM tip body assembly for the Stati-Kit 2000 electrostatic spraying system. This EACR (Electrostatic Air Coat Round) tip body mounts to the spray gun body and holds the round spray tip, diffuser, and air cap in proper alignment for consistent electrostatic coating application.
Compatibility Overview
Replacing a worn or damaged tip body restores proper tip alignment, diffuser seating, and consistent electrostatic spray performance.
Titan Tip Body Assembly
Titan 0179664 Tip Body Complete EACR for Stati-Kit 2000 Systems
Titan 0179664 is an OEM complete tip body assembly designed for the Stati-Kit 2000 electrostatic spraying system. The EACR (Electrostatic Air Coat Round) configuration is used with the round nozzle setup, mounting to the spray gun body to hold the spray tip, diffuser, and air cap in proper alignment. It is listed in the official Titan Stati-Kit 2000 owner's manual "Parts Listing - GM 2000 EAC" as item 49, "Tip body, EACR." The manual's "Tip Change" procedure references this component as the "round nozzle body" that is removed and reinstalled during tip servicing. A worn or damaged tip body can cause improper tip alignment, air channel blockage, or incorrect spray patterns, and the manual's troubleshooting section specifically notes that a "Wrong tip body fitted" condition requires fitting the correct EAC tip body.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan/SprayTECH 0179664 complete tip body EACR. Listed in the official Titan Stati-Kit 2000 owner's manual "Parts Listing - GM 2000 EAC" as item 49. Confirmed compatible with Titan 2000 and SprayTECH StatiKit2000 by eReplacementParts. |
| Function | Mounts to the spray gun body and holds the round spray tip and diffuser. Provides proper alignment for the air cap and tip assembly. Ensures correct airflow and electrostatic performance during operation. |
| Compatible Models | Titan 2000 (Stati-Kit 2000 Electrostatic Spraying System), SprayTECH StatiKit2000. Verify fitment against your specific model parts diagram before ordering. |
| When Replacement Is Recommended | Visible wear or damage to the tip body. Air channels in the tip body blocked or restricted. Improper tip alignment or seating issues. Incorrect spray pattern or performance despite clean tips. Troubleshooting indicates a "wrong tip body fitted" condition. |
| Service Guidance | Per the official Titan Stati-Kit 2000 manual: to remove the tip body, place the tip body removal tool on the tip security lever, squeeze and hold while unscrewing the tip body. Screw out the spray tip using the tip removal tool and remove the diffuser. Reassemble in reverse order. Mount the tip body and tighten by hand (do not use the tip removal tool). When adjusting the tip nut, leave a gap for atomizing air between the air cap and tip body. |
| Related Parts Serviced Together | Diffuser with sealing nipple (0132516), air cap EACR (0179536), tip insert EACR 15 standard (0132724), and locking screw (0132351). Inspect these during tip body replacement. |
| Commercial Benefits | Restores proper tip alignment and air channel function, ensures consistent electrostatic spray performance, and prevents coating defects caused by improper tip body fit. |
The 0179664 Tip Body Complete EACR is a practical replacement for contractors and service technicians maintaining the Titan Stati-Kit 2000 electrostatic system. If the tip body is worn, damaged, or has blocked air channels, spray performance and pattern quality can be affected. The official manual's troubleshooting section specifically identifies a "wrong tip body fitted" condition, emphasizing the importance of using the correct EACR tip body for this system. During tip servicing, follow the manual procedure carefully: use the tip body removal tool with the tip security lever, tighten the new tip body by hand, and leave a gap for atomizing air between the air cap and tip body during adjustment. Replacing a worn or incorrect tip body promptly restores proper alignment and consistent electrostatic coating results.
