ProFinish 773-140 Quart Cup Assembly

Titan 770-181 Nut, Jam, Hex

Item No: 86

Part #: 770-181

Titan part 770-181 is a hex jam nut used to secure components on compatible HVLP AirSp...

Retail Price: $150.90

You save: $18.86 (12.50%)

Our Price: $132.04

QTY:

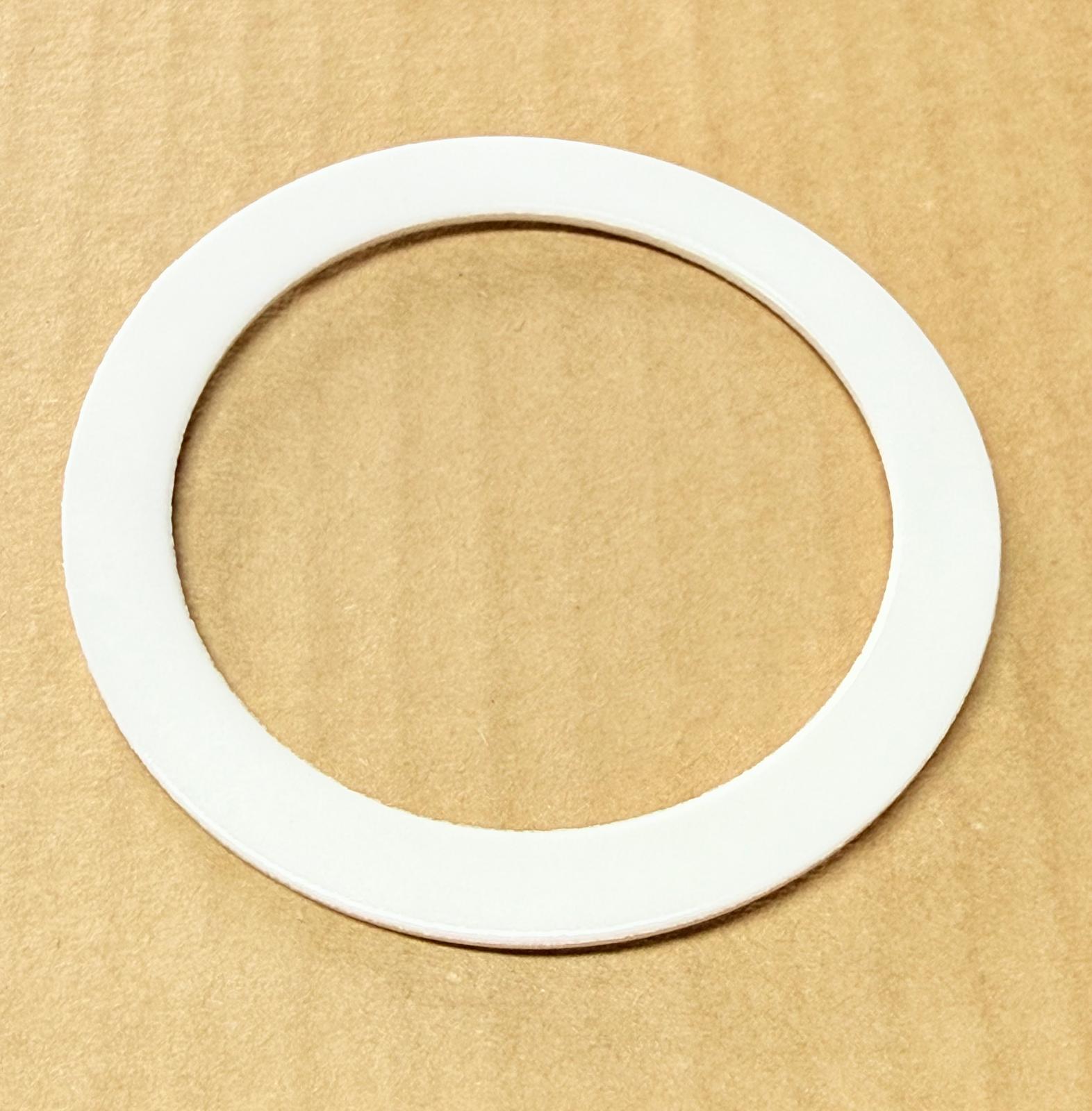

Titan 770-584 Foam Cup Gasket

Item No: 87

Part #: 770-584

Titan part 770-584 is a foam cup gasket used to create an airtight seal between the flui...

$10.30

QTY:

Titan 0277183 Quart Cup Assembly

Item No: 94

Part #: 0277183

Titan part 0277183 is a quart cup assembly used on the SprayTech HVLP Maxum II sprayer...

Retail Price: $208.00

You save: $28.91 (13.90%)

Our Price: $179.09

QTY:

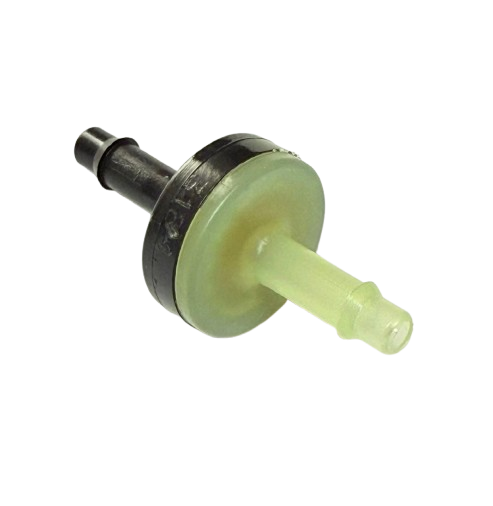

Titan 770-715 Check Valve

Item No: 101

Part #: 770-715

Titan part 770-715 is a replacement check valve used to prevent backflow and maintain ...

$10.20

QTY:

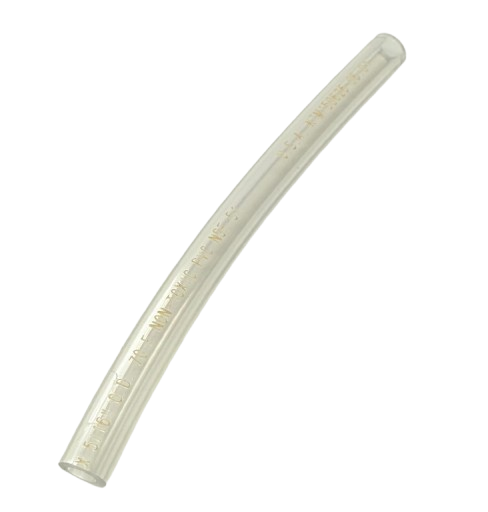

Titan 770-241 Tube, 4"

Item No: 102

Part #: 770-241

Titan part 770-241 is a 4" tube used on compatible HVLP AirSpray equipment, including ...

$6.00

QTY:

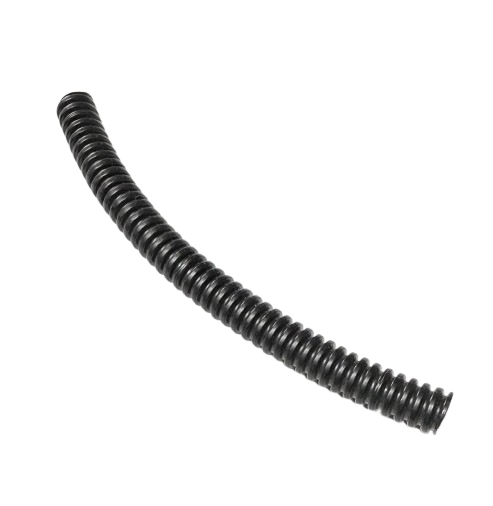

Titan 773-172 Flex Tube - Cut

Item No: 103

Part #: 773-172

Titan 773-172 - Short Description body { background-color: #f8f9fa; ...

$7.30

QTY:

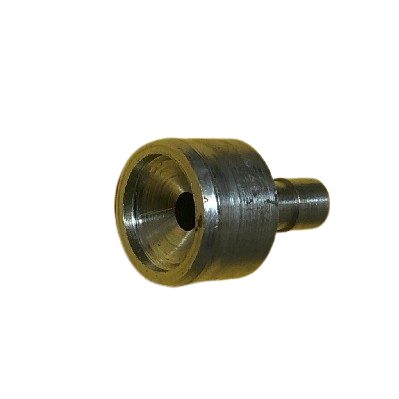

Titan 773-137 Barb, Weight (bottom)

Item No: 104

Part #: 773-137

Titan 773-137 Barb, Weight (bottom)

Retail Price: $47.90

You save: $3.64 (7.60%)

Our Price: $44.26

QTY:

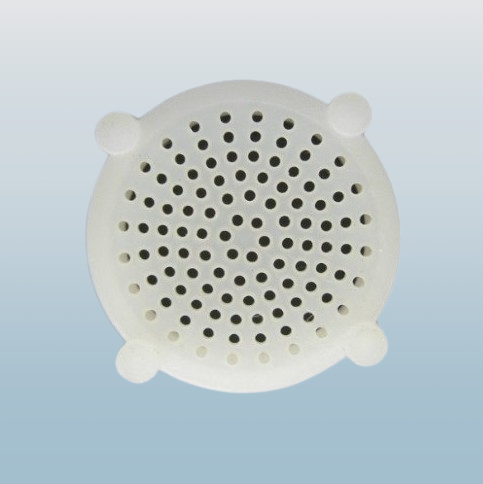

Titan 773-173 Screen

Item No: 105

Part #: 773-173

Titan part 773-173 is a screen (filter strainer) designed for use on HVLP AirSpray Pro...

$13.10

QTY:

ProFinish 773-140 Quart Cup Assembly

The ProFinish 773-140 Quart Cup Assembly is a professional HVLP spray gun fluid cup system designed to provide smooth and consistent material delivery during fine finishing applications. Commonly used with Titan ProFinish and CAPSpray systems, this quart cup assembly helps maintain reliable coating flow for spraying lacquers, stains, sealers, enamels, urethanes, and other fine-finish materials.

This assembly includes essential OEM components such as the cup lid, solvent-resistant gasket, lock bracket, lock cam, flex tube, air supply tube, check valve, barb weight, and mesh screen. These parts work together to maintain proper suction, secure sealing, and uninterrupted fluid transfer while spraying at different angles.

Main Assembly Components

The 773-140 Quart Cup Assembly is designed for durability and dependable HVLP performance in woodworking shops, cabinetry projects, furniture finishing, and commercial coating applications.

Proper cleaning and routine maintenance help reduce clogging, air leaks, and inconsistent spray patterns while extending the life of the spray system.

FAQs

Loss of suction is usually caused by a clogged flex tube, damaged gasket, loose lid connection, or blocked screen filter inside the cup assembly.

Sputtering often occurs when air leaks develop around the cup lid gasket or when the fluid pickup tube becomes partially restricted by dried coating material.

The Titan 770-715 check valve helps maintain proper airflow balance inside the cup assembly. A worn or clogged valve can disrupt fluid delivery and affect atomization consistency.

Yes. A cracked, hardened, or clogged Titan 773-172 Flex Tube can restrict coating pickup, leading to uneven spray patterns and inconsistent fluid flow during operation.

Leaks around the lid are commonly caused by a worn Titan 770-584 solvent gasket, improper lid tightening, or debris on the sealing surface that prevents an airtight seal.

ProFinish 773-140 Quart Cup Assembly

ProFinish 773-140 Quart Cup Assembly

Main Assembly Components

FAQs

1. Why is the quart cup losing suction during spraying?

2. What causes material sputtering from the spray gun?

3. Why is the Titan 770-715 check valve important for spray performance?

4. Can a damaged Titan 773-172 Flex Tube affect material flow?

5. Why is the cup leaking around the lid during use?
