PowrLiner 1800M Siphon Assembly Parts

Titan PowrLiner 1800M Siphon Assembly Parts Breakdown

The Titan PowrLiner 1800M is a walk-behind striping machine designed for parking lots, athletic fields, warehouses, and light commercial pavement marking. This page provides the complete siphon assembly parts breakdown for this specific model.

The siphon assembly is responsible for drawing striping material from the paint container into the pump. On the Titan PowrLiner, proper siphon function ensures steady material flow to the fluid section for consistent pressure and spray output.

What This Siphon Assembly Fits

• Titan PowrLiner 1800M line striping machine

These components are engineered specifically for the 1800M configuration. Always confirm your machine’s model and serial number before ordering replacement parts to ensure correct compatibility.

Where It Is Used

The siphon assembly supports striping operations in:

• Parking lot line marking
• Sports field layout
• Warehouse floor striping
• Light municipal pavement marking
• Commercial property maintenance

As a professional-grade Titan sprayer, the 1800M depends on a properly sealed and unobstructed siphon system. Air leaks, clogged filters, or damaged hoses can cause pressure loss or inconsistent spray patterns.

Siphon Assembly Components Typically Include

• Suction tube
• Return or bypass tube
• Inlet strainer or filter
• Hose fittings and clamps
• Seals and gaskets

These parts regulate material intake into the Titan paint sprayer. Regular inspection of strainers and hoses helps prevent debris from entering the fluid section and reduces the risk of pump damage.

Why Proper Siphon Maintenance Matters

Using correct OEM replacement parts helps maintain:

• Consistent material flow
• Stable operating pressure
• Reduced air intrusion into the pump
• Reliable striping performance

This page is dedicated to accurate identification of Pavement Marking Sprayer Parts and Field Marking Sprayer Parts specific to the 1800M siphon assembly. Always reference the official Titan parts diagram before selecting replacement components.

Ordering Guidance

If you experience suction issues, pressure fluctuation, or material starvation, inspect the suction tube, strainer, and fittings for wear or blockage. Confirm part numbers carefully before purchase to avoid compatibility issues.

For additional OEM breakdowns and replacement components for your Titan PowrLiner, visit alltitanparts.com to explore our complete inventory of Titan striping equipment parts.

Maintaining the siphon assembly ensures your 1800M continues delivering dependable and consistent striping results.

FAQs

1. What is the function of the Titan 704-081A Syphon Assembly?

It draws paint from the container into the sprayer, ensuring a consistent material supply for smooth spraying performance.

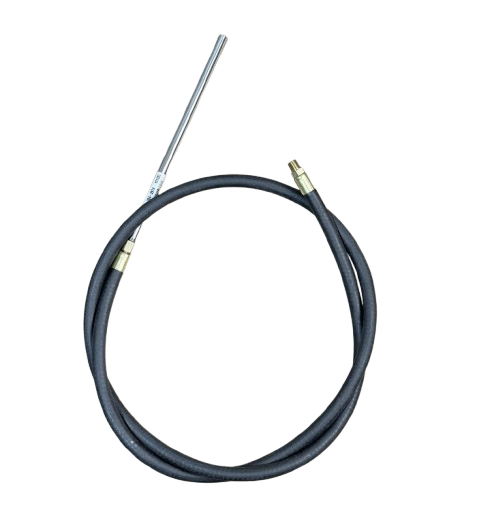

2. Why is the Titan 704-397A Return Hose Assembly Tagged important?

This hose helps circulate paint back into the system during priming and pressure adjustments, improving control and reducing mess.

3. What does the Titan 704-079A Syphon/Bypass Hose Assembly do?

It allows paint to move through the system during bypass mode, making priming easier and helping maintain proper pressure flow.

4. When should I replace siphon assembly parts on my PowrLiner 1800M?

If you notice reduced suction, air entering the system, cracks in the hose, or inconsistent paint flow, it may be time to replace these components.

5. How do siphon assembly parts improve overall spraying efficiency?

By maintaining steady suction and smooth fluid circulation, they help prevent downtime, support consistent pressure, and ensure cleaner, more accurate striping results.
