Titan PowrLiner 1800M Cart Assembly Parts Breakdown
The Titan PowrLiner 1800M is a compact walk-behind striping machine designed for parking lots, athletic fields, warehouses, and light commercial pavement marking. This page provides the complete cart assembly parts breakdown for this specific model. The cart assembly forms the structural base of the Titan PowrLiner. It supports the engine (if equipped), fluid section, drive components, paint container, and spray gun mount. Proper alignment and structural integrity are essential for straight tracking and consistent striping results.
What This Cart Assembly Fits
- Titan PowrLiner 1800M line striping machine
These parts are engineered specifically for the 1800M configuration. Always verify your model and serial number before ordering to ensure correct fitment.
Where It Is Used
The cart assembly supports operation in:
- Parking lot striping projects
- Athletic field layout and marking
- Warehouse floor striping
- Light municipal pavement marking
- Commercial property maintenance applications
As a professional-grade Titan sprayer, the 1800M relies on a stable chassis to maintain line accuracy and operator control. Frame damage, worn wheels, or loose hardware can affect tracking performance and jobsite safety.
Cart Assembly Components Typically Include
- Main frame weldment
- Handle assembly and grips
- Wheel assemblies and axle components
- Mounting brackets and supports
- Paint container supports
- Gun arm mounting structure
- Fasteners and structural hardware
These components create the foundation of the Titan paint sprayer. Maintaining proper alignment helps ensure smooth forward movement and consistent spray gun positioning.
Why Proper Cart Maintenance Matters
Using correct OEM replacement parts helps maintain:
- Stable machine tracking
- Even weight distribution
- Accurate gun alignment
- Safe maneuverability during striping
This page is dedicated to accurate identification of Pavement Marking Sprayer Parts and Field Marking Sprayer Parts specific to the 1800M cart assembly. Always reference the official Titan parts diagram before ordering to avoid compatibility issues.
Ordering Guidance
- If you notice uneven tracking, frame instability, or wheel alignment issues, inspect structural components and mounting hardware for wear or damage. Match part numbers carefully to your unit before purchase.
- For additional OEM breakdowns and replacement parts for your Titan PowrLiner, visit alltitanparts.com to explore our complete inventory of Titan striping equipment components.
- Maintaining the cart assembly ensures your 1800M continues to deliver reliable performance in demanding striping environments.
The PowrLiner 1800M Cart Assembly Parts are designed to provide stability, control, and convenience while operating your line striping machine. Built for durability and ease of use, these components help keep your equipment organized, mobile, and ready for demanding job sites. Whether you’re replacing worn cart parts or upgrading your setup, maintaining a strong cart assembly ensures smoother handling and better spraying efficiency throughout your projects.

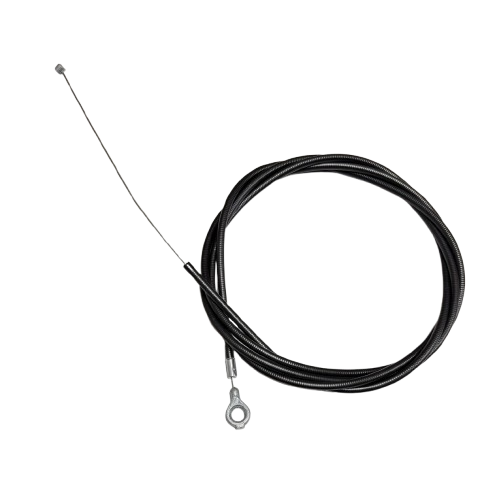

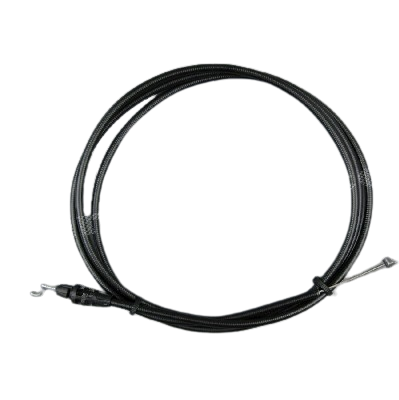

Important components such as the Titan 779-298 Caster Cable PowrLiner help support steering and movement, allowing you to guide the machine with confidence and precision. The Titan 0509171A Gun Holder Assembly keeps your spray gun secure when not in use, reducing strain on hoses and preventing accidental damage. Meanwhile, the Titan 759-499 Cable Gun plays a key role in connecting control functions, helping maintain reliable operation while you work. Together, these cart assembly parts improve mobility, safety, and overall workflow, making your PowrLiner 1800M easier to handle on busy striping jobs.
FAQs
What is the purpose of the Titan 779-298 Caster Cable PowrLiner?
It assists with steering and front-wheel control, helping operators guide the machine smoothly during line striping.
Why is the Titan 0509171A Gun Holder Assembly important?
The gun holder keeps your spray gun safely secured when not in use, preventing drops, damage, and unnecessary wear.
What does the Titan 759-499 Cable Gun do?
It connects the spray gun control system, allowing proper trigger response and reliable operation while spraying.
When should I replace cart assembly parts on my PowrLiner 1800M?
If you notice loose steering, difficulty holding the gun, or worn cables, it may be time to replace these components to maintain safe performance.
How do cart assembly parts improve overall productivity?
By keeping the machine stable, organized, and easy to maneuver, these parts help reduce operator fatigue and ensure smoother, more efficient striping work.
