The PowrDrive Switch Assembly Parts are designed to control the directional and operational functions of Titan PowrDrive hydraulic drive systems used in professional line striping and spraying equipment. This assembly acts as the main user interface for engaging forward and reverse movement, ensuring precise hydraulic response and smooth machine control during operation. A properly functioning switch assembly is essential for accurate direction changes, safe handling, and consistent performance in demanding job site conditions.

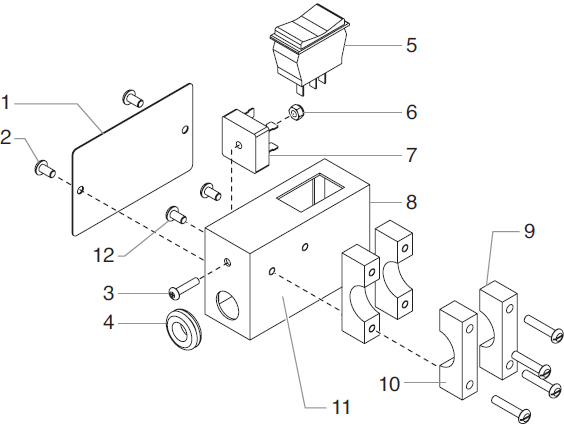

These parts typically include the forward/reverse switch, switch housing, clamp plates, valve control switch, mounting screws, wiring terminals, bridge rectifier 15A LC-860 SP, connectors, and protective grommets. Each component works together to transmit electrical signals to the hydraulic control system, allowing the operator to control movement with minimal delay and high reliability. Any fault in these elements can interrupt signal flow and directly affect machine responsiveness.

Because the system relies on electrical signaling, proper installation and secure wiring are critical for stable performance. Moisture exposure, vibration, loose terminals, or worn internal contacts can all impact switching accuracy and lead to intermittent or complete control failure. Regular inspection and maintenance of the switch assembly help ensure safe operation and prevent unexpected downtime during work.

FAQs

This issue is commonly caused by worn internal switch contacts, broken wiring connections, or loose terminals that interrupt electrical signal transmission to the hydraulic system.

Intermittent operation is often due to vibration loosening the wiring, moisture entering the housing, or partially damaged contact points inside the switch mechanism.

Physical stiffness can result from dirt buildup inside the housing, worn mechanical components, or misalignment of the switch within the mounting bracket.

Complete failure may occur due to burnt contacts, internal short circuits, or broken wiring harness connections that prevent power from reaching the control system.

This can happen when the switch sends a signal correctly, but downstream components like relays, control boards, or hydraulic valves fail to engage properly.

PowrDrive Switch Assembly Parts

PowrDrive Switch Assembly Parts

FAQs

1. Why does the PowrDrive switch assembly fail to activate forward or reverse movement?

2. What causes intermittent response in the PowrDrive switch assembly?

3. Why does the PowrDrive switch assembly feel stuck or hard to operate?

4. What leads to complete electrical failure of the switch assembly?

5. Why does the hydraulic system not respond even when the switch is working?
