CS9960 Spray System Parts List

Titan 0090628 Foot Pad or Pad, 1.5 dia

Item No: 7

Part #: 0090628

Titan part 0090628 is a 1.5 inch diameter foot pad used to provide stable contact with...

$5.90

QTY:

Titan 9802222 Screw

Item No: 8

Part #: 9802222

Titan part 9802222 is a screw used to secure components on compatible SprayTech spraye...

$3.40

QTY:

Titan 0277383 Vent Plate

Item No: 9

Part #: 0277383

SprayTech part 0277383 is a vent plate designed for use on compatible CS series spraye...

$27.40

QTY:

Titan 9800319 Hexagon Socket Screw

Item No: 10

Part #: 9800319

Part 9800319 is a replacement hexagon socket screw for compatible hydrax and SprayTech equipment...

$2.70

QTY:

Titan 9805240 Screw

Item No: 12

Part #: 9805240

Replacement fastener 9805240 is a 8-32 x 3/8 inch tap screw used to secure components ...

$1.40

QTY:

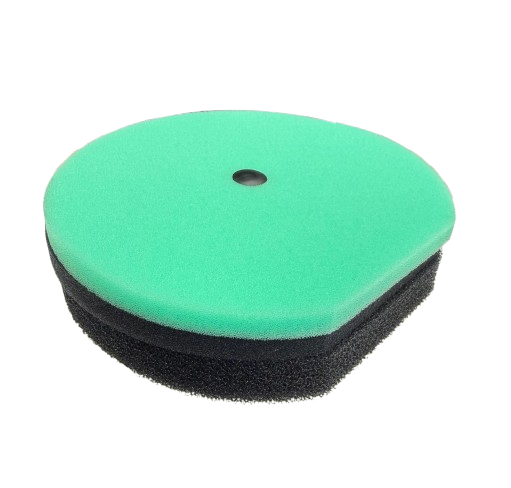

Titan 0279937 CapSpray Air Filter Set

Item No: 14

Part #: 0279937

SprayTech part 0279937 is a complete CapSpray Air Filter Set designed for maintenance of compatible ...

Retail Price: $46.20

You save: $3.51 (7.60%)

Our Price: $42.69

QTY:

Titan 0277367 Filter Screen

Item No: 15

Part #: 0277367

SprayTech part 0277367 is a filter screen designed to capture debris and contaminants ...

Retail Price: $43.00

You save: $3.27 (7.60%)

Our Price: $39.73

QTY:

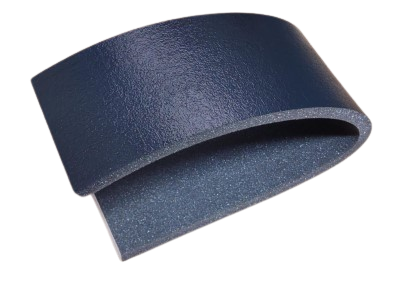

Titan 0277371 Fan Noise Foam

Item No: 16

Part #: 0277371

SprayTech part 0277371 is a fan noise foam insert designed to reduce operational noise...

Retail Price: $41.20

You save: $3.13 (7.60%)

Our Price: $38.07

QTY:

Titan 0276598 Foam Seal

Item No: 17

Part #: 0276598

Part number 0276598 is a Foam Seal that provides dust and air filtration for the cooling system on c...

$6.90

QTY:

Titan 0277501 Bracket, Stiffener

Item No: 20

Part #: 277501

Titan 0277501 is a Titan bracket, stiffener for Spraytech CS series sprayers including CS5100, CS810...

$16.70

QTY:

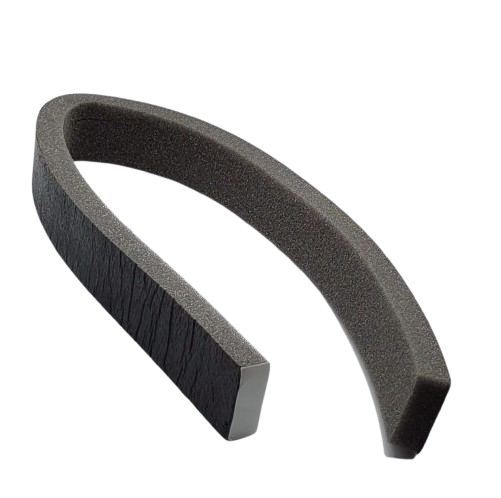

Titan 0277368 Insert Foam

Item No: 21

Part #: 0277368

SprayTech part 0277368 is a foam insert used in compatible CS series sprayers to provi...

$11.10

QTY:

Titan 0277159 Silencer Assembly

Item No: 22

Part #: 0277159

Part number 0277159 is a Silencer Assembly that reduces operational noise from the cooling air exhau...

Retail Price: $114.10

You save: $11.87 (10.40%)

Our Price: $102.23

QTY:

Titan 9805316 Bolt

Item No: 23

Part #: 9805316

Part number 9805316 is a replacement Bolt used in critical assemblies on compatible SprayTech CS-ser...

$1.40

QTY:

Titan 0277469 Turbine Can Seal

Item No: 24

Part #: 0277469

SprayTech part 0277469 is a Turbine Can Seal designed for the air turbine assembly in compatible Spr...

$8.70

QTY:

Titan 9810108 Nut

Item No: 29

Part #: 9810108

The Titan 9810108 Nut is designed to replace Titan 858-601 which ensures strong and secure fastening...

$3.40

QTY:

Titan 0276511 Exhaust Hose Fitting

Item No: 30

Part #: 0276511

Part number 0276511 is an Exhaust Hose Fitting used to connect the air exhaust hose to compatible HV...

$13.80

QTY:

Titan 9881911 Exhaust Hose

Item No: 31

Part #: 9881911

Part 9881911 is an exhaust hose designed to safely route engine exhaust gases away from sprayer comp...

$11.10

QTY:

Titan 9803104 Screw

Item No: 32

Part #: 9803104

Part number 9803104 is a screw component designed for assembly and mounting applications on compatib...

$3.40

QTY:

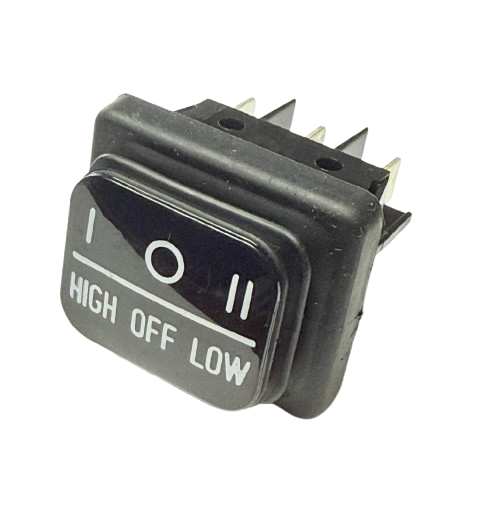

Titan 0524694 Switch

Item No: 34

Part #: 0524694

Titan 0524694 Switch -OEM 'Replaced part # 0524315' It is a Double Pole Double Throw (DPDT) switc...

$28.60

QTY:

Titan 0277389 Foam Tape

Item No: 37

Part #: 0277389

SprayTech part 0277389 is a foam tape used to create a protective seal between the spr...

$3.40

QTY:

Titan 0295960 Circuit Breaker Switch Kit, 15A

Item No: 40

Part #: 0295960

SprayTech part 0295960 is a 15A circuit breaker switch kit used to protect the sprayer’s electri...

Retail Price: $49.40

You save: $3.75 (7.59%)

Our Price: $45.65

Discontinued by Manufacturer

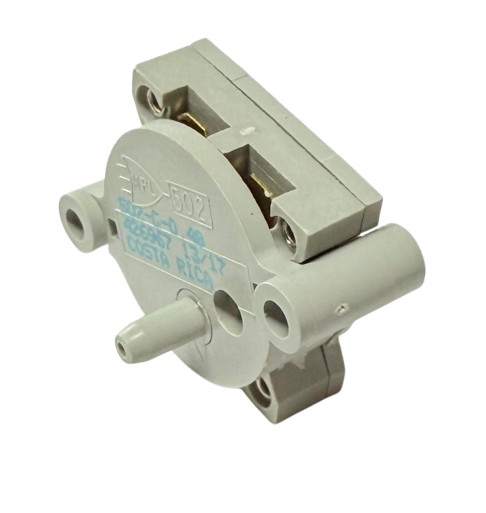

Titan 0277472 Air Flow Switch

Item No: 41

Part #: 0277472

SprayTech part 0277472 is an Air Flow Switch designed for monitoring and controlling air flow in com...

Retail Price: $51.40

You save: $4.27 (8.31%)

Our Price: $47.13

QTY:

Titan 0277475 Air Flow Tube

Item No: 42

Part #: 0277475

SprayTech part 0277475 is an Air Flow Tube designed for directing and measuring air flow in compatib...

$2.90

QTY:

Titan 0275625 Quick release coupling

Part #: 0275625

Quick disconnect female /Quick release coupling *replaced part # 770-240*This is the standard quick...

$25.30

QTY:

Titan 0524405A CapSpray HVLP Whip Air Hose, 3/4" ID x 5 ft

Part #: 0524405A

Titan 0524405A Air Hose Whip Titan 0524405A Air Hose, also known as the Capspray HVLP Whip Air Hose...

Retail Price: $79.40

You save: $6.59 (8.30%)

Our Price: $72.81

QTY:

CS9960 Spray System Parts List

The CS9960 Spray System Parts List includes OEM replacement components for the airflow system, electrical controls, turbine assembly, and structural framework of the Titan CS9960 HVLP spray system.

Built for professional fine-finishing applications, the CS9960 uses a powerful multi-stage turbine system to deliver high-volume, low-pressure airflow for smooth atomization and reduced overspray.

This makes it ideal for cabinetry, furniture refinishing, wood coatings, trim work, and industrial finishing applications.

Key OEM Components

The system contains several critical components that work together to maintain stable airflow, cooling efficiency, and spray consistency.

Important OEM parts include the Titan 0279937 CapSpray Air Filter Set, Titan 0277367 Filter Screen, Titan 0277371 Fan Noise Foam, Titan 0277159 Silencer Assembly, Titan 0275625 Quick release coupling, Titan 0277469 Turbine Can Seal, Titan 0295960 Circuit Breaker Switch Kit, 15A, Titan 0277472 Air Flow Switch, and Titan 0277257 Turbine Assembly.

These components help regulate airflow, reduce vibration and operational noise, protect the turbine from overheating, and maintain reliable electrical performance during continuous spraying operations.

Maintenance & Serviceability

The CS9960 system is engineered for serviceability, allowing individual components such as filters, seals, hoses, switches, and turbine parts to be replaced independently.

Regular inspection and maintenance of these wear items help extend turbine life, improve airflow efficiency, and reduce downtime on professional job sites.

FAQs

Clogged filters, dirty filter screens commonly cause restricted airflow, or blocked ventilation passages. Components like the Titan 0279937 CapSpray Air Filter Set and Titan 0277367 Filter Screen should be cleaned or replaced regularly to maintain proper turbine performance.

Overheating usually occurs when cooling airflow becomes restricted by dirty filters, worn foam seals, or blocked silencer assemblies. Reduced airflow forces the turbine motor to work harder, increasing internal heat buildup during extended operation.

The Titan 0277469 Turbine Can Seal helps maintain proper air pressure inside the turbine housing. If the seal becomes worn or damaged, air leakage can reduce turbine efficiency and negatively affect spray consistency and atomization quality.

The Titan 0295960 Circuit Breaker Switch Kit may trip when the turbine motor overheats, airflow becomes restricted, or excessive electrical load is placed on the system during continuous spraying operations.

The Titan 0277472 Air Flow Switch monitors airflow movement within the turbine assembly and helps maintain proper operational safety. A faulty airflow switch can lead to unstable turbine operation or inconsistent spray performance.
