Start with the model on your sprayer's label or manual: MultiFinish 440 is 0524029, FlexSpray Handheld is 0524093, FlexSpray Pro Kit is 2443773B. Open that model's diagram page, find the numbered callout for the part, and add the part shown. If your model has no page, call (713) 931-0006 with the model and serial number.
Identify the machine

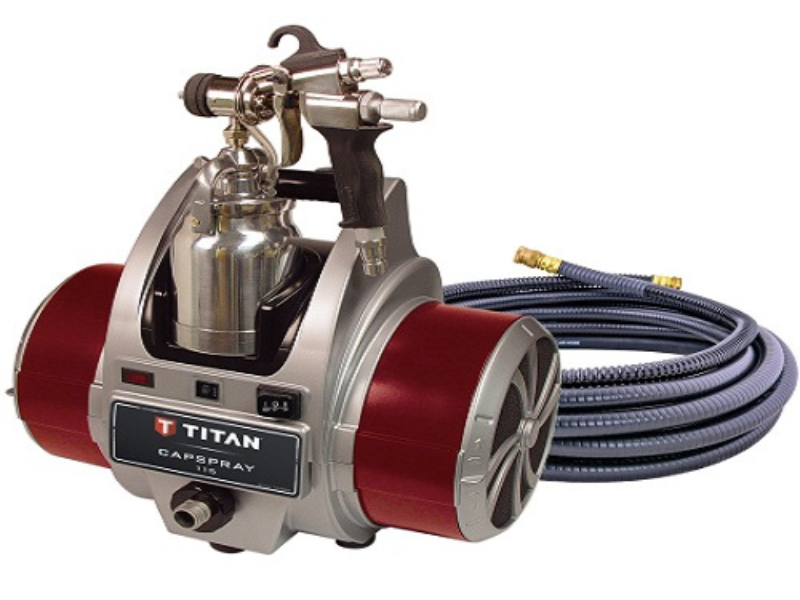

Fine finish equipment from Titan covers very different machines: a corded handheld with a one-quart cup, a cordless handheld, airless pumps, an air-assisted airless cart with its own compressor, and older HVLP turbine kits. They share almost no parts, so the first job is to pin down which one you have. These are the model numbers you will meet:
- 0524029: MultiFinish 440, the electric air-assisted airless system with an onboard compressor.
- 0524093: FlexSpray Handheld, the corded 120 V handheld with the FlexFinish and FineFinish front ends.
- 2443773B: FlexSpray Pro Kit, 18 Volt, the cordless handheld.
- 0508090: ED655 Plus, a compact airless finishing pump.
- 0508074A: AirCoat AAA-Complete, the air-assisted airless system that uses the GM 3600 gun.
Read the model off the label on the unit and match it against the manual for that model. We cannot tell you where the label sits on every machine, so check the unit and the manual's first pages. If the sprayer is secondhand and the label is gone, compare the gun, the cup or the pump end with the diagram pages below, or describe the machine to our parts team. Keep the model and serial number written down, because that is what our parts team asks for on the phone at (713) 931-0006.
Where each model sits on the site
The fine finish group lives under Fine Finishing Sprayer Parts. Within it, the pages split by machine, and some are only hubs that point you on to the real assembly pages.
- MultiFinish 440: the Spray System page is the starting point. The parts themselves sit on five assembly pages: fluid section, compressor, drive, main assembly and cart.
- FlexSpray Handheld: the parts list page holds the gun body, front end parts and seals, and an accessories page holds the cup, filters and needle kits.
- GM 3600 gun: two pages, one for the reversible tip gun and one for the flat tip gun.
- ProFinish: the ProFinish HVLP page is the entry for the turbine, cart, pressure pot and cup pages, and the AS1130 airless pump has its own paint pump, hopper, final assembly and LX-80 gun pages.
- CapSpray Maxum guns: separate pages for the Maxum II and Maxum Elite gun and cup assemblies.
Two models in the list above do not have a page of their own in this group. The FlexSpray Pro 18V pages in the group carry no parts, and ED655 Plus and AirCoat are not broken out here, apart from the GM 3600 gun pages that the AirCoat shares with the MultiFinish. For anything else on those machines, phone with the model number rather than guessing a part from a neighbouring diagram.
Quick lookup: model, diagram page and an example part
| Model | Diagram page | Example part on that page |
|---|---|---|
| MultiFinish 440 (0524029) | Fluid Section Assembly | 704-551A Piston Rod |
| MultiFinish 440 (0524029) | Compressor Assembly | 0524378 Filter Element, Compressor |
| FlexSpray Handheld (0524093) | Parts List | 0529911 Gun Body |
| GM 3600 reversible gun | Reversible Tip Gun | 695-415 Reversible Tip |
| GM 3600 flat tip gun | Flat Tip Gun | 0526209 AirCoat Tip ACF 9/20 |
| ProFinish C-100 gun | C-100 Gun Parts | 773-153 Needle/Nozzle Set |
| ProFinish AS1130 pump | Paint Pump Assembly | 0288771 Diaphragm Assembly |
| ProFinish TS40 / TS50 turbine | TS40 TS50 Turbine | 773-655 Filter 2 Pack |
Each row is one example. The page listed holds many more parts than the one shown.
Reading a diagram page
A diagram page shows an exploded drawing with numbered callouts, and the list beside it ties each callout number to a part. The method is the same on every page: find the part in the drawing, read its callout number, find that number in the list, and add that part to your cart. The part number printed on the site is the one to order, and part names sometimes carry a note such as a number the part replaces, so read the whole name.
Pick the right page of a pair before you read the callout. On the GM 3600 gun, callout 24 is the reversible tip (695-415) on the reversible page, but on the flat tip page the same callout is the AirCoat Tip ACF 9/20 (0526209). The rest of the two pages is mostly the same, which makes it easy to open the wrong one. The same applies to the MultiFinish 440: its fluid section, drive and compressor are separate pages, so a symptom in the pump end sends you to the fluid section page and not the main assembly page.
Use the manual with the diagram
The diagram tells you what the part is. The manual tells you how to take the sprayer apart safely and what the part is meant to do. The manuals page hosts manuals for the Multifinish 440, FlexSpray, FlexSpray Handheld, FlexSpray Pro 18V, ProFinish (AS1130, C-100, gun and TS40 to TS50), AirCoat, and the Helix VR, FR and LP systems. Our diagrams and part numbers are for identification and fitment. They are not a substitute for the manual and its safety warnings for your exact model.
When the part is not on a diagram
The diagram pages are not the whole catalog. Some parts are sold with a fitment note rather than a diagram callout, which is how the site lists the repair parts for the Helix VR, FR and LP plural-component proportioners. Those machines are not fine finish sprayers at all, and there is no Helix parts diagram on the site, so searching the diagrams for them will find nothing. Search by part number, or phone with the model and serial number so our parts team can confirm that the part fits your machine.
The same call settles a few other cases: a part that appears on two diagram pages with different callouts, a machine whose label you cannot read, and a Pro 18V part, since the FlexSpray Handheld parts on the site are for the corded model and are not listed for the cordless one. Delivery details are on the shipping information page.
A starting set of parts from the diagram pages above:
The Short Version
Get the model number from the label, open that model's diagram page, match the numbered callout and order the part number it shows. Check the sibling page when two versions of a gun exist, and phone (713) 931-0006 when your machine has no page or the label is unreadable.
Can't match your sprayer to a diagram?
Call (713) 931-0006 with the model and serial number and our parts team will point you to the right page or part.
