Titan Sprayer Parts · MultiFinish 440
Restore Clean, Controlled Airflow With Correct MultiFinish 440 Compressor Parts
Shop diagram-matched components for the Titan MultiFinish 440 Compressor Assembly, including the compressor, pressure gauge, tubing, filter components, adapters, relief valves, solenoid, circuit breaker, power cord, panel base, and mounting hardware. Confirm the exploded-view callout and exact Titan part number before ordering.
What the MultiFinish 440 Compressor Assembly Contains
The compressor assembly supplies and controls the air used by the MultiFinish 440 air-assisted finishing system. The illustrated assembly includes the compressor, gauge, air tubing, filter assembly and element, adapters, adjustable and fixed relief valves, solenoid, power switch, circuit breaker, terminal block, power cord, strain relief, panel base, plugs, nuts, screws, and related fittings.
These pneumatic and electrical components operate as one system. Restricted filtration can reduce airflow, leaking tubing or adapters can prevent stable pressure, a faulty solenoid can interrupt air delivery, and electrical faults can stop the compressor from operating. Diagnose the full air path before replacing a single component.
Systems Supported by the Compressor Assembly
- Generates the compressed-air supply required for MultiFinish air-assisted atomization.
- Displays and regulates air pressure through the gauge, adapters, tubing, and relief components.
- Filters the air stream to help protect downstream pneumatic parts from contamination.
- Controls airflow electrically through the power switch, solenoid, circuit breaker, terminal block, and wiring components.
- Supports and secures the compressor system through the panel base, strain relief, plugs, nuts, screws, and related hardware.
When Contractors Use This Parts Diagram
- Diagnosing weak, intermittent, or missing atomization air at the spray gun.
- Correcting unstable gauge readings, air leaks, pressure-relief problems, or restricted airflow.
- Replacing a worn compressor, clogged filter element, damaged tube, adapter, or pneumatic fitting.
- Troubleshooting a compressor that will not start, trips its breaker, or fails to respond to the power switch.
- Identifying exact compressor-panel electrical and mounting components before repair.
Common MultiFinish 440 Compressor Assembly Symptoms
Use the operating symptom to locate the likely air, control, filtration, or electrical area, then inspect connected parts before ordering. Disconnect power and relieve pressure before service.
High-Value MultiFinish 440 Compressor Assembly Parts
These major compressor, pressure-control, structural, and electrical components represent common high-value repair areas. Match every product to its category-page item number and exact Titan part number.
Titan 0524543A Compressor
The primary 120V compressor component that generates the air supply used by the MultiFinish 440 system.

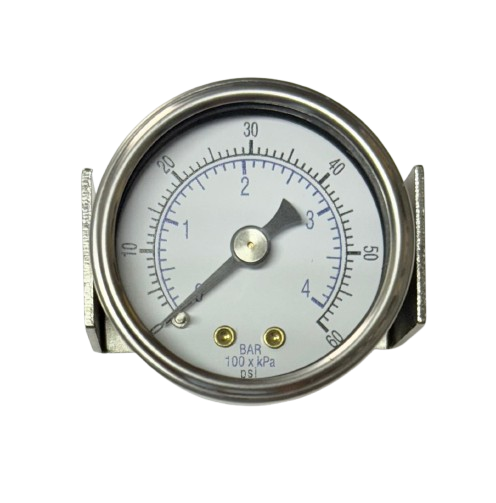

Titan 0524570 Gauge
Displays compressor-system air pressure so operators and technicians can monitor pneumatic performance.

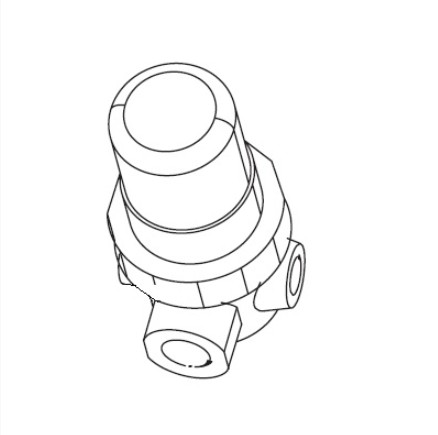

Titan 0524571 Adjustable Relief Valve
Provides adjustable pressure-control and relief functionality within the compressor air system.
Titan 0524534 Compressor Panel Base
Supports and locates the compressor, electrical, pneumatic, and mounting components shown in the assembly.
Titan 0524544 Solenoid 120V
Electrically controls compressed-air flow for dependable MultiFinish air-assisted operation.
Titan 0524568 Circuit Breaker
Provides 6-amp overcurrent protection for the MultiFinish 440 compressor electrical system.
How to Order the Correct MultiFinish 440 Compressor Part
Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.
Record the symptom
Note whether the problem involves no operation, weak airflow, pressure instability, leakage, filtration, or electrical protection.
Verify the system
Confirm the Titan MultiFinish 440 model and identify any voltage, wiring, fitting, or tubing details relevant to the repair.
Match the callout
Locate the component on the compressor exploded view and record its item number and exact Titan part number.
Inspect connected parts
Check tubing, adapters, filters, valves, electrical connections, mounting hardware, and the panel base before ordering.
Maintenance Practices That Protect the Compressor Assembly
- Disconnect electrical power and relieve all stored air and fluid pressure before service.
- Inspect the compressor filter element and filter assembly for contamination, damage, or restriction.
- Check tubing for cracking, abrasion, kinks, heat damage, loose ends, and incorrect routing.
- Inspect adapters, plugs, relief valves, and threaded connections for leakage or damage.
- Monitor gauge response and investigate unstable or implausible readings before continued operation.
- Check the power cord, strain relief, terminal block, switch, circuit breaker, solenoid, and wiring for heat or damage.
- Verify that the compressor and panel base remain securely mounted without abnormal vibration.
Build a More Complete MultiFinish 440 Compressor Repair
Compressor repairs are more reliable when the complete air path is inspected together. When replacing the compressor, check the filter, tubing, adapters, relief valves, gauge, panel base, mounting hardware, and electrical supply components.
When repairing an electrical-control problem, identify the root cause before replacing the circuit breaker, switch, solenoid, or wiring component. Correct part-number matching and a system-level inspection can prevent repeat downtime.
Shop Major MultiFinish 440 Assemblies
Continue through the connected MultiFinish 440 assembly pages when diagnosis extends beyond the compressor system.
Titan MultiFinish 440 Compressor Assembly FAQs
Use these answers to narrow down compressor, airflow, filtration, relief-valve, solenoid, and electrical-control repairs.
