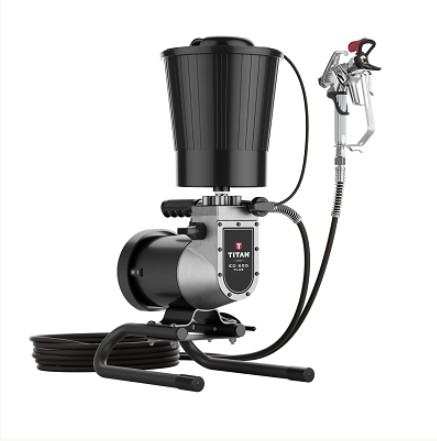

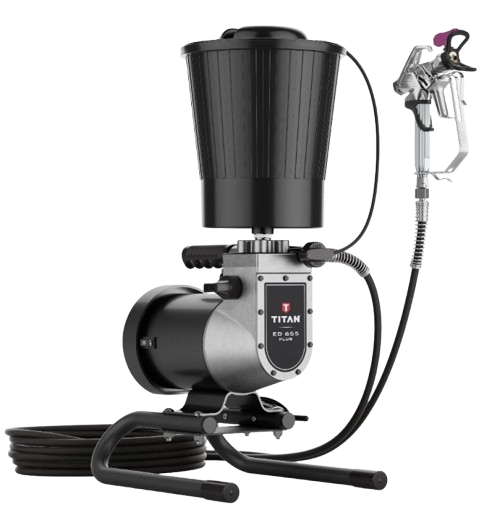

Titan 0508090 ED655 Plus Paint Sprayer
$1,138.87
$1,355.80
Save 16%
Available to Order
Titan Fine-Finish Electric Airless Sprayer
Titan 0508090 ED655 Plus Paint Sprayer is a compact diaphragm airless finishing system delivering 0.35 GPM with a 0.017-inch maximum tip. Its lightweight 27-pound design, 1/2 HP TEFC motor and RX-80 gun support controlled professional fine-finish spraying.
Brand: Titan Part Number: 0508090 Type: Diaphragm Airless Sprayer Application: Fine Finishing
Designed for roughly 20–50 gallons per week, the ED655 Plus is a dedicated fine-finishing machine for contractors who value portability and steady diaphragm-pump operation. Titan specifies an RX-80 gun and 50-foot fluid hose with 3-foot whip.
Quantity
Genuine OEM Part
Fast Shipping
Easy Returns
Output: 0.35 GPM Max Tip: 0.017" Motor: 1/2 HP TEFC Max Hose: 300 ft Weight: 27 lb
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan ED655 Plus is a compact electric diaphragm airless finishing sprayer. Titan specifies 0.35 GPM maximum delivery, a 0.017-inch maximum tip, up to 300 feet of hose, approximately 27-lb machine weight and a 1/2 HP totally enclosed fan-cooled electric motor. Titan literature lists maximum fluid pressure up to 3000 PSI for this configuration. |
| Function | Uses an electrically driven diaphragm pump to pressurize compatible coating material for airless atomization. Unlike conventional piston-pump sprayers, the ED655 platform uses diaphragm-pump operation and is designed as a dedicated finishing system. Its pressure-control system supports controlled material delivery for detailed professional finishing while retaining useful airless production speed. |
| Industrial Applications | Designed for professional fine finishing and approximately 20–50 gallons of material per week. Appropriate applications include cabinets, doors, trim, millwork, furniture, built-ins and other architectural finishing projects where portability, controlled material delivery and a fine airless finish are more important than the high output of a larger production sprayer. |
| Accurate Compatible Titan Machines | Part 0508090 identifies the complete Titan ED655 Plus sprayer and is not a replacement component for another machine. The ED655 Plus belongs to Titan's fine-finishing equipment range. Titan AirCoat and MultiFinish 440 are related fine-finish systems but are separate machines with different operating technologies, accessories and performance specifications. |
| Accurate Part Number | 0508090 — Titan ED655 Plus Airless Paint Sprayer. Some newer Titan catalog tables abbreviate the number as 508090 by dropping the leading zero; Titan operation documentation identifies model 0508090. This is the electric ED655 Plus diaphragm-pump configuration. |
| Compatible Parts & Assemblies | Titan specifies an RX-80 airless spray gun and a 50-foot fluid hose with 3-foot whip for the ED655 Plus. The system accepts compatible standard and fine-finish airless tips within its 0.017-inch maximum-tip limit. Titan's service information identifies ED655 Plus diaphragm kit 278240, inlet valve kit 278242, ball 93635 and seat assembly 278241 as model-specific service components. |
| Related Parts Commonly Serviced Together | Common service areas include the diaphragm, inlet-valve assembly, outlet-valve components, ball and seat assembly, pressure-control components, suction system, fluid hose, whip hose, RX-80 gun, gun filter, tip guard and spray tip. When restoring pressure, prime performance or spray consistency, inspect the fluid-path wear components together rather than replacing a tip alone. |
| Common Problems Solved | Provides a portable alternative to larger production sprayers for detailed finishing jobs. The diaphragm design is suited to controlled fine-finish spraying, while the compact 27-pound chassis makes the system easier to carry between work areas. Serviceable diaphragm and valve components support maintenance when symptoms include poor priming, reduced pressure, pulsation or inconsistent material delivery. |
| Use with Coating Systems | Titan positions the ED655 Plus for fine-finish and architectural coating work, from clear and fine-finish materials through compatible finish-quality latex. The machine is intended for compatible non-abrasive airless coatings within its flow, pressure and 0.017-inch tip limits. Always follow the coating manufacturer's recommendations for thinning, filtration, tip size and application pressure. |
| OEM & Brand Information | Genuine Titan Tool fine-finishing equipment. Model 0508090 is documented by Titan as the ED655/ED655 Plus electric airless diaphragm-pump platform. The machine uses a 1/2 HP TEFC motor and RX-80 airless gun and remains listed by Titan within its current electric airless and fine-finish sprayer categories. |
| Commercial Benefits | The ED655 Plus is particularly useful for contractors who need a dedicated fine-finish machine without transporting a larger production sprayer. Its 27-pound weight, 0.35 GPM output, 0.017-inch tip capacity, RX-80 gun and long-hose capability create a practical combination for cabinet, trim, door, millwork and property-maintenance finishing work. |
Contractor Selection Insight
Choose the ED655 Plus when fine-finish control and portability matter more than high-volume production. Its 0.35 GPM delivery and 0.017-inch tip limit make it particularly well matched to cabinets, doors, trim and similar finishing work. For substantially higher production or larger-tip architectural spraying, select a Titan machine with greater flow and tip capacity rather than oversizing the ED655 Plus application.
FAQ Section
Quick answers for contractors evaluating the ED655 Plus for portable professional fine-finishing work.
