This portable machine-configuration replacement-parts category covers SPEEFLO Admiral models 830-451, 941-421, 941-441, 860-451 and 860-461. Titan documents model-specific combinations of motor-pump assemblies, 928-835 airline control, 590-301 heavy-duty cart, outlet equipment, filtration, bleed lines, siphon hoses and mounting kits.

Contractors, repair shops and industrial maintenance teams should begin with the complete portable model number because shared cart and airline components do not make the motor-pump, outlet, filter, siphon or mounting configurations interchangeable.

Five Verified Portable Models

The page covers one 30:1 model, two 40:1 models and two 60:1 models documented with heavy-duty carts.

Model-Specific Pump Systems

The portable table distinguishes 850-245, 850-185 and 860-559 motor-pump configurations.

Diagnosis-First Service

Troubleshooting references only documented portable-model components and explains why each should be inspected.

Six Active Product Links

The commercial section is limited to six live products actually listed on the supplied page.

Assembly Overview

Every documented portable Admiral model uses airline assembly 928-835 and heavy-duty cart 590-301, but the remaining systems vary. The 30:1 model uses the 850-245 motor-pump group, the 40:1 models use 850-185, and the 60:1 models use 860-559. Outlet equipment, filters, bleed lines, siphon assemblies and mounting kits are assigned by exact model.

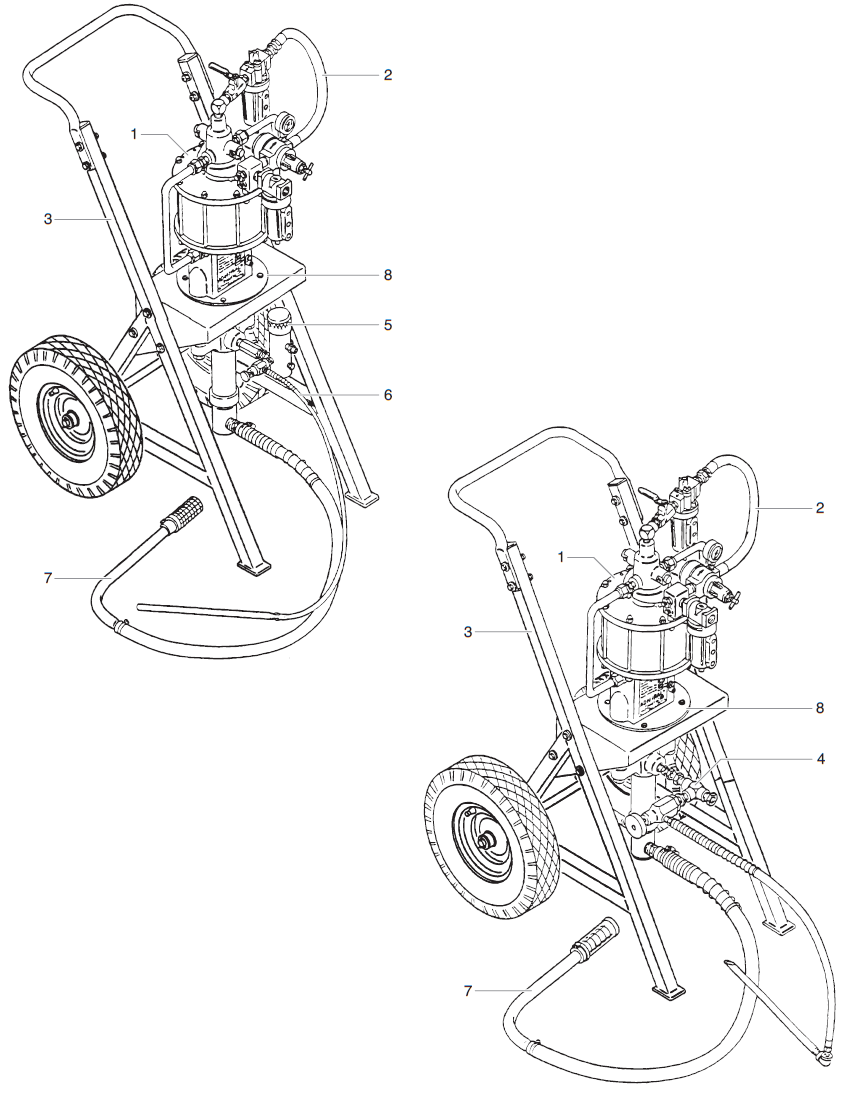

Portable model	Ratio	Motor-pump group	Outlet/filter	Siphon	Mounting kit
830-451	30:1	850-245 / 850-557 / 142-104 / 245-556	840-205	103-807	219-200
941-421	40:1	850-185 / 850-555 / 142-100 / 185-551	840-205	103-810	219-200
941-441	40:1	850-185 / 850-555 / 142-100 / 185-551	920-554	103-807	219-100
860-451	60:1	860-559 / 850-555 / 142-102 / 155-559	—	103-810	219-200
860-461	60:1	860-559 / 850-555 / 142-102 / 155-559	920-605	103-807	219-100

Functions Supported by the Assembly

Pneumatic Power Conversion

The 850-557 or 850-555 air motor converts regulated compressed air into reciprocating movement.

High-Pressure Fluid Delivery

The 245-556, 185-551 or 155-559 fluid pump draws and pressurizes coating material according to the model ratio.

Air Preparation and Control

The shared 928-835 airline assembly provides the documented 3/4-inch air-control and preparation connection.

Portable Material Handling

The 590-301 cart, model-specific siphon hose, outlet system and mounting kit support mobile coating operation.

Service Applications

Use this page for portable Admiral model identification, complete motor-pump replacement, air-motor service, fluid-pump restoration, outlet and filter repair, siphon-system diagnosis, bleed-line service, cart maintenance and mounting-kit confirmation. It supports informational research, troubleshooting and direct parts purchasing without treating all Admiral portable systems as identical.

Troubleshooting Admiral Portable Models

Operating symptom	Inspect first	Why and recommended action
Pump will not cycle	928-835 airline assembly and 850-555 or 850-557 air motor	The airline assembly controls shutoff, regulation, lubrication and moisture separation, while the air motor creates reciprocating motion. Confirm compressor supply, regulator setting, shutoff position, moisture condition and motor movement before replacing either assembly.
Portable unit cycles but will not prime	103-807 or 103-810 siphon hose and assigned fluid pump	An obstructed screen or strainer, loose hose connection, air leak or inlet-valve contamination can interrupt material pickup. Inspect the model-specific siphon assembly and fluid-pump inlet before replacing the pump.
Low coating pressure at the gun	Assigned motor-pump assembly, outlet assembly or outlet filter	Pressure loss can originate from insufficient air, fluid-pump wear, a restricted 920-554 or 920-605 filter, or an outlet connection. Diagnose air supply, filter condition and fluid delivery before ordering a complete motor-pump assembly.
Fluid leaks from the pump section	185-551, 155-559 or 245-556 fluid pump	Upper or lower packing wear, displacement-rod damage or cylinder wear can create leakage. Clean the area, identify the exact leak zone and inspect hard parts before replacing packings or the complete pump.
Air motor cycles unevenly or stalls	850-555 or 850-557 air motor and 928-835 airline assembly	Moisture, poor lubrication, restricted air passages or internal valve wear can cause uneven cycling. Correct air preparation and confirm internal motor symptoms before replacement.
Frequent tip blockage	920-554 or 920-605 outlet filter and 103-series siphon screen or strainer	These components remove contamination before it reaches the gun. Clean and inspect the exact model-specific filter and intake screen before replacing the tip or fluid pump.
Pressure will not relieve correctly	840-209 bleed line assembly with valve	Portable models 941-441 and 860-461 use the documented bleed-line assembly. Inspect the line, valve and outlet connection for blockage or leakage before replacing the assembly.
Cart or pump shifts during operation	590-301 heavy-duty cart and 219-100 or 219-200 mounting kit	Loose, worn or incorrectly matched mounting hardware can affect alignment and stability. Inspect the assigned mounting kit and cart attachment points before replacing structural components.

High-Value Replacement Parts

These six products are active listings on the supplied Admiral portable-model page and correspond to components shown in Titan’s portable model table. Complete-model verification remains necessary before purchase.

Verified live product

Titan 850-185-B Motor Pump Assembly

Complete motor-pump replacement corresponding to the documented 850-185 portable Admiral motor-pump configuration used by 941-421 and 941-441.

View Titan 850-185-B

Verified live product

Titan 850-555A Admiral Air Motor Service

Complete Admiral air-motor service assembly corresponding to the 850-555 motor used in documented 40:1 and 60:1 portable configurations.

View Titan 850-555A

Verified live product

Titan 185-551A Fluid Pump Assembly

Complete fluid-pump assembly corresponding to the documented 185-551 fluid section used by portable models 941-421 and 941-441.

View Titan 185-551A

Verified live product

Titan 155-559A Fluid Pump Assembly

Complete fluid-pump assembly corresponding to the documented 155-559 fluid section used by portable models 860-451 and 860-461.

View Titan 155-559A

Verified live product

Titan 920-554 Outlet Filter Assembly, 50 Mesh

Documented outlet filter assembly assigned to portable Admiral model 941-441.

View Titan 920-554

Verified live product

Titan 840-209A Bleed Line Assembly with Valve

Packaged bleed-line assembly corresponding to documented 840-209 used on portable models 941-441 and 860-461.

View Titan 840-209A

Buying Guide

1. Record the complete model

Use 830-451, 941-421, 941-441, 860-451 or 860-461—not only the Admiral name or pressure ratio.

2. Match the motor-pump group

Confirm 850-245, 850-185 or 860-559 and its documented motor, assembly set and fluid pump.

3. Check outlet and intake equipment

Match the documented outlet/filter, 103-807 or 103-810 siphon assembly and bleed-line requirement.

4. Confirm the mounting kit

Use 219-100 or 219-200 exactly as assigned to the portable model.

Maintenance

Follow Titan’s pressure-relief procedure before service. Inspect grounded high-pressure hoses before use, maintain clean and regulated compressed air, service the 928-835 airline components, keep the assigned siphon screen or strainer clean, clean model-specific outlet filters, inspect bleed-line operation and check cart and mounting hardware for looseness or wear.

Repair Planning

Record the complete model, ratio, motor-pump assembly, air motor, assembly set, fluid pump, outlet/filter, bleed line, siphon hose and mounting kit. Photograph the installed configuration before disassembly, identify the exact symptom and decide whether a serviceable component or complete assembly provides the appropriate verified repair.

Fast Navigation

Admiral Portable Models FAQs

What type of page is Admiral Portable Models Parts?

It is a portable machine-configuration replacement-parts category with an exploded model parts table. It groups model-specific motor-pump, airline, cart, outlet, filter, bleed, siphon and mounting assemblies.

Which Admiral portable models are covered?

Titan documents 830-451, 941-421, 941-441, 860-451 and 860-461 as portable models equipped with heavy-duty carts.

Which pressure ratios are represented?

Model 830-451 is 30:1; models 941-421 and 941-441 are 40:1; models 860-451 and 860-461 are 60:1.

Which motor-pump assembly fits model 830-451?

Titan documents motor-pump assembly 850-245, air motor 850-557, assembly set 142-104 and fluid pump 245-556 for model 830-451.

Which motor-pump assembly fits models 941-421 and 941-441?

Titan documents motor-pump assembly 850-185, air motor 850-555, assembly set 142-100 and fluid pump 185-551 for both 40:1 portable models.

Which motor-pump assembly fits models 860-451 and 860-461?

Titan documents motor-pump assembly 860-559, air motor 850-555, assembly set 142-102 and fluid pump 155-559 for both 60:1 portable models.

Do all portable Admiral models use the same air assembly and cart?

Yes. Titan documents 928-835 airline assembly and 590-301 heavy-duty cart across all five portable models.

Which models use outlet filter 920-554 or 920-605?

Model 941-441 uses outlet filter 920-554. Model 860-461 uses outlet manifold filter 920-605.

Which models use bleed line assembly 840-209?

Titan documents 840-209 on portable models 941-441 and 860-461.

Which siphon assemblies are used?

Models 830-451, 941-441 and 860-461 use 103-807 with a filter screen. Models 941-421 and 860-451 use 103-810 with a strainer.

How do I choose between mounting kits 219-100 and 219-200?

Titan assigns 219-100 to 941-441 and 860-461. It assigns 219-200 to 830-451, 941-421 and 860-451.

Why must the full portable model number be checked before ordering?

The five models share some components but use different motor-pump assemblies, outlet arrangements, filters, siphon assemblies and mounting kits. The complete model prevents cross-configuration ordering errors.

Identify the Correct Portable Admiral Part

Match the complete portable model to Titan’s documented motor-pump, outlet, filter, siphon and mounting configuration before ordering. Similar pressure ratios do not guarantee identical components.

Search using:

Complete SPEEFLO Admiral portable model number
30:1, 40:1 or 60:1 ratio
Assembly name, diagram item number or Titan part number
Operating symptom or component name
