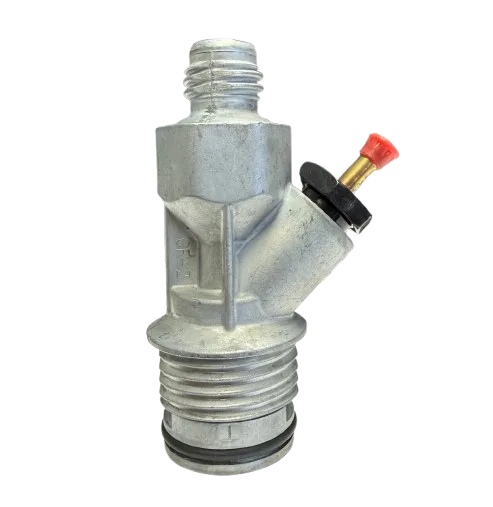

Titan part 759-379 is an inlet valve assembly used to control the flow of material into the pump. This assembly contains a ball and seat that creates a one-way seal, allowing fluid to enter the pumping chamber during the intake stroke while preventing backflow during the pressure stroke. When the inlet valve wears or becomes contaminated, the sprayer may lose prime, surge, or fail to build pressure. Replacing this assembly restores proper fluid intake and pumping efficiency on compatible Graco units.
| Part Number | 759-379 |
|---|---|
| Part Description | Inlet Valve Assembly |
| Brand | Graco |
| Fits | PowrLiner series |
| Condition | New |
The Graco 759-379 Inlet Valve Assembly is a check valve located at the bottom of the pump. It consists of a precision ball and seat that work together to create a one-way seal. During the upward stroke of the piston, this valve opens to draw fluid from the supply into the pump chamber. During the downward pressure stroke, the valve closes tightly to prevent fluid from being pushed back out through the inlet. This alternating action is fundamental to the pumping process.
Over time, the ball and seat can wear due to abrasives in the material being sprayed. Hard particles can create grooves or pits in the sealing surfaces, preventing the valve from closing completely. When this happens, fluid slips back through the inlet during the pressure stroke, reducing output and causing pressure fluctuations. The sprayer may struggle to prime, run rough, or lose pressure intermittently. Replacing the complete inlet valve assembly restores a positive seal, allowing the pump to draw and hold material efficiently. This is a common maintenance item for sprayers used with textured materials or abrasive coatings.
| One-way flow control | Allows fluid to enter the pump while preventing backflow |
|---|---|
| Prime retention | Maintains fluid in the pump chamber between strokes |
| Pressure consistency | Helps maintain steady output by preventing loss during pressure stroke |
| Loss of prime | Sprayer runs but will not draw material from the bucket |
|---|---|
| Pressure surging | Fluctuating pressure during operation indicating valve slip |
| Slow priming | Takes an unusually long time to establish prime |
| Visible wear | Grooves, pits, or damage visible on the ball or seat |
Graco part 759-379 is compatible with the following Graco PowrLiner sprayers. Always confirm fitment using the correct parts diagram for your exact model and revision.
| Graco Model | Component |
|---|---|
| PowrLiner 800 | Inlet valve assembly |
| PowrLiner 550 GB_D_F | Inlet valve assembly |
Pump performance issues are often tied to more than one component. When servicing the inlet valve, these parts are commonly inspected at the same time.
The outlet valve works in conjunction with the inlet valve and should be inspected for wear.
Worn packings can cause pressure loss that may be mistaken for valve issues.
A clogged strainer restricts flow and can cause cavitation that damages valves.
