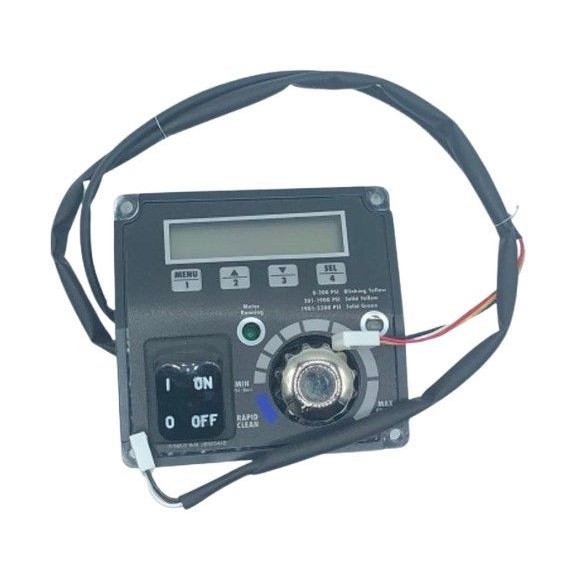

Titan 805-225A Complete Control Panel Assembly

Name: Titan 805-225A Complete Control Panel Assembly
Brand: Titan
SKU: 805-225A
Price: 293.01 USD
Availability: InStock

$293.01

$343.10

Save 15%

Available to Order

Part #: 805-225A

Titan Operator Controls & Display Components

Restore your operator interface with the Titan 805-225A Complete Control Panel Assembly, specified for selected Impact 640 and Impact 640I configurations. The documented assembly includes the Digi-Trac display and designated panel controls. Confirm the exact machine revision and electrical configuration before ordering this replacement.

Brand Titan

Part Number 805-225A

Product Type Complete Control Panel

Application Specified Impact 640 / 640I

Fitment Note: Check the individual model column in your parts list. Do not automatically extend 805-225A compatibility to Impact 640IA or legacy Titan 640i machines.

Quantity

Buy Now

Genuine OEM Part Fast Shipping Easy Returns

Titan Control Panels & Digi-Trac Display Assemblies

Complete Your Repair with Titan 805-225A Complete Control Panel Assembly

Bring the designated operator controls and display together with the Titan 805-225A Complete Control Panel Assembly. When diagnosis supports replacement of the panel assembly, select it by the exact machine reference and electrical configuration. Careful identification helps match the replacement to the installed controls before service begins.

Brand Titan

Part Number 805-225A

Product Type Complete Control Panel Assembly

Documented Display Digi-Trac

Titan 805-225A Technical & Ordering Details

Product Overview	Replacement operator-panel assembly with the designated controls, indicator, and display components.
OEM Brand & Accurate Part Number	Titan 805-225A. Preserve the A suffix when checking the replacement reference.
Function	Provides the specified operator interface for power switching, pressure adjustment, and display information within the compatible sprayer system.
Compatible Machines	Titan Impact 640 and Impact 640I configurations specified in service manual 2421885F. The older Impact 640 owner’s manual 805-911N also lists this assembly.
Impact 640IA Distinction	The cited service revision assigns 805-263A to Impact 640IA. Confirm the exact model column rather than treating 640, 640I, and 640IA as interchangeable.
Assembly Definition	Listed at main-assembly item 17, including component positions 24–31. See the contents table below.
Compatible Parts & Assemblies	The designated machine main assembly and its specified electrical connections. Verify the installed controller, sensing system, and wiring against the exact electrical schematic.
Industrial Applications	Control-panel maintenance for compatible equipment used in renovation, facility painting, property upkeep, and other work permitted by the complete sprayer.
Commercial Use & Benefits	Provides an assembly-level repair option for contractors, rental operators, maintenance departments, and service workshops when replacing the complete panel is appropriate.
Related Parts Commonly Inspected	Panel mounting points, electrical connectors, wiring insulation, pressure-sensing components, motor controller, and protection devices according to the diagnosed fault.
Common Problems Addressed	Confirmed faults or damage within the panel assembly. Display, starting, and pressure-adjustment symptoms may originate elsewhere and require diagnosis before replacement.
Coating-System Relationship	Restores the specified control arrangement without increasing pump output, maximum pressure, supported tip size, or coating compatibility.
Ordering Guidance	Confirm the full model, serial number, voltage, existing panel reference, and service revision. Verify the current supplied assembly where individual component references have changed.

Documented Assembly Contents

Titan defines the complete panel as including the eight component positions below. Confirm the current supplied configuration before ordering individual service parts.

Item	Titan Part Number	Component	Qty.
24	805-844	Control panel cover with label	1
25	700-176	Nut with seal	1
26	704-598	Set screw	1
27	805-354	Control knob	1
28	9850936	Switch	1
29	805-401	Digi-Trac display	1
30	0508579 / 508579	Potentiometer, as listed in service manual 2421885F	1
31	0522007 / 522007	LED assembly	1

Revision note: owner’s manual 805-911N lists potentiometer 800-094A at item 30. This difference does not independently establish interchangeability with 0508579. Verify the required current component with the exact machine and assembly reference.

The separately listed motor controller, pressure sensor, fuse, and panel-to-machine mounting screws are outside the documented included range.

What Does the Complete Control Panel Do?

The panel groups the specified operator controls and display components into one assembly. It works within the complete electrical and pressure-control system.

An assembly replacement should follow diagnosis. A display symptom or irregular pressure response does not, by itself, establish that every panel component is faulty.

Inspection & Replacement Guidance

1. Diagnose the fault. Follow the machine’s troubleshooting procedure and evaluate related wiring and sensing components.

2. Confirm the configuration. Match the existing assembly to the individual model column and applicable service revision.

3. Prepare the equipment. Follow the manufacturer’s pressure-relief, electrical-isolation, and stored-energy precautions.

4. Follow the electrical documentation. Use qualified service personnel and preserve the specified connections, grounding, and wire clearances.

5. Verify the repair. Refit all required covers and complete the manufacturer’s service checks before returning the sprayer to work.

Match the Assembly to Your Equipment

Order Titan 805-225A Complete Control Panel Assembly

Choose Titan 805-225A from AllTitanParts after confirming the correct assembly reference. For compatibility assistance, provide the complete model, serial number, voltage, and clear photographs of the existing panel and identification markings.

Frequently Asked Questions

What is Titan 805-225A?

It is the complete operator-panel assembly specified for the documented machine configurations.

Does it fit Impact 640IA?

The cited service revision specifies a different assembly for that configuration. Check the exact model column before ordering.

Is the Digi-Trac display included?

Yes. The manufacturer’s included component range covers the display position. Confirm the current supplied package with the supplier.

Does Complete include the motor controller?

The motor controller is separately identified outside the documented panel contents.

Can individual panel parts be serviced?

Titan assigns individual component references. Check the correct revision and current availability before deciding between a component repair and complete assembly replacement.

Will a new panel fix low pressure?

Only when diagnosis identifies the panel as the cause. Pump wear, filters, valves, sensing components, and other electrical faults can also affect pressure.

No reviews yet. Be the first to review this product!
