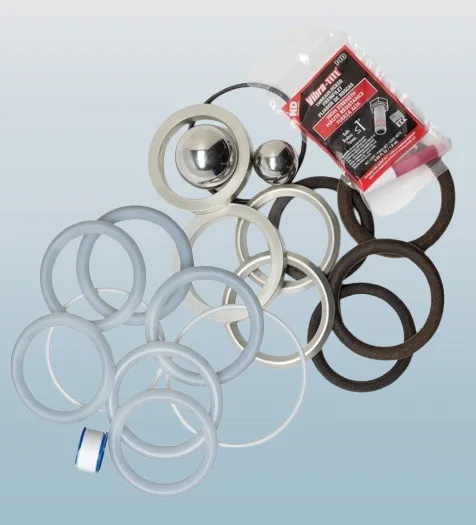

Hydra part 315-050 is a pump service minor kit containing the essential wear components needed for routine maintenance on compatible Hydra M and Hydra Pro series airless paint sprayers. This kit includes seals, o-rings, and packing that wear over time during normal operation. Servicing the pump with this kit restores pressure consistency, reduces bypass, and extends the service life of the pumping system.
| Part Number | 315-050 |
|---|---|
| Part Description | Pump Service Minor Kit |
| Brand | Hydra |
| Fits | Hydra M and Hydra Pro series |
| Condition | New |
The Hydra 315-050 pump service minor kit contains the critical wear components required to perform routine maintenance on the fluid section of compatible Hydra M and Hydra Pro series airless paint sprayers. This kit is designed for preventive maintenance intervals or when early signs of pump wear begin to affect performance. The components included address the most common wear points in the fluid section, allowing operators to restore pumping efficiency without replacing the entire pump assembly.
During normal operation, the pump's seals, packings, and o-rings experience gradual wear from the abrasive nature of paint, exposure to solvents, and the constant reciprocating motion of the piston or rod. As these components degrade, the pump may exhibit reduced pressure output, increased bypass, erratic spray patterns, or difficulty priming. In more advanced cases, material may begin leaking past the packing, visible as seepage from the fluid section. Addressing these symptoms promptly with the 315-050 minor kit helps prevent more extensive damage to the cylinder or piston that would require a major repair or complete pump replacement.
This minor service kit includes the upper and lower packing, vee packing, o-rings, and seals necessary to reseal the fluid section. Installation requires disassembly of the pump fluid section, removal of the worn components, and careful reassembly with the new parts. Proper lubrication during installation is recommended to prevent initial wear and ensure proper seating of the new seals. Operators with mechanical experience can typically perform this service in the field, reducing downtime compared to sending the unit to a service center.
Establishing a regular service interval based on hours of operation or material usage is recommended for optimal pump life. Facilities spraying abrasive coatings or operating at high pressures may require more frequent minor kit replacements. Keeping a 315-050 kit on hand allows maintenance to be performed immediately when symptoms appear, minimizing unplanned downtime. When servicing the pump, also inspect the piston or rod for scoring or damage, as a damaged piston will compromise the life of new seals and may require additional repair beyond the minor kit.
| Seal restoration | Replaces worn packings and o-rings that cause pressure loss |
|---|---|
| Pressure recovery | Restores consistent output pressure and reduces material bypass |
| Leak prevention | Eliminates fluid section seepage caused by degraded seals |
| Pressure loss | Sprayer struggles to maintain pressure or fails to reach operating pressure |
|---|---|
| Excessive bypass | Fluid recirculates excessively with reduced output at the gun |
| External leakage | Visible paint or fluid seepage from the pump fluid section |
| Preventive maintenance | Routine service based on hours of operation or material usage |
Hydra part 315-050 is compatible with the following models. Always confirm fitment using the correct parts diagram for your exact machine.
| Model | Component |
|---|---|
| Hydra M and Hydra Pro 2000_4000 | Pump service minor kit |
| Hydra M and Hydra Pro Super | Pump service minor kit |
| 0528925N_2000_4000 | Pump service minor kit |
When performing a minor pump service, these related components are often inspected or replaced at the same time to ensure complete repair and reliable operation.
Inspect the piston rod for scoring, pitting, or wear that would damage new seals. Replace if surface is compromised.
Check the cylinder bore for scoring or excessive wear that may prevent proper sealing.
Replace or clean the inlet filter and pump screen to prevent contaminants from damaging new seals.
