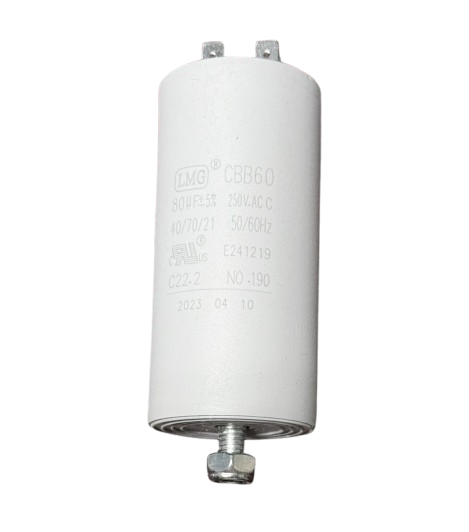

Titan 2402476 Capacitor

Part number 2402476 is a replacement Capacitor specifically engineered for the Titan Elite 3000 high-pressure airless paint sprayer. This electrical component, rated at 80 microfarads and 250 volts, is mounted within the terminal box of the motor assembly. The capacitor serves a critical function in the sprayer's electrical system by providing the necessary phase shift and torque to start the motor and keep it running smoothly under load. When the sprayer is powered on, the capacitor stores electrical energy and releases it to the motor windings, creating the rotating magnetic field required to overcome initial inertia and bring the pump up to operating speed.

The Elite 3000 troubleshooting manual identifies a failed capacitor as a primary cause when the unit does not start after being connected and switched on. Symptoms of capacitor failure include a complete lack of motor response, a humming sound without rotation, or the motor running slowly and failing to reach full speed. Access to the capacitor requires removing the top cover, secured by five screws of varying lengths, and locating the component within its housing. A 13mm wrench is used to loosen the retaining nut, allowing access to the three spade connectors that must be carefully disconnected. Due to the risk of electrical shock, the sprayer must be unplugged for at least 20 minutes before service to allow the capacitor to discharge fully.

Capacitors are subjected to electrical stress, heat, and age-related degradation. Failure modes include open circuits, short circuits, loss of capacitance, and physical bulging or leakage of internal electrolyte. A failed capacitor prevents the motor from starting or causes erratic operation, rendering the sprayer unusable. Replacement with genuine 2402476 capacitor restores proper motor starting torque and ensures reliable operation of the Elite 3000 for professional painting applications.
