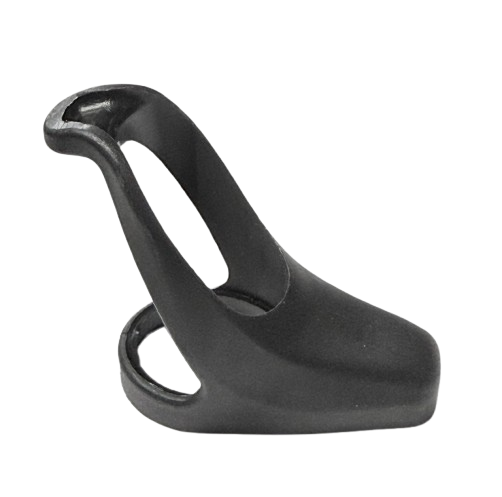

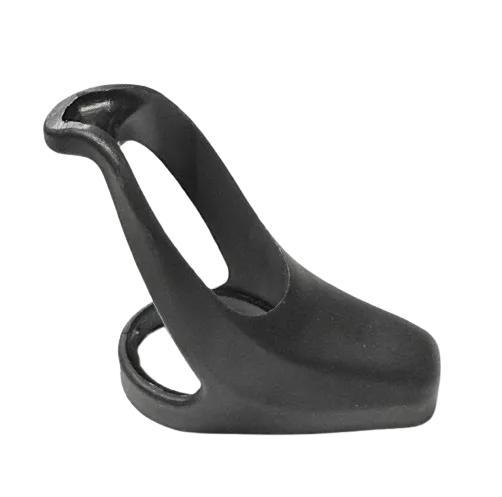

Titan 0538303 Collar Assembly

$2.60
Available to Order
Part #: 538303
Titan RX-80 Spray Gun Replacement Parts

Restore the designated mechanical assembly of your spray gun with the Titan 0538303 Collar Assembly. Listed for the Titan RX-80 airless spray gun, this original equipment replacement component provides a targeted repair option when the installed collar assembly is damaged, worn, or unsuitable for continued service.

MANUFACTURERTitan
PART NUMBER0538303
COMPONENTCollar Assembly
COMPATIBILITYTitan RX-80
Function: Collar component within the designated RX-80 mechanical assembly.
Parts Diagram: RX-80 Item 15.
Related Components: Rear housing, retractor plate, ring clip and gun handle.
Ordering: Titan 0538303 Collar Assembly.

Fitment & Safety: Confirm the RX-80 spray gun and Item 15 parts diagram reference before ordering. Relieve all fluid pressure before disassembling the gun.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan RX-80 Airless Spray Gun Parts

Titan 0538303 Collar Assembly for RX-80

Maintain the manufacturer's specified mechanical assembly with the Titan 0538303 Collar Assembly. Identified as Item 15 in the Titan RX-80 exploded parts diagram, this original equipment replacement component provides a targeted repair solution when the existing collar is damaged, deformed, worn or otherwise unsuitable for continued service.

MANUFACTURERTitan
PART NUMBER0538303
DIAGRAM ITEM15
VERIFIED FITMENTTitan RX-80

Titan 0538303 Technical & Ordering Details

Product Overview Replacement collar assembly for the Titan RX-80 airless spray gun.
Manufacturer Titan
OEM Part Number 0538303
Official Description Collar Assembly
Manufacturer-Verified Compatible Spray Gun Titan RX-80 Airless Spray Gun
RX-80 Parts Diagram Reference Item 15
Applicable Configurations RX-80 two-finger and four-finger trigger configurations covered by the manufacturer parts diagram.
Component Category Airless spray gun mechanical collar and retaining hardware.
Primary Function Provides the designated collar component within the RX-80 spray gun's mechanical assembly.
Related Rear Housing Titan 0538308, Item 11.
Related Retractor Plate Titan 0538312, Item 13.
Related Ring Clip Titan 580120, Item 14.
Related Gun Handle Titan 0538302, Item 16.
Related Swivel Titan 0538205, Item 18 in the referenced RX-80 manual revision.
Related Seal Titan 9970123, Item 17 in the referenced RX-80 manual revision.
Related Handle Seal Titan 560-038, Item 21 in the referenced RX-80 manual revision.
Material & Finish Exact material grade and surface finish are not specified in the referenced manufacturer parts list.
Dimensions Manufacturer dimensions are not established in the referenced parts documentation.
Package Contents Collar assembly replacement part. Additional included hardware, if any, should be confirmed against the current sales package.
Common Replacement Reasons Damaged, cracked, deformed, excessively worn or missing collar assembly.
Industrial Applications Professional airless painting, contractor spray gun servicing, residential painting and commercial coating maintenance.
Coating Systems Compatible airless coating systems equipped with the Titan RX-80 spray gun.
OEM & Brand Titan original equipment replacement component.
Commercial Benefits Supports component-level repair of an otherwise serviceable RX-80 gun without unnecessary replacement of the entire spray gun.
Ordering & Safety Confirm the installed RX-80 spray gun and Item 15 reference. Follow Titan's pressure-relief and service procedures before disassembly.

What Does the Titan 0538303 Collar Assembly Do?

The Titan RX-80 airless spray gun contains a series of interconnected mechanical components, including the rear housing, retractor plate, ring clip, collar assembly and gun handle. Each component has a designated location in the manufacturer exploded parts diagram.

The collar assembly forms part of this mechanical arrangement. It is identified as a separate service component, allowing technicians to replace the collar when damage or wear is confirmed without automatically replacing adjacent parts.

Because the manufacturer parts list does not provide a detailed engineering description of the collar's internal construction, its exact retention geometry and component interfaces should be checked against the physical gun and the appropriate service instructions rather than assumed from the product name alone.

Titan RX-80 Collar Assembly & Related Components

Item Part Number Component Description Ordering Relationship
15 0538303 Collar Assembly This product
11 0538308 Rear Housing Separate listed component
12 226-001 Lock Nut Separate listed component
13 0538312 Retractor Plate Separate listed component
14 580120 Ring Clip Separate listed component
16 0538302 Gun Handle Separate listed component
17 9970123 Seal Separate listed component
18 0538205 Swivel Separate listed component
21 560-038 Handle Seal Separate listed component
Important ordering note: This table shows separately listed RX-80 service components, not the internal contents of Titan 0538303. Confirm the current collar assembly package contents before assuming any adjacent hardware is included.

Verified Titan Spray Gun Compatibility

Spray Gun Configuration Manufacturer Reference
Titan RX-80 Two-finger trigger Item 15
Titan RX-80 Four-finger trigger Item 15

Titan RX-80 is the documented compatible spray gun family. RX-Pro and other Titan spray gun models are not established as compatible with this part number by the referenced documentation. Verify the actual installed gun rather than relying only on the sprayer machine model.

Common Collar Assembly Problems & Replacement Symptoms

Physical Damage

Cracks, fractures or impact damage may require replacement of the collar assembly.

Excessive Wear

Visible deterioration of the component should be evaluated during spray gun service.

Incorrect Seating

A damaged or incorrectly installed collar may interfere with proper assembly.

Related Hardware Damage

Inspect surrounding retaining and housing components when the collar is being serviced.

A sticking trigger, poor fluid shutoff or coating leakage is not proof of a defective collar. Internal seals, trigger components and other hardware may be responsible. Diagnose the assembly before replacing parts.

Installation & Safety Guidance

1. Relieve pressure. Follow Titan's complete pressure-relief procedure before opening or disassembling the spray gun.

2. Disable the equipment. Turn off the sprayer, secure the trigger and disconnect the power source as directed by the operating manual.

3. Identify the correct component. Confirm Titan 0538303 and Item 15 in the applicable RX-80 parts diagram.

4. Inspect surrounding parts. Check the rear housing, retractor plate, ring clip, handle and associated seals for damage.

5. Follow the service instructions. Use the manufacturer-specified disassembly sequence and appropriate tools. Do not force components apart.

6. Install the replacement collar. Position the correct component and reassemble associated hardware according to Titan's instructions.

7. Verify mechanical operation. Confirm the trigger and trigger lock operate correctly while the gun remains depressurized.

8. Complete safety testing. Perform the manufacturer-prescribed inspection and functional checks before returning the gun to service. Never attempt to locate a high-pressure leak with your hand.

Related Titan RX-80 Replacement Parts

Titan 0538308 Rear Housing

RX-80 housing component identified as Item 11.

Titan 0538312 Retractor Plate

Mechanical retraction component identified as Item 13.

Titan 580120 Ring Clip

Retaining hardware identified as Item 14.

Titan 0538302 Gun Handle

RX-80 handle component identified as Item 16.

Titan 0538205 Swivel

Spray gun swivel component identified as Item 18 in the referenced manual.

Titan RX-80 Gun Housing & Mechanical Parts

Buy Titan 0538303 Collar Assembly

Order Titan 0538303 from AllTitanParts for RX-80 airless spray gun repairs. Match the component to Item 15 in the manufacturer parts diagram and restore the designated collar assembly using the correct Titan service procedure.

Frequently Asked Questions

What is Titan 0538303 Collar Assembly?

It is the manufacturer-listed collar assembly for the Titan RX-80 airless spray gun, identified as Item 15 in the official exploded parts diagram.

Which Titan spray gun uses part 0538303?

Titan identifies 0538303 for the RX-80 spray gun. Confirm the installed gun and its parts documentation before ordering.

Does Titan 0538303 include the rear housing or ring clip?

Titan lists the rear housing and ring clip under separate part numbers. Their inclusion with the collar assembly is not confirmed by the parts diagram.

Is Titan 0538303 compatible with RX-Pro?

The documented application is Titan RX-80. RX-Pro compatibility has not been established for this part number and should not be assumed.

When should I replace the collar assembly?

Replace it when inspection confirms damage, deformation, excessive wear or another defect that prevents proper assembly. Follow Titan's service and pressure-relief instructions.
