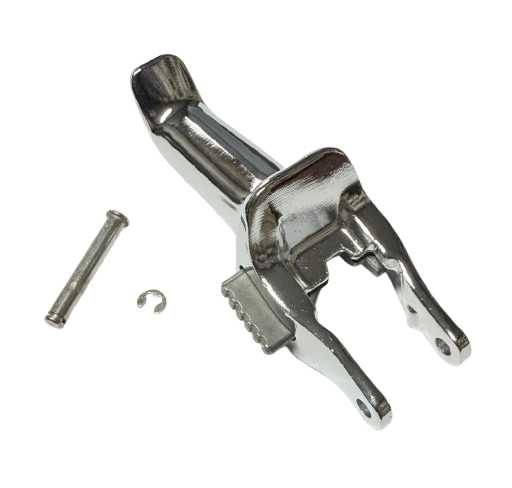

Titan 0538224 Trigger and Lock Assembly

$20.90
Available to Order
Part #: 538224
Titan Spray Gun Trigger & Safety Components

Restore proper trigger operation with the Titan 0538224 Trigger and Lock Assembly. This replacement assembly services the designated trigger and locking mechanism on compatible Titan spray guns, supporting controlled trigger movement and engagement of the trigger lock when the original components are worn, damaged, or malfunctioning.

MANUFACTURER Titan
PART NUMBER 0538224
PRODUCT TYPE Trigger & Lock Assembly
APPLICATION Compatible Titan Spray Guns
Function: Services the trigger and trigger-lock mechanism.
Repair Application: Worn, damaged, or malfunctioning spray gun trigger assemblies.
Ordering: Titan 0538224.
Fitment & Safety: Confirm the exact spray gun model and parts diagram before ordering. A malfunctioning trigger lock is a safety concern; do not operate the spray gun until the mechanism has been properly repaired and tested.
Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Titan RX-80 & RX-Pro Spray Gun Repair Parts

Titan 0538224 Two-Finger Trigger and Lock Assembly

Repair the trigger mechanism of your compatible airless spray gun with the Titan 0538224 Trigger and Lock Assembly. Designed for the two-finger trigger configuration used on Titan RX-80 and RX-Pro spray guns, this genuine replacement assembly helps restore proper trigger movement and the mechanical trigger-lock function.

MANUFACTURERTitan
PART NUMBER0538224
TRIGGER STYLETwo-Finger
COMPATIBLE GUNSRX-80 / RX-Pro

Titan 0538224 Technical & Ordering Details

Product Overview Two-finger trigger and mechanical trigger-lock replacement assembly.
Manufacturer Titan
Part Number 0538224
Trigger Configuration Two-finger trigger with integrated locking mechanism.
Manufacturer-Documented Compatible Spray Guns Titan RX-80 Airless Spray Gun and Titan RX-Pro Airless Spray Gun, in the specified two-finger configuration.
RX-80 Diagram Reference Item 23 in the RX-80 parts list.
RX-Pro Diagram Reference Item 4 in the RX-Pro parts list.
Primary Function Provides the user-operated trigger mechanism and its mechanical locking function.
Included Components The manufacturer diagrams identify the trigger and lock assembly together with the associated trigger pin and retaining clip. Confirm the current supplied kit contents when ordering.
Related Trigger Pin Titan 538425, with replacement listings also identifying Titan 2405986.
Related Retractor Pin Titan 0538305, separately identified in the RX-80 and RX-Pro diagrams.
Four-Finger Alternative Titan 0538222 Trigger and Lock Assembly. Select according to the desired and approved trigger configuration.
Compatible Assemblies Designated RX-80 and RX-Pro spray gun trigger mechanisms.
Industrial Applications Professional airless painting, residential and commercial coating work, equipment maintenance, and spray gun servicing.
Common Replacement Reasons Broken trigger, damaged locking mechanism, worn pivot components, or trigger movement problems diagnosed within the assembly.
Coating Systems Compatible airless spray systems using the specified RX-80 or RX-Pro spray gun.
OEM & Brand Titan original equipment replacement spray gun component.
Commercial Benefits Supports targeted trigger repairs without replacing an otherwise serviceable complete spray gun.
Safety & Ordering Confirm the gun model and two-finger configuration. Follow the manufacturer's pressure-relief and trigger-lock testing procedures before returning the gun to service.

How Does the Titan 0538224 Trigger and Lock Assembly Work?

The spray gun trigger provides the operator with mechanical control over the gun's valve actuation. Pulling the trigger operates the gun's internal mechanism, allowing pressurized coating material to flow through the spray tip when the system is correctly configured.

The trigger-lock mechanism is designed to prevent unintended trigger movement when engaged. It is an important safeguard during work interruptions, movement between spraying locations, and preparation for servicing.

Titan 0538224 is the two-finger version. The separate Titan 0538222 assembly provides the four-finger configuration. Neither trigger assembly replaces the gun's internal fluid valve, needle, or sealing components.

Compatible Titan Spray Guns

Spray Gun Application Parts Diagram
Titan RX-80 Two-finger trigger and lock replacement Item 23
Titan RX-Pro Two-finger trigger and lock replacement Item 4

These are spray gun compatibility references, not a universal list of sprayer models. A Titan sprayer may be equipped with a different spray gun or trigger arrangement, so verify the gun itself before ordering.

Common Trigger and Lock Problems

Broken Trigger

Physical damage can prevent normal trigger operation.

Lock Will Not Engage

A worn or damaged locking mechanism may fail to secure the trigger.

Restricted Movement

Damage or contamination may interfere with trigger travel.

Worn Pivot Components

Loose or damaged supporting hardware can affect trigger alignment.

If the spray gun continues spraying after the trigger is released, inspect the internal gun valve and sealing components. Replacing the trigger alone may not correct an internal fluid-control fault.

Inspection & Replacement Guidance

1. Relieve pressure. Follow the complete pressure-relief procedure specified by Titan before beginning spray gun service.

2. Disable the sprayer. Switch off the equipment and disconnect its power source according to the operating manual.

3. Confirm trigger configuration. Identify the RX-80 or RX-Pro spray gun and verify that the two-finger assembly is required.

4. Inspect supporting hardware. Examine the trigger pin, retaining clip, retractor mechanism, and surrounding components.

5. Follow Titan's service instructions. Remove and install the trigger assembly using the procedure and component orientation specified for the spray gun.

6. Verify mechanical movement. With the gun depressurized, check that the trigger moves correctly and the lock engages and disengages as specified.

7. Return to service safely. Reassemble the gun and complete the manufacturer's prescribed functional and safety checks before spraying.

Related Titan Spray Gun Repair Parts

Titan 0538222 Four-Finger Trigger and Lock Assembly

Alternative trigger configuration for compatible RX-80 and RX-Pro spray guns.

Titan 0538305 Retractor Pin

Related trigger mechanism component identified in the manufacturer parts diagrams.

Titan 0296343 Spring

Separate spray gun spring used in the RX-80 and RX-Pro assemblies.

Titan 0538210 Seal Assembly

Separate gun sealing component for applicable RX-series spray gun service.

Genuine Titan RX-Series Spray Gun Parts

Order Titan 0538224 Trigger and Lock Assembly

Shop Titan 0538224 at AllTitanParts for compatible RX-80 and RX-Pro two-finger trigger repairs. Restore the designated trigger mechanism with the correct Titan replacement assembly and verify your spray gun configuration before ordering.

Frequently Asked Questions

What is Titan 0538224 Trigger and Lock Assembly?

It is the two-finger trigger and lock replacement assembly used on compatible Titan RX-80 and RX-Pro airless spray guns.

Which Titan spray guns use part 0538224?

Titan RX-80 and RX-Pro spray guns equipped with the specified two-finger trigger configuration.

What is the difference between Titan 0538224 and 0538222?

Titan 0538224 is the two-finger trigger and lock assembly. Titan 0538222 is the four-finger version.

Does Titan 0538224 include mounting components?

Titan's RX-80 and RX-Pro parts diagrams identify the trigger pin and retaining clip as included with the assembly. Confirm the current package contents before ordering.

Can I operate the spray gun if the trigger lock is broken?

No. A defective trigger lock compromises an important safety mechanism. Repair the assembly and verify proper operation before returning the gun to service.
