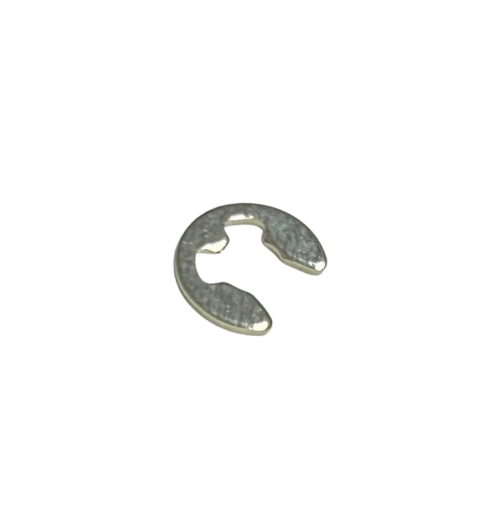

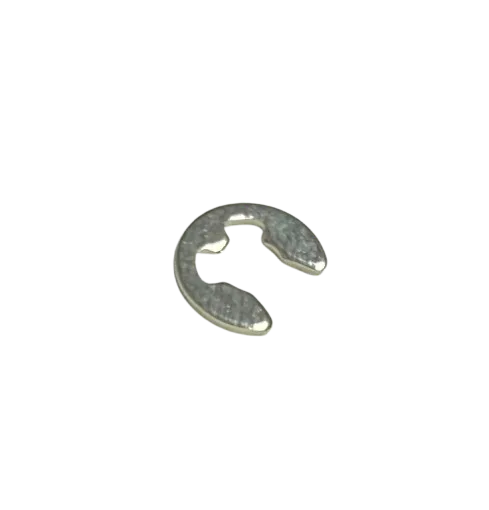

Titan 580120 Ring Clip

$8.24
Available to Order
Part #: 580120
Titan RX-80 Spray Gun Repair Parts

Maintain your spray gun's mechanical assembly with the Titan 580120 Ring Clip. Listed for the Titan RX-80 airless spray gun, this replacement retaining component supports the designated retraction hardware arrangement and provides a targeted repair option when the original clip is missing, damaged, or worn.

MANUFACTURERTitan
PART NUMBER580120
COMPONENTRing Clip
COMPATIBILITYTitan RX-80
Function: Retaining hardware for the designated RX-80 mechanical assembly.
Parts Diagram: RX-80 Item 14.
Related Part: Titan 0538312 Retractor Plate.
Ordering: Titan 580120 Ring Clip.

Fitment & Safety: Confirm the RX-80 spray gun and Item 14 reference before ordering. Relieve all system pressure before servicing the gun or removing retaining hardware.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan Airless Spray Gun Retaining Hardware

Titan 580120 Ring Clip for RX-80 & RX-Pro

Service your spray gun's mechanical retaining arrangement with the Titan 580120 Ring Clip. This genuine replacement component is identified in the official Titan RX-80 and RX-Pro spray gun parts diagrams. It supports the designated trigger and locking assembly configuration and provides a component-level repair option when the original retaining clip is damaged or missing.

MANUFACTURERTitan
PART NUMBER580120
PRODUCT TYPERing Clip
VERIFIED FITMENTRX-80 / RX-Pro

Titan 580120 Technical & Ordering Details

Product Overview Replacement retaining ring clip for specified Titan airless spray gun mechanical assemblies.
Manufacturer Titan
OEM Part Number 580120
Manufacturer Description Ring Clip
Verified Compatible Spray Guns Titan RX-80 and Titan RX-Pro
RX-80 Diagram Reference Item 14
RX-Pro Diagram Reference Item 17
Primary Function Retains designated mechanical components in their manufacturer-specified position within the spray gun assembly.
RX-80 Trigger Assembly Relationship Included as Item 14 in the designated RX-80 two-finger and four-finger trigger-and-lock assemblies.
RX-Pro Trigger Assembly Relationship Included as Item 17 in the designated RX-Pro trigger-and-lock assembly listed by Titan.
Related RX-80 Retractor Plate Titan 0538312, Item 13.
Related RX-80 Rear Housing Titan 0538308, Item 11.
Related RX-80 Collar Assembly Titan 0538303, Item 15.
Related RX-80 Retractor Pins Titan 0538305, Item 3; two used in the gun assembly.
Related RX-80 Two-Finger Trigger Assembly Titan 0538224, includes the ring clip and trigger pin.
Related RX-80 Four-Finger Trigger Assembly Titan 0538222, includes the ring clip and trigger pin.
Material & Dimensions Exact material grade, clip dimensions and finish are not established in the referenced manufacturer parts lists.
Package Contents Individual ring clip replacement part. Verify sales quantity and packaging before ordering multiple units.
Common Replacement Reasons Missing, bent, broken, distorted or otherwise damaged retaining clip.
Industrial Applications Professional airless painting, contractor spray gun maintenance and compatible commercial coating equipment servicing.
Coating Systems Airless coating systems equipped with compatible Titan RX-80 or RX-Pro spray guns.
OEM & Brand Titan original equipment replacement retaining hardware.
Commercial Benefits Allows targeted replacement of damaged retaining hardware without automatically replacing the complete trigger assembly or spray gun.
Ordering & Safety Confirm the spray gun model and diagram reference. Relieve pressure and follow Titan's service procedure before disassembly.

Verified Titan 580120 Spray Gun Compatibility

Spray Gun Parts Diagram Item Manufacturer Description
Titan RX-80 14 Ring Clip
Titan RX-Pro 17 Ring Clip
Compatibility clarification: Both spray gun models are supported by Titan parts documentation. Confirm the actual installed spray gun before ordering because a sprayer machine may be equipped with a replacement or upgraded gun.

What Does the Titan 580120 Ring Clip Do?

The Titan RX-80 and RX-Pro airless spray guns use several mechanical components to support trigger movement and the operation of the gun's internal fluid-control system. The ring clip is one of the separately identified retaining components in these assemblies.

A retaining clip is designed to hold a designated component in its intended position. In the relevant Titan gun diagrams, 580120 is associated with the trigger-and-lock assembly. The correct clip helps preserve the manufacturer's intended mechanical arrangement during repeated spray gun operation.

A missing, deformed or damaged ring clip should be investigated before the gun is returned to service. Because the ring clip is separately cataloged, technicians can identify and order this component without automatically purchasing a complete trigger-and-lock assembly.

Titan RX-80 Ring Clip & Related Assembly Parts

Item Part Number Description Relationship
14 580120 Ring Clip This product
2 0538425 Pin Included with designated trigger assemblies
3 0538305 Retractor Pin Two used in the gun assembly
11 0538308 Rear Housing Separate component
13 0538312 Retractor Plate Separate component
15 0538303 Collar Assembly Separate component
23 0538224 Two-Finger Trigger & Lock Assembly Includes Items 2 and 14
4 0538222 Four-Finger Trigger & Lock Assembly Includes Items 2 and 14
Package clarification: These are RX-80 assembly relationships, not components included with an individual 580120 ring clip purchase. Titan identifies the ring clip as part of certain complete trigger-and-lock assemblies.

Common Ring Clip Problems & Symptoms

Missing Ring Clip

Missing retaining hardware may prevent the assembly from maintaining its intended configuration.

Bent or Distorted Clip

Physical deformation may compromise correct clip seating.

Loose Mechanical Hardware

Unexpected movement in the trigger assembly may require inspection of the clip and related components.

Incorrect Replacement Clip

An incorrectly sized or incompatible clip may not retain the intended component properly.

Trigger sticking, incomplete shutoff or leakage can have other causes, including damaged springs, pins or internal sealing components. Diagnose the complete assembly before replacing individual hardware.

Installation & Safety Guidance

1. Relieve system pressure. Follow Titan's complete pressure-relief procedure before disassembling the spray gun.

2. Disable the sprayer. Turn off the equipment and disconnect its power source according to the operating manual.

3. Verify the spray gun. Identify the RX-80 or RX-Pro and confirm the correct ring clip diagram reference.

4. Inspect related hardware. Examine the trigger pin, retractor components and mounting areas for damage or abnormal wear.

5. Remove the defective clip. Follow Titan's service procedure and use appropriate retaining-clip tools when specified.

6. Install the replacement. Seat the correct clip in the designated position without bending, stretching or modifying it.

7. Verify retention. Confirm that the clip is fully seated and the associated mechanical parts are correctly secured.

8. Perform functional checks. Confirm proper trigger and trigger-lock operation while depressurized, then follow the manufacturer-prescribed safety and operational testing procedure.

Related Titan RX-80 & RX-Pro Repair Parts

Titan 0538425 Trigger Pin

Related trigger pin identified as Item 2 in the RX-80 diagram.

Titan 0538305 Retractor Pin

Related RX-80 mechanical component, with two used in the assembly.

Titan 0538312 Retractor Plate

Separate RX-80 retraction component identified as Item 13.

Titan 0538224 Two-Finger Trigger Assembly

Complete RX-80 trigger-and-lock assembly that includes the ring clip.

Titan 0538222 Four-Finger Trigger Assembly

Alternative RX-80 trigger-and-lock assembly that includes the ring clip.

Titan Spray Gun Retaining Clips & Trigger Parts

Buy Titan 580120 Ring Clip

Order Titan 580120 from AllTitanParts for RX-80 and RX-Pro airless spray gun mechanical repairs. Match the component to the manufacturer's parts diagram and replace damaged retaining hardware using the correct service procedure.

Frequently Asked Questions

What is Titan 580120 Ring Clip?

It is a Titan retaining ring clip identified in the RX-80 and RX-Pro airless spray gun mechanical assembly parts diagrams.

Which Titan spray guns use part 580120?

Titan officially lists 580120 for both the RX-80 and RX-Pro airless spray guns.

Where is the ring clip shown in the parts diagrams?

It is Item 14 in the Titan RX-80 parts diagram and Item 17 in the Titan RX-Pro parts diagram.

Is Titan 580120 included in a complete trigger assembly?

Yes. Titan identifies this ring clip as included in certain RX-80 and RX-Pro trigger-and-lock assemblies. It is also listed as an individual replacement part.

When should I replace Titan 580120?

Replace it when missing, damaged, bent or unable to retain the designated component securely. Always relieve pressure and follow Titan's service instructions before replacement.
