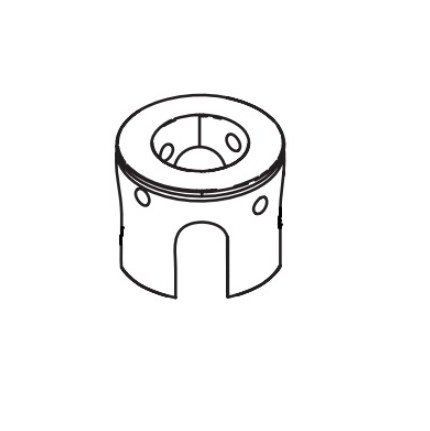

Titan 0533692 Ball Cage Assembly

Name: Titan 0533692 Ball Cage Assembly
Brand: Titan
SKU: 533692
Price: 91.24 USD
Availability: InStock

Sourced From:

Titan Tools Inc.

Titan WL64 Piston Ball Cage Assembly

The Titan 0533692 Ball Cage Assembly controls check-ball travel within the WL64 piston valve, supporting accurate seating, efficient pressure recovery, and stable coating delivery. It is designed for PowrCoat 1064 fluid pumps used in demanding industrial airless applications.

Brand: Titan Part: 0533692 Type: Ball Cage Assembly Application: WL64 Piston Valve

Compatibility Table

Brand	Accurate Compatible Titan Machine(s)	Part Number	Parts / Assemblies Serviced With	Technical / Commercial Detail
Titan	PowrCoat 1064 Cart 05331064C; PowrCoat 1064 Wall Mount 05331064W	0533692	WL64 fluid pump; 0533689 displacement rod; 0533690 retainer; 0533691 piston seat assembly; check ball and ball pin	Guides check-ball movement for controlled valve opening, dependable sealing, priming, and pressure generation.

Inspect the cage, check ball, pin, piston seat, retainer, and displacement rod whenever poor priming, erratic cycling, material bypass, or pressure loss indicates piston-valve wear.

Retail Price: $99.5

You save: $8.26 (8.30%)

Our Price: $91.24

Description

Titan WL64 Inlet Ball Cage Assembly

Precision Ball Cage Engineering Enhances WL64 Valve Reliability Through Continuous Operation

The 0533692 ball cage assembly guides and limits inlet check-ball movement within the Titan WL64 fluid pump. Accurate ball control supports dependable priming, efficient valve seating, stable pressure recovery, and consistent coating delivery from PowrCoat 1064 air-powered airless sprayers.

Brand: Titan Part Number: 0533692 Type: Ball Cage Assembly Application: WL64 Inlet Valve

Technical Category	Product Information
Product Overview	Titan replacement ball cage assembly for the WL64 fluid pump installed on PowrCoat 1064 sprayers. It operates within the lower inlet-valve area and works with the inlet ball, ball-stop pin, seat, and foot-valve assembly.
Function	Contains and guides the inlet check ball while limiting excessive travel. Controlled movement allows coating material to enter the fluid section during the intake stroke and helps the ball return accurately to its seat during pressurization.
Industrial Applications	Supports industrial maintenance, structural steel finishing, corrosion-control projects, tank coating, roofing, commercial painting, marine maintenance, and other high-output protective-coating work performed with PowrCoat 1064 equipment.
Accurate Compatible Titan Machines	Titan PowrCoat 1064 Cart, model 05331064C, and Titan PowrCoat 1064 Wall Mount, model 05331064W. Both configurations use the WL64 severe-service fluid pump.
Accurate Part Number	Titan 0533692 — ball cage assembly for the WL64 fluid pump inlet check-valve section.
Compatible Parts & Assemblies	WL64 fluid pump assembly, 0533693 ball-stop pin, 315-700 stainless-steel inlet ball, 0533694 ball seat, 0533695 foot-valve assembly, and the adjoining lower inlet-valve components.
Related Parts Commonly Serviced Together	Contractors should inspect the inlet ball, ball-stop pin, ball seat, foot valve, cotter pin, cylinder, displacement rod, packings, glands, O-rings, and fluid-section sealing surfaces during the same teardown.
Common Problems Solved	Replacement helps correct restricted check-ball travel, poor priming, delayed material intake, erratic cycling, weak pressure recovery, coating bypass, and inconsistent output caused by a worn, distorted, damaged, or obstructed cage.
Use with Coating Systems	Designed for the WL64 severe-service fluid section used in PowrCoat 1064 pneumatic airless systems configured for professional industrial and protective-coating applications.
OEM & Brand Information	Titan-branded inlet-valve component identified by exact part number and WL64 pump application. Fitment should be confirmed by fluid-pump size and machine model before installation.
Commercial Benefits	Restores controlled inlet-ball travel, supports faster priming, improves pressure stability, reduces repeat teardown, protects related valve parts, and helps return PowrCoat 1064 equipment to productive service.

FAQ Section

Review these contractor-focused answers before servicing a Titan WL64 inlet check valve.

Frequently Asked Questions
Which Titan sprayers use this ball cage assembly? It fits the WL64 fluid pump used on Titan PowrCoat 1064 Cart model 05331064C and PowrCoat 1064 Wall Mount model 05331064W.
What does the ball cage assembly do? It guides and contains the inlet check ball, limiting its travel so material can enter the pump and the ball can return accurately to its seat.
What symptoms can indicate a damaged ball cage? Poor priming, delayed material intake, irregular cycling, unstable pressure, reduced output, or an inlet ball that sticks or moves incorrectly can indicate cage damage.
Which parts should be inspected during replacement? Inspect the 315-700 inlet ball, 0533693 ball-stop pin, 0533694 ball seat, 0533695 foot valve, cotter pin, and all adjoining sealing surfaces.
Is this ball cage confirmed for PowrCoat 1072 sprayers? Confirmed fitment is limited to the WL64 fluid pump used on PowrCoat 1064 models. Components shared by WL64 and WL72 systems do not automatically confirm ball-cage interchangeability.
