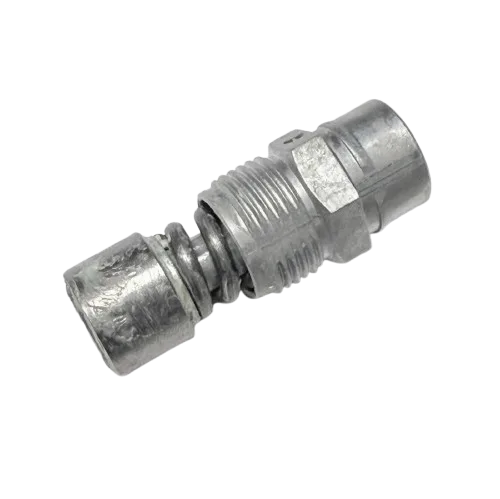

Titan 0532223A Transducer Assembly
Restore dependable pressure feedback with the Titan 0532223A Transducer Assembly, a manufacturer-listed replacement for compatible Titan Impact 340 and Impact 400 Airless Sprayers. This pressure-sensing component helps the sprayer's control system monitor operating pressure and respond to changing spray demands. Replace a confirmed defective transducer to address pressure-feedback faults, inconsistent pressure regulation, or abnormal pump cycling caused by sensor failure.
Assembly: Drive Assembly II, item 5.
A targeted pressure-sensing replacement for diagnosed transducer faults. Confirm the installed assembly and part number before ordering from AllTitanParts.
Restore Accurate Pressure Feedback with Titan 0532223A Transducer Assembly
Maintain responsive pressure regulation with the Titan 0532223A Transducer Assembly, a manufacturer-documented pressure-sensing replacement component for Titan Impact 340 and Titan Impact 400 electric airless sprayers. Identified as item 5 in Drive Assembly II, the transducer helps the pressure-control system monitor operating conditions and regulate pump performance. Replacing a confirmed faulty assembly can help restore dependable pressure feedback and avoid unnecessary replacement of otherwise serviceable control components.
Exact Titan Sprayer Models for Part 0532223A
The Titan 0532223A Transducer Assembly is listed in the Drive Assembly II parts documentation for:
- Titan Impact 340 Airless Sprayer
- Titan Impact 400 Skid Airless Sprayer
- Titan Impact 400 Cart Airless Sprayer
Diagram location: Drive Assembly II, item 5.
Do not assume universal compatibility with other Titan Impact models. Different machines may use alternative pressure sensors, control electronics, connectors, or pressure-control assemblies. Always verify the manufacturer's part number against the applicable model and revision.
How the Titan 0532223A Transducer Assembly Supports Pressure Regulation
Airless paint sprayers generate the pressure needed to atomize coating materials at the spray tip. Consistent operation depends on the interaction of the pump, pressure-adjustment system, and components that monitor the sprayer's operating conditions.
The Titan 0532223A Transducer Assembly serves as a pressure-sensing component within the designated pressure-control system. It helps provide the pressure feedback used by the equipment's control arrangement to respond to changes in spraying demand.
During spraying, pressure conditions can change as the spray gun is triggered or released. Accurate feedback is important because the machine's control system must respond appropriately to those operating changes.
When a transducer fails, the pressure-control system may receive incorrect or missing pressure information. Depending on the nature of the failure, the equipment may exhibit abnormal pressure response, irregular cycling, or control-related operating problems.
These symptoms are not exclusive to transducer failure. Worn pump packings, restricted filters, defective check valves, damaged electrical connections, or other control-system faults may produce similar behavior. Professional diagnosis is therefore important before replacement.
Transducer Assembly Inspection and Repair Guidance
Proper transducer servicing begins with identifying the equipment, confirming the pressure-control fault, and following the applicable Titan service instructions. Because this component interacts with electrical controls and the pressurized fluid system, diagnosis and replacement should be handled by qualified service personnel.
Step 1: Prepare the equipment safely. Switch off the sprayer, disconnect it from electrical power, and complete the pressure-relief procedure specified in the Titan manual.
Step 2: Verify the machine configuration. Confirm whether the sprayer is an Impact 340, Impact 400 Skid, or Impact 400 Cart. Identify the installed Drive Assembly II configuration and check the manufacturer parts diagram.
Step 3: Diagnose the pressure-control system. Have qualified service personnel evaluate the relevant pressure-control components, electrical connections, and other possible causes of the observed malfunction.
Step 4: Confirm the replacement component. Match the installed assembly and parts-list identification to Titan 0532223A Transducer Assembly. Avoid selecting an alternative sensor solely because it appears physically similar.
Step 5: Perform the specified replacement. Qualified service personnel should follow the manufacturer's disassembly, electrical connection, installation, sealing, and reassembly requirements. Do not bypass safety controls or improvise sensor wiring.
Step 6: Verify the repair. After reassembly, confirm normal pressure-control behavior through the prescribed service checks before returning the sprayer to operation.
Related Titan Impact Pressure Control Parts
When diagnosing a pressure-sensing problem, technicians may need to inspect neighboring pressure-control components. The following items are separately identified in the relevant Drive Assembly II parts documentation.
Related components are listed for service planning and are not automatically included with the Titan 0532223A Transducer Assembly. Confirm package contents and machine compatibility before purchase.
Buy Titan 0532223A Transducer Assembly
Order the Titan 0532223A Transducer Assembly for your compatible Impact 340 or Impact 400 airless sprayer. Choose the correct pressure-sensing replacement for a confirmed transducer fault and support reliable pressure-control operation with properly matched Titan replacement parts.
Shop Titan 0532223A Transducer AssemblyFrequently Asked Questions
Find model compatibility, pressure-sensing information, and maintenance guidance for Titan 0532223A.
Which Titan machines are compatible with 0532223A?
Titan Impact 340, Titan Impact 400 Skid, and Titan Impact 400 Cart airless sprayers are documented applications. Confirm the installed assembly revision before ordering.
Does Titan 0532223A fit the Impact 340?
Yes. The applicable Titan Impact 340 parts documentation identifies 0532223A as the transducer assembly in Drive Assembly II.
Does Titan 0532223A fit the Impact 400?
Yes. Titan Impact 400 Skid and Cart configurations are documented applications for this transducer assembly.
What does the Titan 0532223A Transducer Assembly do?
It senses pressure and provides feedback to the designated pressure-control system, helping the sprayer respond appropriately to operating pressure conditions.
Can a faulty transducer cause inconsistent spray pressure?
Yes. Incorrect pressure feedback may interfere with regulation. However, pump wear, restricted filters, valve problems, and other control faults can cause similar symptoms.
Is the transducer the same as the pressure switch?
No. Titan 0532223A is the transducer assembly, while Titan 0532216A is the pressure switch. They are separately listed components with different functions.
Where is Titan 0532223A located?
It is identified as item 5 in the applicable Drive Assembly II exploded parts diagram for the Titan Impact 340 and Impact 400.
Should I replace the transducer when pressure fluctuates?
Only after diagnosis confirms that the transducer is defective. Pressure fluctuations can also originate in the pump, check valves, filters, or other electrical control components.
Does Titan 0532223A fit every Titan Impact sprayer?
No. The documented applications here are the Impact 340 and Impact 400. Other Impact models may use different pressure-sensing assemblies and require separate fitment verification.
Where can I buy Titan 0532223A Transducer Assembly?
Shop the Titan 0532223A Transducer Assembly at AllTitanParts after verifying your sprayer model and pressure-control configuration.
