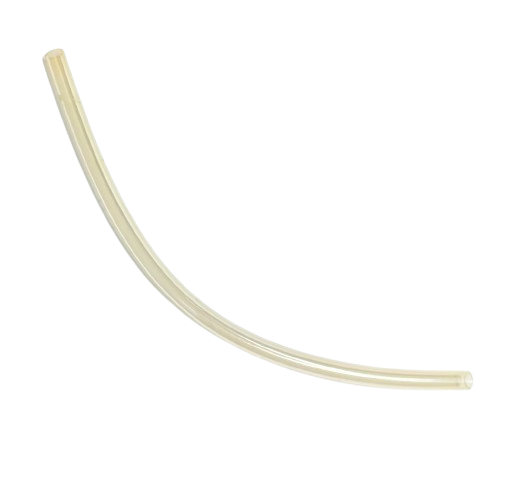

Advantage part 0512389 is a return tube designed for use with the Advantage Series GPX33 pressure washer or sprayer. This tube carries unused fluid or bypass flow from the unloader valve or pump head back to the tank or inlet side, helping to maintain consistent pressure and prevent pump overheating during bypass operation.
| Part Number | 0512389 |
|---|---|
| Part Description | Return Tube |
| Brand | Advantage |
| Fits | GPX33 (Advantage Series) |
| Condition | New |
The Advantage 0512389 Return Tube is a key component in the fluid circulation system of the GPX33. It channels excess water or cleaning solution from the unloader valve back to the supply tank or pump inlet when the spray gun is triggered off, allowing the pump to continue running without building excessive pressure.
Return tubes are subject to constant flexing, chemical exposure, and heat. Over time, they can become brittle, develop cracks, or collapse internally, restricting flow. A compromised return tube can lead to pressure spikes, inadequate cooling during bypass, and premature pump wear. Replacing it restores proper bypass circulation and system reliability.
| Bypass circulation | Returns water to tank/pump inlet when gun is closed, preventing deadheading |
|---|---|
| Thermal relief | Allows cool water to circulate through pump during bypass, reducing heat buildup |
| Pressure stability | Maintains consistent unloader operation by providing a clear return path |
| Visible leaks | Cracks, splits, or pinholes in the tube wall |
|---|---|
| Kinked or collapsed | Tube is permanently bent or flattened, restricting flow |
| Hardened/brittle rubber | Loss of flexibility due to age or chemical exposure |
| Pressure surging | Fluctuating pressure caused by restricted return flow |
Advantage part 0512389 is specifically designed for the Advantage Series GPX33. Always confirm fitment using the correct parts diagram for your exact model and serial number.
| Advantage Model | Component |
|---|---|
| Advantage Series GPX33 | Return tube |
Return line issues often involve multiple components in the bypass circuit. When replacing the return tube, these related parts are frequently inspected or replaced at the same time.
A sticking or worn unloader can cause erratic bypass; often serviced with return line components.
Restricted inlet flow can mimic return line problems; check and clean or replace as needed.
Corroded or loose clamps can cause leaks; replace with new clamps for a secure seal.
