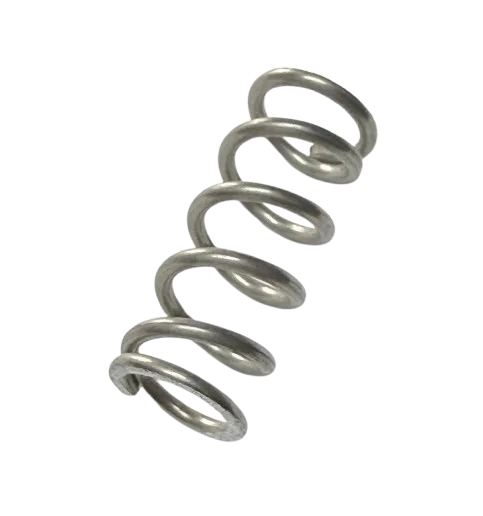

Titan 0296343 Spring

$3.50
Available to Order
Part #: 296343
Titan RX-80 & RX-Pro Spray Gun Parts

Maintain your spray gun's internal filter arrangement with the Titan 0296343 Spring. Listed for Titan RX-80 and RX-Pro airless spray guns, this OEM replacement component supports the specified handle assembly and provides a targeted repair option when the original spring is damaged, missing, or no longer serviceable.

MANUFACTURERTitan
PART NUMBER0296343
COMPONENTGun Filter Spring
COMPATIBILITYRX-80 / RX-Pro
Function: Spring component in the spray gun handle and filter arrangement.
RX-80 Diagram: Item 20.
Related Parts: Titan 0089958 Medium Filter and Titan 560-038 Handle Seal.
Ordering: Titan 0296343 Spring.

Fitment & Safety: Confirm the installed RX-80 or RX-Pro gun and spring part number before ordering. Relieve all fluid pressure before opening the handle or servicing the filter.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan Spray Gun Replacement Components

Titan 0296343 Spring for RX-80 & RX-Pro

Maintain the specified internal filter arrangement of your Titan airless spray gun with the Titan 0296343 Spring. This OEM replacement spring is identified in the official RX-80 and RX-Pro parts diagrams. It provides a component-level repair solution when the existing spring is missing, damaged, deformed or unsuitable for continued service.

MANUFACTURERTitan
PART NUMBER0296343
COMPONENTSpring
VERIFIED FITMENTRX-80 / RX-Pro

Titan 0296343 Technical & Ordering Details

Product Overview Replacement spring for the handle and filter arrangement of compatible Titan airless spray guns.
Manufacturer Titan
OEM Part Number 0296343
Manufacturer Description Spring
Verified Compatible Spray Guns Titan RX-80 and Titan RX-Pro
RX-80 Parts Diagram Item 20
RX-Pro Parts Diagram Item 25
Component Category Airless spray gun handle and filter service hardware.
Primary Function Provides the designated spring element in the manufacturer's gun-filter and handle arrangement.
Related Medium Filter Titan 0089958, Item 19 on RX-80 and Item 24 on RX-Pro.
Related Handle Seal Titan 560-038, Item 21 on RX-80 and Item 26 on RX-Pro.
RX-80 Handle Titan 0538302, Item 16.
RX-Pro Handle Titan 0538315, Item 20.
Related Swivel Titan 0538205, listed for both RX-80 and RX-Pro.
Different Packing Spring Titan 0538324 is the RX-Pro packing spring and is not interchangeable by assumption with 0296343.
Compatible Assemblies RX-80 and RX-Pro handle/filter arrangements specified in their respective parts diagrams.
Material & Finish Exact alloy, coating and finish are not specified in the referenced manufacturer parts lists.
Dimensions & Spring Rate Free length, wire diameter, outside diameter and spring rate are not established in the referenced documentation.
Package Contents Replacement spring. Confirm current sales quantity and packaging.
Common Replacement Reasons Missing, broken, distorted, corroded or visibly damaged spring.
Industrial Applications Professional painting, contractor airless spray gun maintenance and commercial coating equipment repair.
Coating Systems Approved airless coating systems equipped with compatible RX-80 or RX-Pro spray guns.
OEM & Brand Titan original equipment replacement part.
Commercial Benefits Supports targeted service of the gun-filter assembly without unnecessary replacement of otherwise serviceable components.
Ordering & Safety Verify part number 0296343 and the installed spray gun. Follow Titan's pressure-relief procedure before opening the handle.

What Does the Titan 0296343 Spring Do?

The Titan RX-80 and RX-Pro airless spray guns incorporate an internal filter arrangement within the handle area. The manufacturer's exploded parts diagrams list a medium filter, spring and handle seal as separate components. Each part occupies a designated position within the assembly.

The spring provides the specified spring element in this arrangement. Its position and mechanical characteristics are determined by the manufacturer. During maintenance, a missing or damaged spring should be replaced with the correct part number rather than an unverified generic substitute.

The spring does not replace the gun filter, fluid seal, swivel or packing spring. If a spray gun develops reduced flow, leakage or irregular operation, inspect the appropriate components and identify the cause before ordering replacement parts.

Verified Titan 0296343 Spray Gun Compatibility

Titan Spray Gun Diagram Item Application
RX-80 20 Handle and filter arrangement
RX-Pro 25 Handle and filter arrangement
Fitment clarification: These are the verified spray gun models. A Titan sprayer machine may be fitted with a different spray gun, so confirm the gun model before ordering. Compatibility with other Titan gun families requires separate verification.

Titan RX-80 & RX-Pro Filter Assembly Parts

Titan Part Number Component RX-80 Item RX-Pro Item
0089958 Medium Filter, 2-Pack 19 24
0296343 Spring - This Product 20 25
560-038 Handle Seal 21 26
0538205 Swivel 18 23
0538302 Handle 16 Not applicable
0538315 Handle Not applicable 20
0296344 Tube Not listed in referenced diagram 27
Important: This is a reference table of related gun components, not the contents of the individual spring package. Each component is separately identified in Titan's parts documentation.

Common Spring Problems & Replacement Symptoms

Broken Spring

A fractured or visibly broken spring requires replacement with the correct component.

Missing Spring

Missing internal hardware should be restored before the spray gun is returned to service.

Distorted Spring

Bent or deformed coils may prevent the spring from functioning as intended.

Corrosion or Wear

Inspect for visible deterioration during gun-filter maintenance.

Reduced paint flow, uneven spray patterns or leakage may have other causes, including a clogged filter, incorrect spray tip, worn fluid seal or hose restriction. These symptoms alone do not establish spring failure.

Installation & Maintenance Guidance

1. Relieve all pressure. Follow the complete pressure-relief procedure in the Titan spray gun and sprayer operating manuals.

2. Secure the equipment. Switch off the sprayer, engage the trigger lock and disconnect the appropriate power source.

3. Identify the spray gun. Confirm RX-80 or RX-Pro and locate the spring in the correct parts diagram.

4. Follow the manufacturer procedure. Open the handle and filter arrangement using the applicable service instructions.

5. Inspect the filter. Examine the filter element for clogging, damage or contamination and service it as specified by Titan.

6. Inspect the spring. Check for breakage, distortion, corrosion and incorrect positioning.

7. Install the correct replacement. Use Titan 0296343 in the specified position. Do not substitute an unverified spring or modify its coils.

8. Reassemble and test. Inspect the handle seal, reassemble the components according to Titan's instructions and complete the required safety checks before spraying.

Related Titan Spray Gun Repair Parts

Titan 0089958 Medium Filter

Two-pack medium gun filter listed for RX-80 and RX-Pro.

Titan 560-038 Handle Seal

Handle sealing component used in both spray gun families.

Titan 0538205 Swivel

Fluid inlet swivel listed for RX-80 and RX-Pro.

Titan 0538302 Gun Handle Tube

RX-80 handle component identified as Item 16.

Titan 0538315 Handle

RX-Pro handle component identified as Item 20.

Titan RX-80 & RX-Pro Filter Assembly Parts

Buy Titan 0296343 Spring

Order Titan 0296343 from AllTitanParts for compatible RX-80 and RX-Pro airless spray gun repairs. Replace damaged or missing filter assembly spring hardware and maintain the manufacturer's specified gun configuration.

Frequently Asked Questions

What is Titan 0296343 Spring?

It is an OEM spring listed in the handle and filter arrangements of Titan RX-80 and RX-Pro airless spray guns.

Which Titan spray guns use part 0296343?

Titan officially lists the spring for RX-80 and RX-Pro spray guns.

Where is the spring shown in the parts diagrams?

It is Item 20 in the RX-80 diagram and Item 25 in the RX-Pro diagram.

Is Titan 0296343 the same as the RX-Pro packing spring?

No. Titan 0538324 is the RX-Pro packing spring. Titan 0296343 is separately listed in the handle and filter arrangement.

When should I replace Titan 0296343?

Replace it when inspection confirms that the spring is missing, broken, deformed, corroded or otherwise unsuitable for service. Follow Titan's pressure-relief and maintenance instructions.
