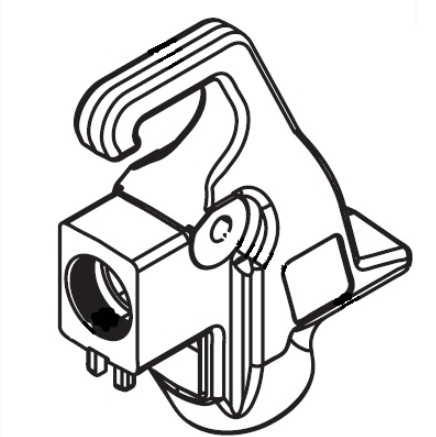

Titan 0296228 Gun Head

Gun Head Assembly for Airless G10 Series Spray Guns

The SprayTech 0296228 gun head is a precision-engineered component that forms the forward section of compatible Airless G10 TR2, Airless G10, and Airless1 G10 spray guns. This critical assembly houses the fluid valve mechanism, including the valve seat and the forward portion of the valve stem, and provides the mounting interface for the spray tip, tip guard, and in some configurations, the reversible tip assembly. The gun head is the component through which high-pressure fluid passes immediately before atomization, making its internal geometry and sealing surfaces directly responsible for spray pattern quality, droplet size, and overall application consistency. In airless spray systems, fluid pressures typically range from 1,500 to 3,000 psi or higher, and the gun head must maintain precise alignment between the valve stem and seat to ensure positive shut-off without weeping or dripping when the trigger is released. Any wear, erosion, or damage to these critical sealing surfaces can result in fluid leakage, inconsistent pattern, or complete loss of pressure control.

The gun head is manufactured from materials selected for exceptional durability under the demanding conditions of professional spray applications. Typically constructed from hardened steel, stainless steel, or high-strength engineered alloys, the gun head must resist erosion from abrasive materials such as textured coatings and epoxies, withstand chemical attack from aggressive solvents and cleaning agents, and maintain dimensional stability across temperature variations. The valve seat area is often precision-ground or carbide-tipped to provide a durable sealing surface that can withstand thousands of actuation cycles without significant wear. Over time, gun heads may become compromised due to normal wear of the valve seat, erosion from abrasive materials, physical impact damage from dropping the gun or striking surfaces, overtightening of the spray tip assembly, or corrosion from improper cleaning practices. Common failure indicators include fluid weeping from the tip when the trigger is released, difficulty achieving a clean shut-off, inconsistent spray pattern that does not respond to tip changes, visible wear or grooving on the valve seat, stripped threads where the tip guard or tip attaches, or damage to the tip retention mechanism.

Replacement with the 0296228 gun head restores proper valve sealing and spray performance. Before installation, inspect the valve stem and seat interface, ensuring both surfaces are clean and free from debris. If replacing only the gun head while retaining the existing valve stem, verify that the stem and seat are compatible and that the stem moves freely without binding. When installing the new gun head, follow the manufacturer's torque specifications for any mounting screws or retaining hardware to avoid distorting the component or creating stress points. Apply appropriate thread sealant to any threaded connections as specified by the manufacturer. Install the spray tip and guard according to manufacturer guidelines, ensuring proper orientation for reversible tips and correct torque to prevent leaks while avoiding overtightening that could damage threads. After reassembly, test the gun function with fluid under pressure to verify positive shut-off, consistent spray pattern, and leak-free operation at all connections. Regular inspection of the gun head during routine maintenance helps identify developing wear or damage before it leads to application quality issues, material waste, or unsafe operating conditions. A properly maintained gun head is essential for achieving professional spray results, reducing material consumption, and ensuring operator safety.
