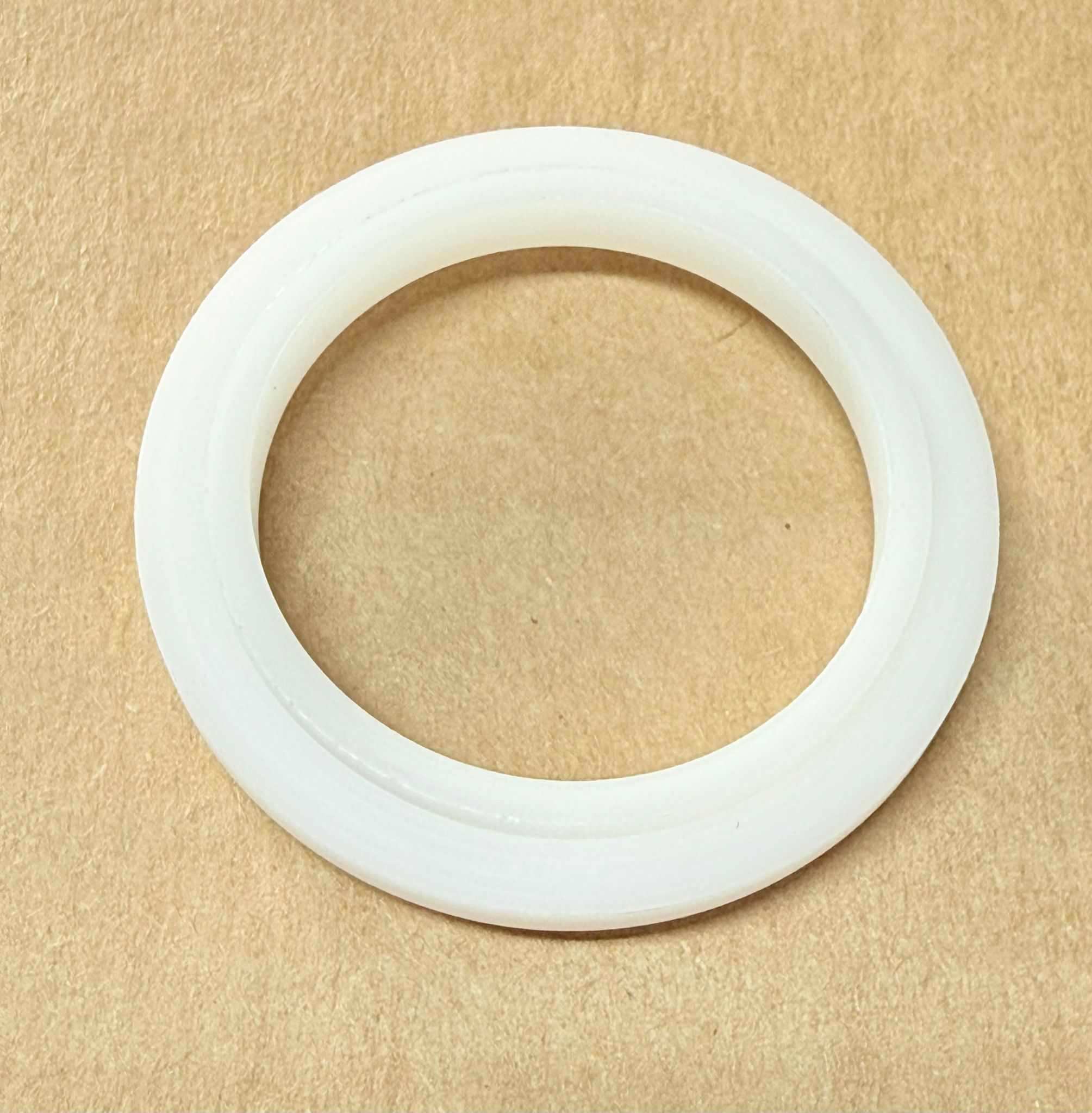

Titan 0294523 Lower Pressure Ring
OEM SprayTech Fluid Section Component
Titan 0294523 Lower Pressure Ring is a genuine OEM sealing component for the SprayTech Airless EP2510 fluid section. It works with the V-ring and lower ring support to maintain proper seal compression and prevent fluid bypass.
Compatibility
When rebuilding the fluid section, inspect the lower pressure ring for flatness, cracks, or deformation. It is best practice to replace the lower pressure ring, V-ring, and lower ring support together to ensure a complete and reliable repair.
SprayTech Fluid Section Component
Titan 0294523 Lower Pressure Ring for SprayTech Airless EP2510
Titan 0294523 is a key sealing component within the fluid section of the SprayTech Airless EP2510 airless paint sprayer. It works together with the V-ring and lower ring support to create a reliable dynamic seal around the piston rod, preventing fluid bypass and maintaining consistent operating pressure. Over time, constant pressure cycling, chemical exposure, and normal wear can cause the lower pressure ring to become hardened, cracked, or distorted. A compromised ring can lead to insufficient seal compression, resulting in pressure loss, erratic spray, or leakage past the V-ring. The EP2510 fluid section parts breakdown lists a lower pressure ring (item F-11) within the seal stack, confirming its role in the assembly.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM lower pressure ring for the SprayTech EP2510 fluid section. The EP2510 parts breakdown lists a lower pressure ring (F-11) within the seal stack, and the product page confirms part number 0294523. |
| Function | Seal compression (applies controlled pressure to the V-ring stack); fluid containment (prevents paint from bypassing the V-ring); pressure stability (maintains consistent sealing force for steady output). |
| Compatible Model | SprayTech Airless EP2510. Always verify fitment using your machine's parts diagram, especially if you have an older revision or a model variant. |
| OEM Part Number | 0294523 Lower Pressure Ring. |
| Replacement Indicators | Visible damage (cracks, warping, or flattening); pressure loss (sprayer struggles to maintain pressure even after replacing the V-ring); recurring leaks (fluid bypass continues despite new seals); during rebuild (replace whenever the fluid section is disassembled). |
| Related Parts Commonly Serviced Together | V-ring seal (0294521) (sits directly against the lower pressure ring); lower ring support (0294522) (provides rigid base; replace as a set); throat packings and seals (replace together for a complete fluid-tight barrier). |
| Why Genuine OEM | Correct dimensions and material ensure proper compression and sealing. The V-ring and lower pressure ring wear together; replacing them as a matched set ensures optimal sealing and longevity. |
Service guidance: When rebuilding the fluid section, always inspect the lower pressure ring for flatness, cracks, or signs of deformation. It is best practice to replace the lower pressure ring, V-ring, and lower ring support together to ensure a complete and reliable repair. The V-ring and lower pressure ring wear together and their mating surfaces conform over time. For optimal sealing and longevity, always replace them as a matched set. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
