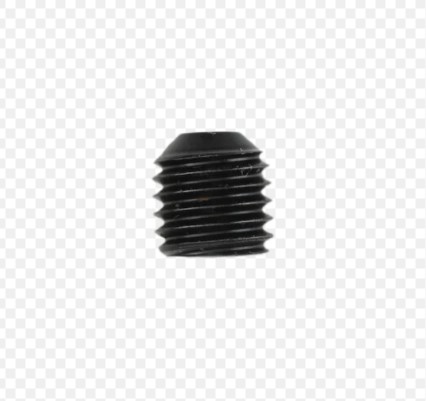

Titan 0275574 Set Screw

Titan 0275574 Set Screw

Sourced From:
Titan Tools Inc.



CapSpray part 0275574 is a set screw used to secure critical components on compatible CapSpray HVLP systems. It provides a positive locking action to prevent unwanted movement of adjustment knobs, needle assemblies, or other fastened parts during operation.

Part Number 0275574
Part Description Set Screw
Brand CapSpray
Fits CapSpray HVLP Maxum II
Condition New

$3.4



Set Screw for CapSpray HVLP Maxum II Systems

The CapSpray 0275574 Set Screw is a precision fastener used to lock adjustment controls, needle guides, or other rotating parts in place on the Maxum II turbine HVLP system. A properly seated set screw ensures that settings remain stable during operation, preventing drift that can affect material flow, pattern shape, or fan width.

Over time, set screws can become stripped, lost, or loosen due to vibration. A missing or damaged screw can lead to inconsistent spray performance, unintended adjustment movement, or even component separation. Replacing with the correct OEM screw restores secure fastening and reliable operation.

Service Guidance: If you notice that a control knob, needle adjuster, or other fastened part moves unexpectedly or will not stay in position, inspect the set screw for wear, cross‑threading, or absence. Always use the correct size and thread pitch to avoid damaging the mating threads.

What it does and when to replace it

What the set screw does
Secures components Locks adjustment knobs, needle guides, or covers to a shaft or housing
Prevents drift Holds settings under vibration and normal use
Maintains calibration Ensures consistent spray pattern and material flow
When replacement is recommended
Lost screw Screw missing, causing part to be loose or detached
Stripped threads Screw will not tighten, or spins freely without clamping
Damaged head Hex socket or slot rounded out, cannot be removed or torqued
Persistent loosening Screw loosens repeatedly even after retightening

Compatibility

CapSpray part 0275574 is compatible with the following systems. Always verify fitment using the correct parts diagram for your exact model and revision.

CapSpray Model Component
CapSpray HVLP Maxum II Set screw (0275574)

Related parts commonly serviced together

When replacing a set screw, consider inspecting or replacing these associated components to ensure a complete repair.

Adjustment knob / dial

If the screw was lost or stripped, the mating knob may have worn threads or a damaged hub.

Needle assembly

On models where the set screw secures the needle guide, inspect the needle for straightness and wear.

Turbine housing / cover

Check for cracks or deformation around the set screw mounting point if overtightening occurred.

Frequently Asked Questions

It is a set screw used on CapSpray HVLP Maxum II systems to secure adjustment knobs, needle guides, or other components. It ensures that settings remain locked in place during use.

Signs include a missing screw, stripped threads that prevent tightening, a damaged hex socket, or a screw that loosens repeatedly even after proper tightening.

It is designed for the HVLP Maxum II series, including both 115V and 230V versions. Check your parts diagram to confirm the exact application.

Use the correct size hex key (Allen wrench) to avoid damaging the socket. Do not overtighten; apply moderate torque to secure the component without stripping threads or cracking plastic parts. If the screw will not thread easily, check for debris or cross‑threading before forcing it.
