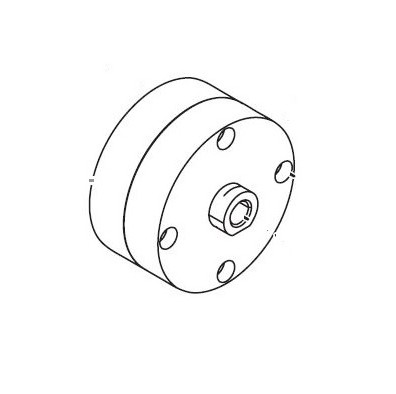

Helix part 0138767 is an air cylinder used to provide pneumatic actuation for valves, pumps, or other mechanical components on compatible sprayers. This precision cylinder converts compressed air into linear motion, controlling material flow, pressure regulation, or component positioning. A worn, leaking, or seized air cylinder can cause erratic operation, loss of control, or complete system failure. Replacing with this genuine Helix air cylinder restores proper pneumatic function and reliable performance on the Helix LP.
| Part Number | 0138767 |
|---|---|
| Part Description | Air Cylinder |
| Brand | Helix |
| Fits | Helix LP |
| Condition | New |
The 0138767 Air Cylinder is a pneumatic actuation component used in Helix LP spray systems to control various mechanical functions. It converts compressed air pressure into linear force and motion, operating valves, pumps, or positioning mechanisms critical to sprayer operation.
The cylinder features precision-machined internal components, durable seals, and a smooth bore for reliable, friction-free operation. Over time, seals can wear, pistons can score, or the cylinder bore can become damaged due to contamination, lack of lubrication, or normal wear. A failing air cylinder can cause sluggish or erratic movement, air leaks, loss of holding pressure, or complete failure of the controlled function. Replacing a worn or damaged air cylinder with this genuine Helix component restores precise pneumatic control and ensures reliable sprayer operation.
| Linear actuation | Converts air pressure into mechanical motion |
|---|---|
| Valve control | Operates pneumatic valves for material flow control |
| Position holding | Maintains component position under pressure |
| Force generation | Provides mechanical force for clamping or positioning |
| Air leaks | Audible or visible leakage around seals |
|---|---|
| Erratic movement | Jerky or inconsistent motion during operation |
| Seized cylinder | Piston will not move despite air pressure |
| Rod damage | Scored, bent, or corroded piston rod |
Helix part 0138767 is compatible with the following Helix sprayer model. Always confirm fitment using the correct parts diagram for your exact model and revision.
| Helix Model | Component |
|---|---|
| Helix LP | Air Cylinder |
| Helix LP (all variants) | Air Cylinder |
When replacing the air cylinder, consider inspecting or replacing these associated components to ensure complete pneumatic system restoration.
Inspect for leaks, cracks, or loose connections.
Check for proper operation and clean air supply.
Ensure clean, dry, properly regulated air supply to cylinder.
