The site splits PowrMax 605 parts across three diagram pages: main assembly (pump housing and pump screw), spray lance (automatic lance and texture tip 8) and accessories (nozzles, extensions, angled head, hoses, hose support and bottle brush). No rotor or stator is listed on the site, so call the parts team for those.
Start with what kind of machine this is

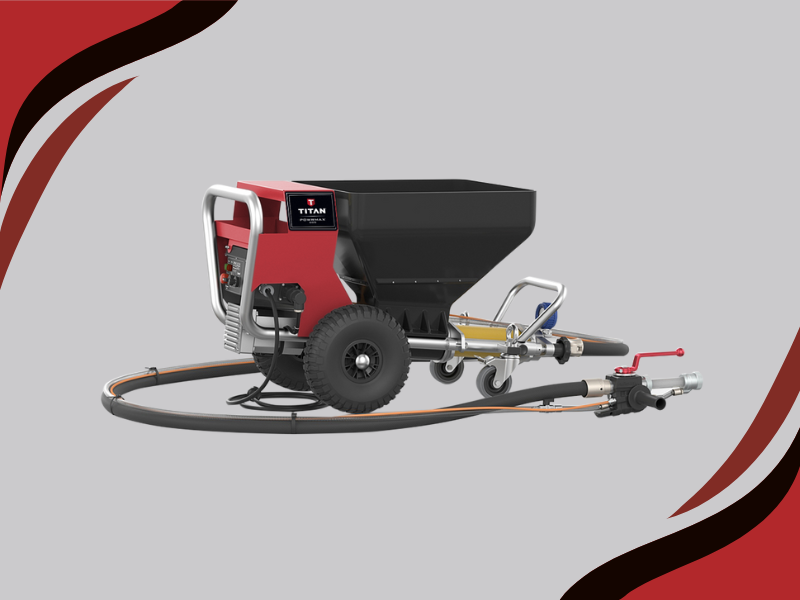

The PowrMax 605 is an electric rotor-stator sprayer for aggregate and texture material such as stucco and mortar. It is not an airless piston sprayer, so the parts you may know from a Titan paint rig, packings, piston rod, inlet and outlet valve balls, do not exist on it. If you search the site for those, you will land on a different sprayer's diagram.
The site lists fifteen PowrMax 605 items in all: the complete Spraypack, plus parts spread over three diagram pages. That makes ordering simple once you know which page to open.
Main assembly: the pump end
The main assembly page lists two parts. Callout 3 is the 348315 pump housing. Callout 9 is the 348316 pump screw W10/3 yellow.
Titan's manual covers rotor replacement, stator replacement and shaft seal as service topics, so those parts exist even though they are not on the site. Call (713) 931-0006 with your serial number and our parts team can look into them with you.
Spray lance: where the material leaves
The spray lance page also lists two parts: callout 1, the 2334115 automatic spray lance, and callout 5, the 0268781 texture tip 8 (standard).
The tip is the part most likely to be the reason a pattern looks different from last week. Texture tip 8 is the standard tip, and the accessories page adds stainless nozzles in two other sizes.
Accessories: nozzles, extensions, hoses and brush
The accessories page carries the most part numbers. Here is how it breaks down.
PowrMax 605 accessories page
| Part | Number | Notes |
|---|---|---|
| Stainless steel nozzle 4 | 268779 | Listed at callout 4 |
| Stainless steel nozzle 6 | 0268780 | Also at callout 4, so a choice between sizes |
| Angled spray head | 2337672 | Callout 12 |
| Extension | 2339400 and 2334124 | Two extension numbers at callout 6 |
| Glue attachment | 2335394 | Callout 7 |
| Concrete conveying hose | 2334131 and 2325197 | Two hose numbers at callout 9 |
| Hose support | 342215 | Callout 17 |
| Bottle brush | 342329 | Callout 15 |
Where two numbers share one callout, the page shows two variants. Compare against your old part or ask the parts team before choosing.
Pick the right variant before you order
- Read the number stamped on, or the length marked on, the old part and match it against the page.
- Where one callout shows two part numbers (extension, conveying hose), do not guess. Look at the old part and at the diagram, or call.
- Nozzle 4, nozzle 6 and texture tip 8 are different sizes. Replace like with like unless your manual says otherwise for your material.
- Have your serial number ready for anything that is not on a diagram page.
Parts from the three PowrMax 605 diagram pages:
Pump housing and pump screw
Automatic lance and texture tip 8
Nozzles, extensions, hoses and brush
Bottom line
Open the page that matches the area you are working on: main assembly for the pump end, spray lance for the lance and tip, accessories for everything else. For rotor, stator or any part that is not listed, call (713) 931-0006 and have your model and serial number ready. Titan's PowrMax 605 manual is on our manuals page.
Not sure which PowrMax 605 part you need?
Call (713) 931-0006 with your model and serial number and our parts team will check it before you order.
