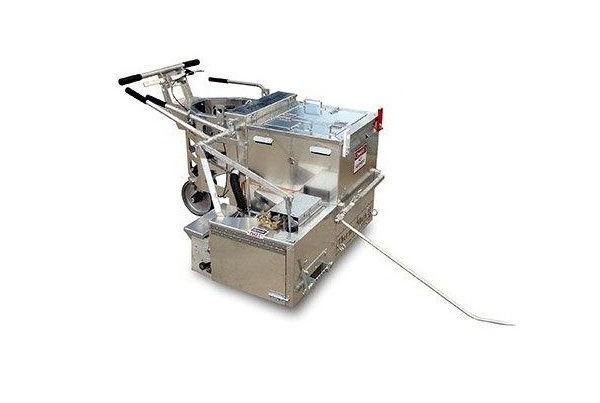

ThermoMark 300 The Next In Line

Titan introduced the bigger gun for the heavy scale projects: the ThermoMark 300. If there is anything you find missing in the previous version, do not worry. The 2.0 version of ThermoMark will give you everything that you dream of. Consider acquiring the next level of the conventional precision, quality and control of ThermoMark with the ThermoMark 300. If you want to level up your paint game, this is the right time. Don’t believe us? See it for yourself.

Features:

  Features of ThermoMark 300 are better than you expected:

• It has a “Thermoplastic Applicator with A 75-Liter-Reservoir”.
• ThermoMark 300 is available with Single Drop Bead System and Double Drop Bead System along with the industry’s high-class insulated reservoir and the bolt-together design. This helps in modular updates and repairs.
• ThermoMark 300 gives the user full control with the dual front brakes, which makes it extremely easy to operate. All controls can be reached easily with an adjustable bead width lever with an “OFF” position. The wheel and axle bearings permit the smooth and even operation. The wide mouth bead box provides auto or manual bead application and the rear swivel wheel upsurges maneuverability.
• ThermoMark 300 is very smartly designed with a dual-screen system that filters out solids. It also has an easy-to-read thermostat.
• The supply lines and valves of ThermoMark 300 consist of stainless steel, brass and copper.
• ThermoMark 300 has color-coded lifting rings for relaxed loading and unloading.

Specifications (ThermoMark 300)

  Each ThermoMark has two:

• 300 SINGLE DROP
• 300 DOUBLE DROP

We will look at the specs of both types to give you a better idea. Material Capacity: The material capacity for single drop and double drop is 75 Liter (Brut to) and 75 Liter (gross) respectively. Application Die Width:  The application die width for single drop and double drop is 10 to 30 cm Standard Custom width and dual line dies available. Heating Type: The heating type for single drop and double drop is Propane (9-kg bottle required) for both. Die Heater: The die heater is Infrared for both. Empty Weight:  The empty weight of a single drop and a double drop is 158 kg and 186 kg respectively. Main Burner: The main burner of both single drop and double drop is Twin Ransome / 11,72 kWh. Gas Control: The gas control for both is Honeywell. Bead Dispenser: The bead dispenser for single drop and double drop is wheel driven beader with application rate proportioned to ground speed. Bead Dispenser Width: The bead dispenser width is  Variable (10, 15, 20, 30 cm and off position). Manual Front Pointer: The manual front point for both adjusts for all die sizes. Wheels: The wheels for both are Dual solid front and single solid rear wheels provide smooth operation. Material Agitation: The material agitation for both is Manual / horizontal shaft / reverse pitch / flow paddles. Shipping Weight: The shipping weight of single drop and double drop is 205 kg crated and 250 kg crated respectively. Rear Swivel Wheel: The rear swivel wheel for both is precision engineered with the quick release lever. Construction: Both are made up of Aluminum with bolt-together assy. Bead Capacity Reservoir: The bead capacity for single drop and double drop is 29 kg and 59 kg respectively. Dimensions (L x W x H): The dimensions of single drop and double drop are 132 x 102 x 94 cm and 145 x 110 x 94 cm respectively. Get this finest Titan gas sprayer from alltitanparts.com today.
