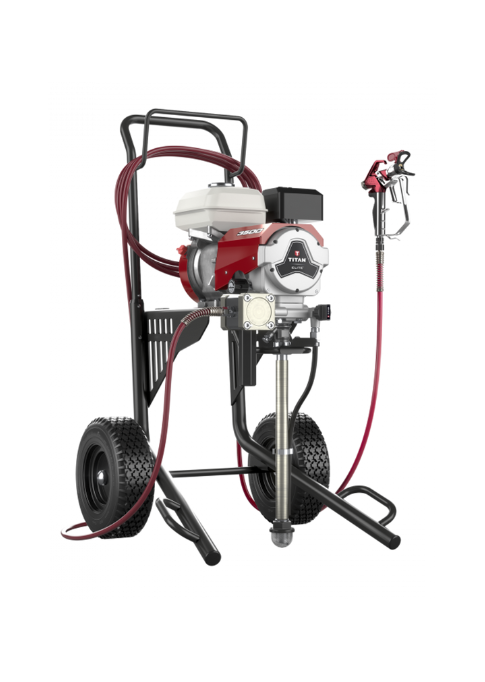

In a hydraulic piston sprayer a gas engine or electric motor drives a hydraulic pump, a hydraulic motor strokes a piston-type fluid pump, and that pump pushes coating to the hose and gun. Service splits the same way: Coolflo and its filter on the hydraulic side, packings, balls and seats in the fluid section.
From engine to tip
Titan uses the name hydraulic piston sprayer for a group of machines that share one layout: a gas engine or electric motor drives a hydraulic pump, a hydraulic motor strokes a piston-type fluid pump, and the fluid pump sends coating through the hose to the gun. The Hydra manuals describe the chain this way, and Titan files the PowrTwin, PowrBeast and PowrTex machines in the same category. It is two circuits that never mix. The hydraulic oil stays inside the drive, and the coating stays inside the fluid section.
- Power source. A gas engine or an electric motor. On the PowrTex 6900SF and 12000SV diagrams a belt and pulley carry the drive to the hydraulic pump: the 449-181 belt and the 449-217 belt guard are listed there.
- Hydraulic pump and motor. The pump moves oil, and the hydraulic motor turns that oil flow into the push-and-pull stroke. The 449-752A hydraulic motor sits on the PowrTex Hydraulic System page.
- Fluid section. The piston, its packings and the inlet and outlet valves. This is the only part of the machine that touches the coating.
- Hose and gun. Everything downstream is rated to the sprayer's working pressure. Never use a hose, gun or fitting rated below it.
That separation is the most useful thing to hold on to. A machine that will not hold pressure with plenty of oil in the tank and a healthy drive has a fluid section problem. A machine that stalls, runs hot or loses power before the paint even moves is looking at the hydraulic side.
Why Titan stresses slow stroking
Titan states that long, slow-stroking pumps extend the life of the sprayer, and that the self-adjusting packings guard against the wear caused by over-tightening. Treat these as Titan's design claims for its hydraulic-drive range, not a promise about any one machine. Titan publishes no service life in hours or gallons for packings or any other fluid section part, so no number belongs here.
Self-adjusting does not mean maintenance-free. The packing still needs lubricant at the top, and it still wears out. It means you do not tighten a gland nut by feel, which is how many conventional pumps get their packings ruined.
The fluid section: piston, packings, valves
The piston rod moves through packings that seal it. A wet cup or oil reservoir at the top holds a lubricant, Piston Lube on the Hydra X, that keeps the upper packing from wearing dry. The rod has to be smooth: a scored rod destroys new packings, so inspect it whenever you repack. On the PowrTex 6900SF diagram the packing parts include the 138-153A repacking kit, an upper and a lower packing spring and a spring retainer, and the 12000SV page lists the 144-117 displacement rod and the 144-832 pump cylinder.
Worn packings show up as leaking at the wet cup, paint in the wet cup, or pressure that will not hold. The inlet and outlet valves, each a ball against a seat, cause a different set of symptoms: pulsing, loss of pressure, or a pump that moves but will not prime. On the Hydra X the manual's daily task is to fill the upper packing oil reservoir half full with 314-480 Piston Lube and not to overfill it. Your own model's manual names the right lubricant and level.
The hydraulic side: fluid, filter, cooling
The Hydra manuals make Titan Coolflo mandatory and say not to use any other hydraulic fluid. Titan says it is formulated for cooler pump operation, with anti-wear properties and protection against rust and oxidation. The part numbers are 430-361 by the gallon and 430-362 by the quart, and both are listed on the PowrTex accessories page.
What the Hydra manuals ask for on the hydraulic side
| Task | Hydra X | Hydra M and Pro IV |
|---|---|---|
| Check the oil level | Daily, between the two dipstick notches, on flat ground with the unit off | Daily, to the Full mark on the dipstick |
| Change fluid and external filter | Every 12 months | Every 6 months |
| Hydraulic pump | See the manual | Not field-serviceable; the manuals say to return it to Titan |
These intervals come from the Hydra manuals and apply to Hydra models only. For a PowrTwin, PowrBeast or PowrTex, use the interval in that model's own manual.
The Hydra X manual says to add fluid only in a clean, dust-free area. The PowrTex hydraulic motor page lists the 441-908 spool valve with sleeve, and for Hydra M motors Titan's manual says to inspect the spool valve for scratches and rough movement when the motor misbehaves.
Pressure control and relief
Titan lists the pressure control on PowrTwin machines as running from 400 to 3300 psi on standard models. The control is a knob on the hydraulic side: on the PowrTex it is the 448-243 pressure control knob on the Hydraulic System page. The heavy duty bleed valve page lists the 945-906 tungsten valve seat, a carbide bearing ball and two PTFE O-rings, the small parts that wear in the valve you open at every shutdown.
Symptom to side: a quick map
Which side of the sprayer a symptom points to (from the Hydra manuals)
| Symptom | Side | What the manual points at |
|---|---|---|
| Delivers on the upstroke only | Fluid section | Lower foot valve ball not seating |
| Delivers on the downstroke only | Fluid section | Upper ball or seat not seating, or a worn packing |
| Pump chatters | Fluid section | Upper packing swollen by solvent; replace the packing set |
| Pump races | Fluid section | Empty container or a stuck bottom ball |
| Motor stalls, low or intermittent pressure, oil above 200 F | Hydraulic side | Low oil, pressure control set too low, belt or pulley failure, faulty ground wire, piston or seal failure |
Work through the list in your manual in order, simplest check first. A foot valve ball that will not seat is often debris, so clean it before you buy anything.
If the symptom is on the fluid side, the diagram pages are PowrTex 6900SF Fluid Section and, for Hydra owners, the Hydra series parts pages. For the hydraulic side on a PowrTex, start at the Hydraulic Motor page. Manuals for your exact model are on our manuals page.
Parts that cover both sides of the machine:
The Short Version
Two circuits, one frame. Oil-side trouble (stalling, heat, low or intermittent pressure) starts with Coolflo level and the belt. Coating-side trouble (one-stroke delivery, chatter, leaks at the wet cup) starts with the foot valve ball, the seats and the packings. Keep Piston Lube and Coolflo on hand, and relieve pressure before any of it.
