Some Titan hydraulic piston sprayers can switch between a gas engine and an electric motor, but not all of them. Titan describes the PowrTwin series as convertible, and the site lists gas, DC electric and 230V electric Convertokits for the PowrTex 6900SF and 12000SV. Confirm the kit for your exact model first.
What convertible means
On a hydraulic piston sprayer the power source is separate from the pump. An engine or an electric motor turns a hydraulic pump through a belt, and everything downstream (the hydraulic motor, the fluid section, the hose) stays the same. That is why a single sprayer can offer a choice of power: you change what sits on the front of the drive and keep the rest.
Titan's PowrTwin series page calls the PowrTwin conversion between gas and electric easy and tool-free, with a belt guard that gives easy access. That is Titan's statement for that series, and it is the only conversion claim in our research. Read it as a description of the PowrTwin, not as a rule for every hydraulic sprayer, and follow your manual's conversion instructions rather than assuming no tools are needed.
The reason to convert is usually the job site. Electric power suits work indoors or on sites that do not allow gas engines. Gas gives portability where there is no power supply. Gas engines must only be run and fuelled outdoors or in well-ventilated areas, away from ignition sources.
Which families convert
- PowrTwin. Titan describes the series as gas or electric convertible.
- PowrTex 6900SF and 12000SV. The site has three Convertokit diagram pages for these two models: gas, DC electric and 230V electric.

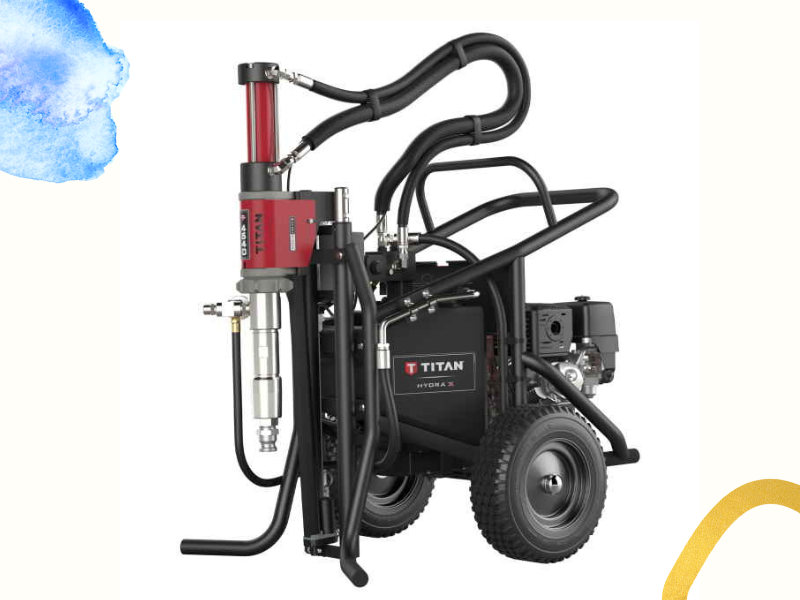

- Hydra. Our Hydra research describes the series as gas-engine driven, with a Honda engine, so do not plan an electric swap on a Hydra X unless your manual or our parts team confirms one.
No source we rely on says every hydraulic piston sprayer converts. If your machine is not a PowrTwin or a PowrTex 6900SF or 12000SV, ask before you buy a kit.
What each PowrTex Convertokit page lists
The three Convertokit diagrams share the belt, and they differ in what attaches to the pump drive. These are the key parts as the site's diagrams list them. Open the page to see the full set, which includes fasteners and washers.
PowrTex 6900SF / 12000SV Convertokit pages
| Kit page | Key parts listed | Notes |
|---|---|---|
| Gas Convertokit | 449-219 engine plate, 448-910 steel pulley, 980-307 key, 449-181 belt | Also lists two Honda engines (980-331A and 764-021A) and a second pulley, 459-008, as alternates |
| DC Electric Convertokit | 506-259 fan cover guard, 506-260 ON/OFF switch, 977-228 pulley, 335-017 handle | Also lists a motor fan (506-258), a rectifier (506-255) and a circuit breaker reset (978-040) |
| 230V Electric Convertokit | 449-152A pulley and bushing assembly, 335-016 handle, 590-411 spacer | Smaller list than the DC page; shares the 449-181 belt |
The gas page shows alternate parts at callouts 3 and 3A (engine) and 5 and 5A (pulley). Match them to your model before ordering, and call if the diagram does not settle it.
The listing names include engine horsepower and other figures that differ between sources, so this post leaves them out. Use the diagram and your manual for engine details, not a number from a part title.
Belt, pulley and belt guard
The 449-181 belt appears on the main assembly page and on all three Convertokit pages, so it is the part that links the power source to the hydraulic pump whichever power you choose. The belt guard that covers it is the 449-217 on the Belt Guard Assembly page, along with a clip (449-187), washers, a pivot bolt (449-166), a locknut (759-456) and the bracket screw (858-636).
A conversion has the belt guard off and the belt loose, so it is the natural moment to look at the belt and the pulleys. Replace a belt that looks cracked or glazed instead of refitting it. Titan gives no belt life in hours, so go by what you can see.
Choosing gas or electric for the site
- Gas when the site has no power or when the job is outdoors. The engine needs fuel and oil checks, and it must never run indoors.
- Electric inside buildings or where gas engines are not permitted. An electric sprayer needs a supply and extension cord suited to the motor; the manual for your model says what that is.
- Both if you move between inside and outside work. A convertible sprayer lets you keep one fluid section, one set of hoses and one set of gun parts.
Before you order or swap
Identify your model
Check the model tag. The Convertokit pages on this site are for the PowrTex 6900SF and 12000SV. A PowrTwin follows its own manual.
Pick the power you are converting to
Open the matching Convertokit page and compare its callouts with the parts on your sprayer. Do not mix pulleys or handles from different kit pages.
Relieve pressure and switch off
Follow the pressure relief procedure in your manual, then switch the sprayer off and, for an electric unit, unplug it before you open the belt guard.
Phone if anything is unclear
Call (713) 931-0006 with the model and serial number. Our parts team can confirm the kit against your unit. Manuals are on our manuals page.
Parts that come up most often when converting a PowrTex:
The Short Version
Convertible is a feature of specific models, not of the whole hydraulic piston category. Titan describes the PowrTwin as convertible, and the PowrTex 6900SF and 12000SV have gas, DC electric and 230V Convertokit pages on the site. Pick the kit from the diagram for your model, check the belt while the guard is off, and call if the diagram leaves any doubt.
