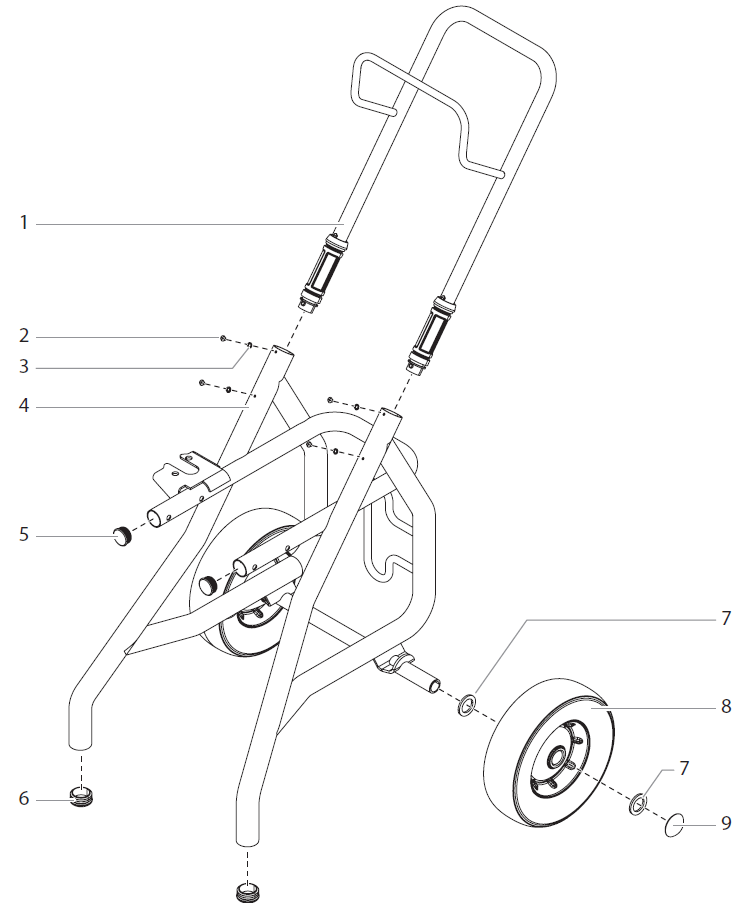

Titan Impact 740 Upright Cart Assembly Parts P/N 0552524A
Shop genuine OEM Titan Impact 740 Upright Cart Assembly Parts P/N 0552524A for servicing the sprayer’s upright cart, frame, mobility, support, and mounting system. Use the applicable exploded assembly diagram to locate the component you need, match its numbered callout with the correct Titan OEM part number, and verify your machine configuration before ordering.
Find the Correct Impact 740 Upright Cart Parts
The upright cart provides the structural platform used to support and transport the applicable Impact 740 configuration. Cart components work together to support the machine, maintain secure mounting, provide handling points, and allow the sprayer to be moved between work areas.
If a frame, wheel, handle, mounting point, support, or related cart component becomes worn, loose, bent, damaged, or missing, use the P/N 0552524A exploded assembly diagram to identify the exact replacement rather than ordering by appearance alone.
What Does the Impact 740 Upright Cart Assembly Do?
The upright cart assembly provides structural support and mobility for the applicable Impact 740 sprayer configuration. It establishes the machine’s mounting platform while providing the frame, handling, wheel, and support areas required to position and move the equipment during normal use.
Damage to the cart does not necessarily indicate a problem with the sprayer’s pumping or drive systems, but structural looseness, damaged mounting points, wheel problems, or bent components should be corrected before they affect stability, transportation, or adjoining machine components.
Impact 740 Upright Cart Components to Inspect
Exact component names and quantities should always be confirmed from the applicable Titan P/N 0552524A exploded drawing and parts listing.
Inspect the cart structure and support areas for bending, cracking, deformation, corrosion, impact damage, or other conditions that may affect stability.
Check applicable wheels, axle areas, retainers, and related hardware for wear, looseness, damage, binding, or missing components.
Inspect handling and support points for looseness, damage, deformation, or compromised attachment to the cart structure.
Verify machine mounts, bolts, screws, washers, nuts, retainers, and other hardware using the exact diagram callout and Titan parts listing.
Find Your Impact 740 Upright Cart Parts Faster
Use the assembly number and exploded diagram to distinguish the correct upright-cart components from similar parts used on other Impact models or frame configurations.
Verify that the machine being serviced is the applicable Titan Impact 740 configuration.
Make sure the cart assembly being serviced corresponds with the applicable P/N 0552524A assembly documentation.
Locate the required component on the exploded drawing and match its callout with the Titan OEM part number.
Check adjoining mounts, retainers, fasteners, supports, and mobility components before completing the order.
Impact 740 Upright Cart Loose, Unstable, or Difficult to Move?
Inspect the complete cart rather than replacing the first visibly worn component. Check the frame, wheels, wheel-retention areas, supports, machine mounting points, handle areas, fasteners, and adjoining structural components.
A loose wheel may involve more than the wheel itself, while machine movement on the cart may indicate worn or missing mounting hardware. Identify the source of the condition before selecting replacement parts.
Impact 740 Upright Cart Inspection Guide
| Condition | Inspect First | What to Check |
|---|---|---|
| Cart feels unstable | Frame and mounting points | Bent structure, loose hardware, damaged supports, missing fasteners or compromised mounting points |
| Wheel is loose | Wheel and retention components | Wheel wear, axle-area condition, retainers, hardware and related mounting components |
| Cart does not roll smoothly | Wheels and mobility points | Damage, binding, contamination, wear, deformation or interference |
| Sprayer moves on the cart | Machine mounting hardware | Loose, missing or damaged mounts, fasteners, supports and attachment points |
| Handle or support feels loose | Handle attachment and frame | Fasteners, attachment points, deformation, cracking or structural wear |
| Visible frame damage | Complete cart structure | Impact damage, bending, cracking, deformation and affected adjoining components |
Upright Cart Problem or Another Impact 740 System?
Identify whether the concern is structural or related to another machine system before ordering parts.
Use for applicable frame, wheel, handle, support, mounting, mobility, and related structural components.
Use when the concern involves mechanical power transfer, abnormal internal mechanical noise, binding, or drive-system wear.
Use for pump components associated with priming, pressure generation, sealing, fluid leakage, and pumping performance.
Use for primary machine components identified on the applicable Impact 740 main exploded drawing.
Impact 740 Upright Cart Service Guidance
Determine whether the problem involves the frame, wheel area, support, handle, mounting point, fastener, or another adjoining component.
Damage to one structural or mobility component can affect adjoining mounts, retainers, fasteners, supports, or mating surfaces.
Confirm that the sprayer is securely mounted, hardware is correctly installed, and the cart is stable before moving or operating the machine.
Find the Correct Impact 740 Parts Section
| Repair Area | Parts Section | Typical Use |
|---|---|---|
| Frame, wheels & support | Upright Cart Assembly | Structural, mobility, handle and mounting components |
| Primary machine components | Main Assembly | Components identified on the main machine drawing |
| Mechanical power transfer | Drive Assembly | Mechanical drive and related components |
| Pump & pressure generation | Fluid Section Assembly | Pump, sealing, valve and fluid-handling components |
| Material intake | Suction Set Assembly | Suction, intake, return and related components |
| Gun, hose, tip & external equipment | Accessories | Applicable external airless spray equipment |
Service Your Impact 740 Upright Cart Safely
Before servicing the cart or removing the sprayer from its mounting points, shut down the Impact 740, disconnect electrical power, and follow Titan's complete pressure-relief procedure. Stabilize and support the equipment appropriately before removing structural or mounting components.
Follow applicable Titan service instructions during disassembly and installation. Confirm that wheels, retainers, supports, mounting hardware, handles, and structural components are correctly installed and secure before transporting or operating the sprayer.
Confirm the Correct Impact 740 Upright Cart Part Before Ordering
Cart, wheel, frame, and mounting components can look similar across Titan sprayer models and configurations. Appearance alone is not a reliable fitment method.
Confirm the Impact 740 model, verify the applicable P/N 0552524A upright cart assembly, locate the component on the exploded drawing, and match its callout with the exact Titan OEM part number and required quantity before purchasing.
Explore More Titan Impact 740 Parts
Move between the Impact 740 upright cart, main machine, drive, and complete Impact parts sections to find the genuine Titan OEM components required for your repair.
Shop Titan Impact 740 Upright Cart Assembly Parts
Use the P/N 0552524A exploded assembly diagram to locate the cart component you need, match its numbered callout with the exact Titan OEM part number, verify the required quantity, and order the correct replacement for your Impact 740.
Find Impact 740 Upright Cart PartsTitan Impact 740 Upright Cart Assembly Parts FAQs
What is the Titan Impact 740 Upright Cart Assembly?
It is the structural and mobility assembly used to support and transport the applicable Impact 740 configuration. P/N 0552524A identifies the assembly referenced on this parts page.
How do I identify the correct Impact 740 cart replacement part?
Confirm the Impact 740 configuration and P/N 0552524A assembly, locate the required component on the exploded drawing, and match its numbered callout with the corresponding Titan OEM part number.
What should I inspect if the Impact 740 cart feels unstable?
Inspect the cart structure, machine mounting points, wheels, supports, handle areas, fasteners, and adjoining components for looseness, damage, deformation, or missing hardware.
What should I check if an Impact 740 wheel is loose?
Inspect the wheel together with the applicable axle area, retainers, mounting hardware, and adjoining structural components. Use the exploded diagram to identify the exact parts involved.
Is the upright cart part of the Impact 740 drive system?
No. The upright cart provides structural support and mobility, while the Drive Assembly contains mechanical components involved in transferring movement toward the pump.
Should mounting hardware be inspected when repairing the cart?
Yes. Inspect applicable bolts, screws, washers, nuts, retainers, supports, and machine mounting points whenever the cart is loose, damaged, or being serviced.
Can I identify an Impact 740 cart part by appearance?
No. Similar-looking cart components may differ between models and configurations. Use the P/N 0552524A exploded drawing, diagram callout, and exact Titan OEM part number for identification.
Where can I find other Titan Impact 740 parts?
Browse the Impact 740 Main Assembly, Drive Assembly, and other applicable model-specific parts sections, or return to the complete Titan Impact Sprayer Parts category for additional genuine OEM components.
