Titan Impact 740 Low Rider Siphon Assembly Parts P/N 805-296
Shop genuine OEM Titan Impact 740 Low Rider Siphon Assembly Parts P/N 805-296 for servicing the material-intake and return path on the applicable Low Rider configuration. Use the exploded siphon assembly diagram to identify the component you need, match its numbered callout with the correct Titan OEM part number, and verify the required quantity before ordering.
Find the Correct Impact 740 Low Rider Siphon Parts
The siphon assembly forms an important part of the coating-material path on the applicable Impact 740 Low Rider configuration. It works with the sprayer’s pumping system to move material from the supply container toward the fluid section and provides the applicable return path used during priming, circulation, flushing, and pressure-relief procedures.
Problems in this area can contribute to difficult priming, loss of prime, restricted material intake, air entering the system, or inconsistent material delivery. For accurate replacement-part selection, use the P/N 805-296 exploded diagram and match the required callout with the exact Titan OEM part number.
What Does the Impact 740 Low Rider Siphon Assembly Do?
The siphon side of an airless sprayer provides the material-intake path between the coating supply and the pump. During operation, the pump must be able to draw material through this path without excessive restriction or unwanted air entering the system.
The assembly also works with the applicable return path during priming, flushing, and pressure-relief operations. For reliable operation, the intake and return components must remain correctly installed, unobstructed, properly connected, and suitable for the specific Impact 740 configuration.
Impact 740 Low Rider Siphon Areas to Inspect
Exact component names, quantities, and locations should be confirmed from the applicable Titan P/N 805-296 exploded parts diagram and parts listing.
Inspect applicable siphon and intake components for blockage, coating buildup, physical damage, loose connections, deterioration, or conditions that may restrict material flow.
Check the applicable intake screening or straining area for dried coating, debris, contamination, damage, or restriction that may interfere with normal priming and material supply.
Inspect applicable return components for blockage, damage, incorrect positioning, loose connections, or other conditions that may affect priming, circulation, or flushing.
Check applicable fittings, clamps, connectors, seals, and attachment points for looseness, leakage, damage, deterioration, or possible air entry.
Find Your Impact 740 Low Rider Siphon Parts Faster
Avoid selecting siphon components by appearance alone. Confirm the sprayer configuration, assembly number, diagram callout, and exact Titan OEM part number before purchasing.
Verify that the machine being serviced is the applicable Titan Impact 740 airless sprayer.
Verify that your Low Rider configuration corresponds with the applicable P/N 805-296 siphon assembly documentation.
Find the required component on the exploded siphon drawing and identify its numbered reference.
Match the callout with the Titan OEM part number and verify the required quantity and adjoining components.
Impact 740 Difficult to Prime or Repeatedly Losing Prime?
Begin by checking the coating supply and complete siphon path. Look for restricted intake areas, dried material, debris, loose connections, damaged components, possible air entry, or other conditions that may prevent the pump from receiving a steady material supply.
If the siphon system appears serviceable but priming or pressure problems continue, inspect the fluid section and other applicable parts of the material path before replacing components.
Impact 740 Siphon Assembly Inspection Guide
| Symptom | Inspect First | What to Check |
|---|---|---|
| Sprayer will not prime | Material supply and intake path | Material level, blockage, contamination, intake restriction, loose connections and possible air entry |
| Sprayer repeatedly loses prime | Siphon connections | Loose fittings, damaged components, deterioration, leaks and conditions that may allow air into the intake path |
| Material flow is restricted | Intake and screening areas | Dried coating, debris, contamination, blockage, damaged intake components and material condition |
| Priming flow is abnormal | Return path | Blocked or damaged return components, incorrect positioning and related flow-path conditions |
| Visible material leakage | Connections and fittings | Loose connections, damaged fittings, seals, clamps, tubing or adjoining components |
| Pressure remains inconsistent | Complete material path | Siphon restriction, air entry, fluid-section condition, filter restriction and downstream equipment |
Siphon Assembly Problem or Another Impact 740 System?
Priming and material-delivery symptoms can originate in several parts of the sprayer. Identify where the problem begins before selecting replacement components.
Inspect when the sprayer struggles to draw coating, repeatedly loses prime, has restricted intake flow, or may be pulling air into the material path.
Inspect when the material supply is reaching the pump but pressure generation, valve operation, sealing, leakage, or pumping performance remains abnormal.
Inspect when the pump is operating but downstream material flow appears restricted or filtration-related contamination is suspected.
Inspect downstream equipment when material reaches the pressurized side normally but spray delivery or spray pattern remains restricted.
Impact 740 Low Rider Siphon Service Guidance
Prevent dried coating, debris, and contamination from accumulating in applicable intake and screening areas where they can restrict material flow.
Check applicable fittings, clamps, connections, seals, and tubing for looseness, deterioration, damage, leakage, or possible air entry.
Follow Titan's applicable flushing and storage procedures to help prevent coating residue from drying inside the siphon, return, pump, and downstream fluid system.
Find the Correct Impact 740 Parts Section
| Repair Area | Parts Section | Typical Use |
|---|---|---|
| Material intake & return | Low Rider Siphon Assembly | Siphon, intake, return, fitting and related material-path components |
| Pump & pressure generation | Fluid Section Assembly | Pump, valve, sealing and fluid-handling components |
| Fluid filtration | Filter Assembly | Filter, housing, sealing and related downstream fluid-path components |
| Mechanical power transfer | Drive Assembly | Drive and related mechanical components |
| Low-profile frame & mobility | Low Rider Cart | Frame, wheel, handle, support and mounting components |
| Primary machine components | Main Assembly | Components identified on the main machine drawing |
Service the Impact 740 Siphon Assembly Safely
Before inspecting, disconnecting, or servicing siphon, return, pump, or related fluid-path components, shut down the Impact 740, disconnect electrical power, and follow Titan's complete pressure-relief procedure. Never loosen a pressurized fluid connection.
Follow applicable Titan instructions for priming, flushing, disassembly, cleaning, inspection, installation, and testing. Verify that all intake and return components are correctly installed and securely connected before returning the sprayer to service.
Confirm the Correct Impact 740 Siphon Part Before Ordering
Siphon tubes, return components, fittings, clamps, and related intake parts can look similar across Titan sprayers while differing by machine configuration or part number. Do not rely on appearance alone to determine fitment.
Confirm the Impact 740 Low Rider configuration and applicable P/N 805-296 Siphon Assembly, locate the component on the exploded drawing, and match its numbered callout with the exact Titan OEM part number and required quantity before purchasing.
Explore More Titan Impact 740 Parts
Move between the Impact 740 Low Rider siphon system, Low Rider cart, fluid section, filter assembly, drive system, main machine, and complete Impact parts category to locate the genuine Titan OEM components required for your repair.
Shop Titan Impact 740 Low Rider Siphon Parts

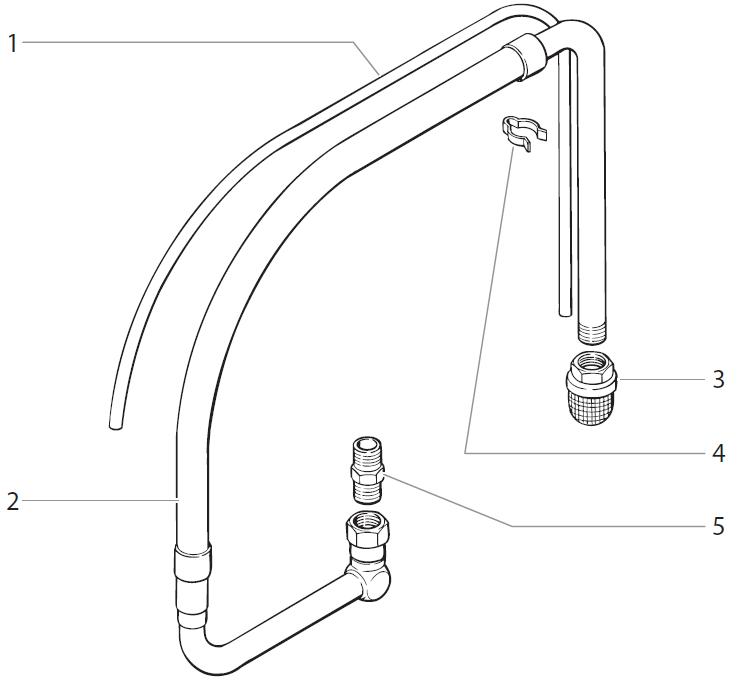

Use the P/N 805-296 exploded siphon assembly diagram to locate the component you need, match its numbered callout with the exact Titan OEM part number, verify the required quantity, and order the correct replacement for your Impact 740 Low Rider.
