Titan Impact 410 Drive Assembly Parts
Find genuine OEM Titan Impact 410 Drive Assembly Parts for servicing the mechanical drive system of your Impact 410 airless sprayer. Use the exploded drive-assembly diagram to identify the required component, locate its numbered callout, and match it with the corresponding Titan OEM part number before ordering.
Keep Your Impact 410 Drive System Working Properly
The drive assembly transfers mechanical power through the sprayer so the pumping system can operate. Components in this area work together under repeated load, making correct alignment, secure mounting, proper lubrication where specified, and serviceable drive components important to dependable operation.
If the sprayer develops unusual mechanical noise, vibration, irregular drive movement, or other drive-related symptoms, inspect the complete assembly rather than selecting a replacement by appearance alone. Use the Impact 410 exploded diagram and exact Titan part number to identify the required component.
What Does the Impact 410 Drive Assembly Do?
The drive system forms the mechanical connection between the sprayer's power source and pumping mechanism. As the sprayer operates, the drive components transmit and convert motion so the fluid section can cycle and move coating through the system.
Wear or damage within the drive assembly can affect mechanical operation and may place additional stress on related components. Accurate diagnosis should therefore include the drive components, mounting points, mating surfaces, hardware, and the systems connected to the drive.
Drive Assembly Components to Inspect
Refer to the Impact 410 exploded drive-assembly diagram for the exact components used in your sprayer. Depending on the repair, inspect the affected part together with adjacent drive-system components.
Inspect applicable gears and related power-transfer components for abnormal wear, damaged surfaces, contamination, or other visible deterioration.
Check applicable bearings, shafts, interfaces, and mating surfaces for wear, looseness, binding, or damage.
Inspect applicable housings, mounting locations, brackets, and structural interfaces for damage or looseness.
Verify that applicable fasteners, retainers, washers, and related hardware are present, correctly positioned, and serviceable.
Find Your Impact 410 Drive Parts Faster

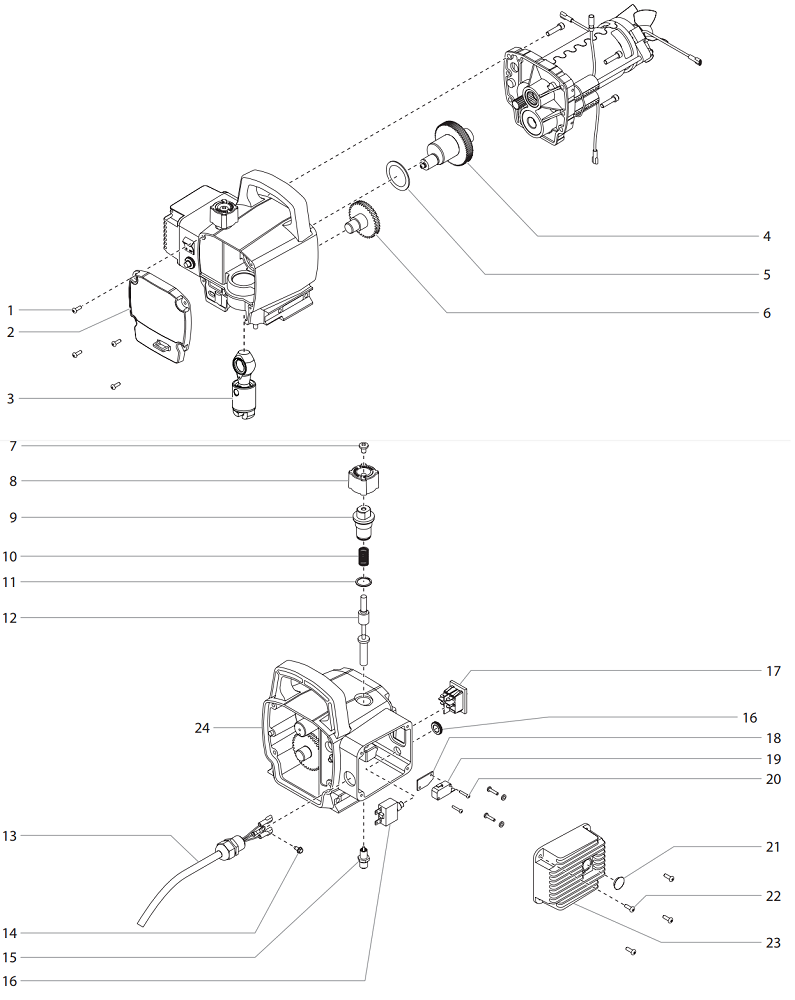

Start with the Impact 410 Drive Assembly exploded diagram. Follow the component from its physical location on the sprayer to its numbered callout and corresponding Titan OEM part number.
Determine which drive-system component or area requires inspection, service, or replacement.
Find the component on the Impact 410 Drive Assembly exploded drawing.
Match the numbered diagram reference with the corresponding Titan OEM part number.
Confirm the Impact 410 model, assembly diagram, callout, and exact Titan part number before ordering.
Hearing Unusual Noise from Your Impact 410?
Unusual mechanical noise, vibration, binding, or irregular movement should be diagnosed before replacing individual components. Inspect the drive assembly for visible wear, loose hardware, damaged mating surfaces, contamination, or components that are not moving as intended.
Symptoms may also originate outside the drive assembly, so use the appropriate Impact 410 service information to isolate the problem before ordering replacement parts.
Impact 410 Drive Assembly Inspection Guide
| Symptom | What to Inspect | Possible Condition |
|---|---|---|
| Unusual mechanical noise | Drive components, bearings, mating surfaces and hardware | Wear, looseness, damage, contamination, or misalignment |
| Excessive vibration | Mounting points, fasteners, housing and connected components | Loose hardware, worn interface, or damaged component |
| Binding or irregular movement | Drive train, bearings, shafts and mating areas | Wear, contamination, damage, or mechanical interference |
| Visible component damage | Affected part and adjoining drive components | Mechanical wear, damaged interface, or related component failure |
Drive Assembly Service Guidance
Check related drive components, mating surfaces, mounting hardware, and interfaces whenever the assembly is opened for service.
Prevent dirt, dried coating, and other contamination from entering mechanical interfaces during disassembly and repair.
Follow applicable Titan instructions for disassembly, lubrication where specified, component installation, adjustment, and reassembly.
Drive Assembly Part or Another Impact 410 Component?
Choose the parts diagram according to the location and function of the component. If your required part does not appear in the Drive Assembly diagram, move to the appropriate Impact 410 assembly before selecting a replacement.
| Repair Area | Start Here | Identification Method |
|---|---|---|
| Mechanical drive component | Drive Assembly | Drive diagram + OEM part number |
| Pump / fluid-handling component | Fluid Section Assembly | Fluid-section diagram + OEM part number |
| Material-intake component | Suction Set Assembly | Suction-set diagram + OEM part number |
| Primary machine component | Main Assembly | Main diagram + OEM part number |
Explore More Titan Impact 410 Parts
If your repair extends beyond the drive assembly, move directly to the related Impact 410 parts section or return to the complete Impact parts catalog.
Confirm the Correct Impact 410 Drive Part Before Ordering
Gears, bearings, housings, fasteners, motor-related components, and other mechanical parts can look similar across different Titan sprayer models. Visual similarity alone should not be used to establish compatibility.
Confirm the Impact 410 model, use the correct Drive Assembly diagram, identify the required component by its numbered callout, and match it with the exact Titan OEM part number before purchasing.
Shop Titan Impact 410 Drive Assembly Parts
Use the exploded drive-assembly diagram to identify the genuine Titan OEM component your Impact 410 requires, verify its callout and part number, and select the correct replacement for your repair.
Find Impact 410 Drive Assembly PartsTitan Impact 410 Drive Assembly Parts FAQs
What does the Titan Impact 410 drive assembly do?
The drive assembly transfers mechanical power through the sprayer so the pumping mechanism can cycle and move coating through the fluid system.
How do I find the correct Impact 410 drive part?
Locate the component on the Impact 410 Drive Assembly exploded diagram, identify its numbered callout, and match that reference with the corresponding Titan OEM part number.
What should I inspect if my Impact 410 makes unusual mechanical noise?
Inspect applicable drive components, bearings, mating surfaces, housings, mounting points, fasteners, and connected components for wear, looseness, contamination, binding, or visible damage.
Should I inspect other parts when replacing a drive component?
Yes. Inspect applicable adjoining drive components, mating surfaces, bearings, mounting hardware, and interfaces for related wear or damage before reassembly.
Are these genuine Titan OEM Impact 410 parts?
AllTitanParts specializes in genuine Titan OEM replacement parts. Verify each drive component using the correct Impact 410 diagram and exact Titan part number before ordering.
Can I identify an Impact 410 drive component by appearance?
No. Similar-looking mechanical components may have different applications or specifications. Use the exploded diagram, numbered callout, and exact Titan OEM part number for identification.
Where can I find other Titan Impact 410 replacement parts?
Browse the complete Impact 410 parts category for the Main Assembly, Fluid Section Assembly, Suction Set Assembly, Drive Assembly, and other applicable machine sections.
