GPX 80 Fluid Section Assembly

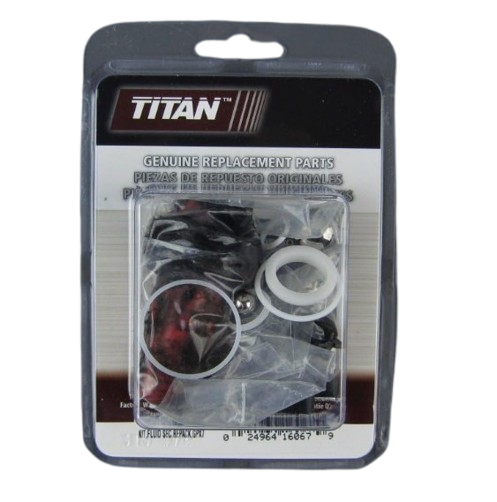

Titan 0509909 Repacking Kit

Item No: -

Part #: 0509909

Part number 0509909 is a repacking kit containing all necessary seals, packings, and gaskets to ...

Retail Price: $153.80

You save: $19.22 (12.50%)

Our Price: $134.58

QTY:

Titan 700-603A Upper Packing Assembly

Item No: 3

Part #: 700-603A

Titan 700-603A Upper packing assembly replaces Titan 700-603 / 0509125a ...

$20.00

QTY:

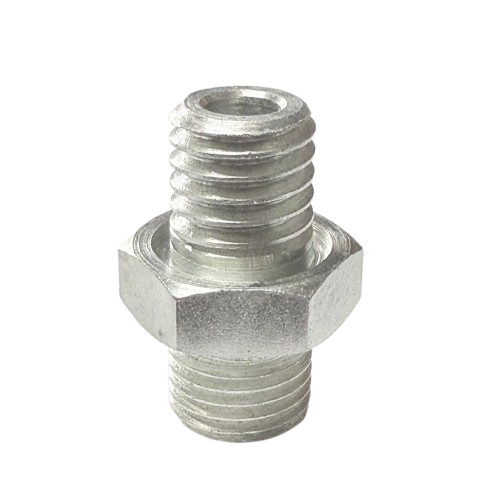

Titan 0509595 Fitting 1/2-12 X 1/4 NPS M (can be ordered as Titan 490-109)

Item No: 5

Part #: 0509595

Titan 0509595 Fitting 1/2-12 X 1/4 NPS M is replaced by Titan 490-109 Titan 0509595 Fitting 1/2-12 ...

Retail Price: $39.20

You save: $0.78 (1.99%)

Our Price: $38.42

Discontinued by Manufacturer

Titan 0509585 Transducer Gasket (Replaces Titan 700-804)

Item No: 6

Part #: 0509585

Part number 0509585 is a transducer gasket designed for sealing pressure transducer installations in...

$3.80

QTY:

Titan 730-505 Pump Housing

Item No: 7

Part #: 730-505

Part 730-505 is a replacement pump housing used in the fluid section of compatible airless spray...

Retail Price: $140.70

You save: $14.63 (10.40%)

Our Price: $126.07

QTY:

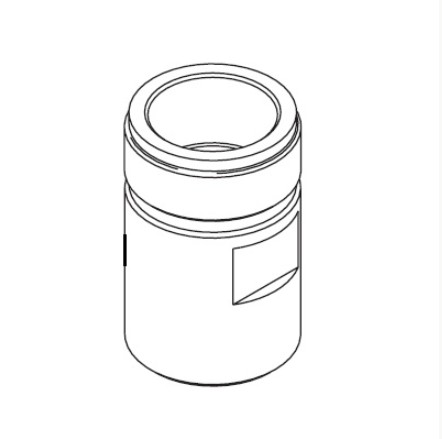

Titan 0509593 Foot Valve Housing

Item No: 8

Part #: 0509593

Part number 0509593 is a foot valve housing that encloses and supports the foot valve components...

Retail Price: $179.80

You save: $22.47 (12.50%)

Our Price: $157.33

QTY:

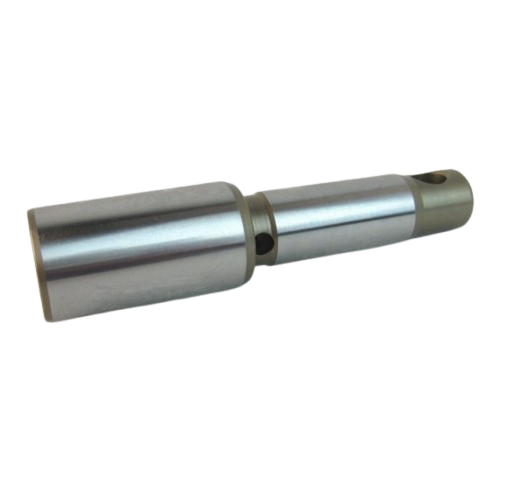

Titan/SprayTech 0551537 Piston Rod (Aftermarket from BEDFORD)

Item No: 9

Part #: 0551537

Titan/SprayTech 0551537 Piston Rod is a genuine OEM replacement part designed for various Titan and ...

$93.00

QTY:

Titan 50164 Outlet Valve Ball

Item No: 12

Part #: 50164

Part 50164 is a replacement outlet valve ball for a wide range of compatible spray equipment. Th...

$3.80

QTY:

Titan 13481 Outlet Valve Retainer (replaces Titan 704-587)

Item No: 14

Part #: 13481

Part 13481 is a replacement outlet valve retainer for compatible spray equipment. This component...

$18.80

QTY:

Titan 0509590 Piston Bushing

Item No: 15

Part #: 0509590

Part number 0509590 is a genuine piston bushing used in Helix, Impact, Impact X, RentS...

Retail Price: $41.30

You save: $3.14 (7.60%)

Our Price: $38.16

QTY:

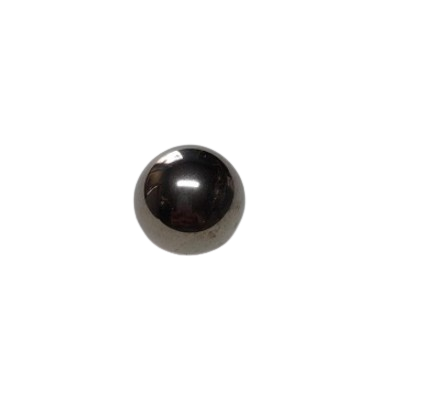

Titan 0509583 ball (can be ordered as Titan 762-145)

Item No: 17

Part #: 0509583

Titan 0509583 ball is a 0.625 dia stainless steel is replaced by Titan 762-145. This stainless stee...

$19.10

Discontinued by Manufacturer

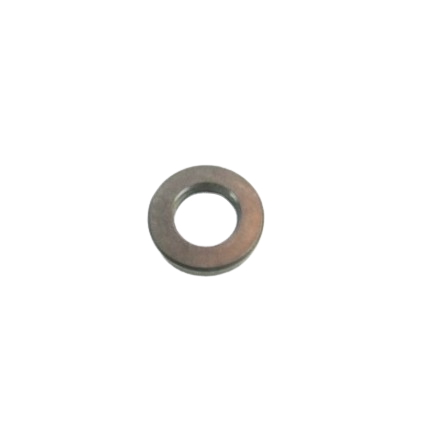

Titan 0551534 Intake Valve Seat

Item No: 19

Part #: 0551534

Titan 0551534 Intake Valve Seat is an OEM replacement part designed for Titan sprayers. It ensure...

$0.00

Discontinued by Manufacturer

Titan 0509593 Foot Valve Housing

Item No: 21

Part #: 0509593

Part number 0509593 is a foot valve housing that encloses and supports the foot valve components...

Retail Price: $179.80

You save: $22.47 (12.50%)

Our Price: $157.33

QTY:

Titan / SprayTech 0551536 Piston Assembly

Item No: 22

Part #: 0551536

0551536 is a piston assembly used in the fluid pump of compatible RentSpray and SprayT...

Retail Price: $220.20

You save: $30.61 (13.90%)

Our Price: $189.59

QTY:

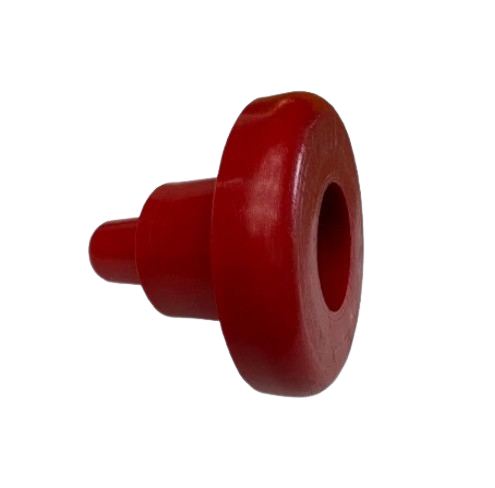

Titan 0509929 Seal Insertion Tool (replaces Titan 755-193)

Part #: 0509929

Part number 0509929 is a seal insertion tool that replaces Titan part number 755-193. This tool ...

$19.00

QTY:

Order Genuine GPX-80 Fluid Section Assembly OEM Components

The GPX-80 Fluid Section Assembly is a key component of the Titan GPX-80 airless paint sprayer, responsible for pumping, pressurizing, and delivering coating material through the spray system. Designed for dependable performance, the fluid section helps maintain steady material flow and consistent spray pressure for residential and light commercial painting projects.

This assembly contains essential pump components including the piston rod, inlet and outlet valves, foot valve housing, packings, pump housing, seals, and fluid passages that work together to move coating material efficiently through the sprayer. Properly functioning fluid section components help reduce pressure loss, improve atomization quality, and support smooth application of paints, primers, stains, and protective coatings.

Built for durability and serviceability, the GPX-80 fluid section is designed to withstand repeated spraying cycles and demanding jobsite conditions. Routine cleaning and replacement of worn internal parts help prevent leakage, suction issues, and inconsistent spray performance while extending the overall life of the sprayer.

FAQs

Loss of prime is commonly caused by worn inlet valves, suction leaks, dried paint buildup, or air entering the fluid section through loose fittings or damaged seals.

Leakage near the piston usually indicates worn packings, damaged seals, or internal wear that allows coating material to bypass sealing surfaces during pump operation.

Surging pressure often occurs when outlet valves become worn, internal packings lose sealing ability, or fluid passages become partially restricted by debris.

Yes. Blocked valves, filters, or fluid passages can restrict coating flow, lower pressure performance, and negatively affect spray pattern consistency.

Heavy materials such as elastomerics, primers, or high-viscosity coatings can leave residue inside valves and packings if the system is not flushed immediately after use.

GPX 80 Fluid Section Assembly

Order Genuine GPX-80 Fluid Section Assembly OEM Components

FAQs

1. Why is the GPX-80 fluid section losing prime during startup?

2. What causes fluid leakage around the piston area?

3. Why does the sprayer surge or pulse while spraying?

4. Can clogged fluid section components reduce spray efficiency?

5. Why is the fluid section harder to clean after spraying thick coatings?
