Shop Titan EPX2355 Upright Cart Assembly Parts
Keep your Titan EPX2355 Piston Pump mobile, stable and organized with genuine Titan EPX2355 Upright Cart Assembly Parts from AllTitanParts. Find OEM replacement wheels, wheel spacers, snap buttons, rubber feet, mounting screws, cord wraps and hub caps for Upright Cart Assembly P/N 0551124. Use the factory exploded diagram to identify the correct replacement and get your sprayer ready for the next job.
Upright Cart Assembly Overview
Buy Genuine Titan EPX2355 Upright Cart Replacement Parts
The Titan EPX2355 Upright Cart Assembly (P/N 0551124) supports the sprayer and provides a wheeled configuration for moving the equipment around a work area. Its components help with cart mobility, frame stability, secure hardware retention and convenient power-cord storage.
Cart components are exposed to routine handling, transport and jobsite conditions. Worn wheels, missing spacers, damaged rubber feet, loose fasteners or broken retaining components can make the sprayer harder to move or less stable when parked.
AllTitanParts lists eight individually purchasable OEM parts for this assembly. The numbered factory diagram helps identify the correct component so you can replace damaged cart hardware without unnecessarily replacing unrelated sprayer components.
OEM Parts Directory
Titan EPX2355 Upright Cart Assembly Parts List

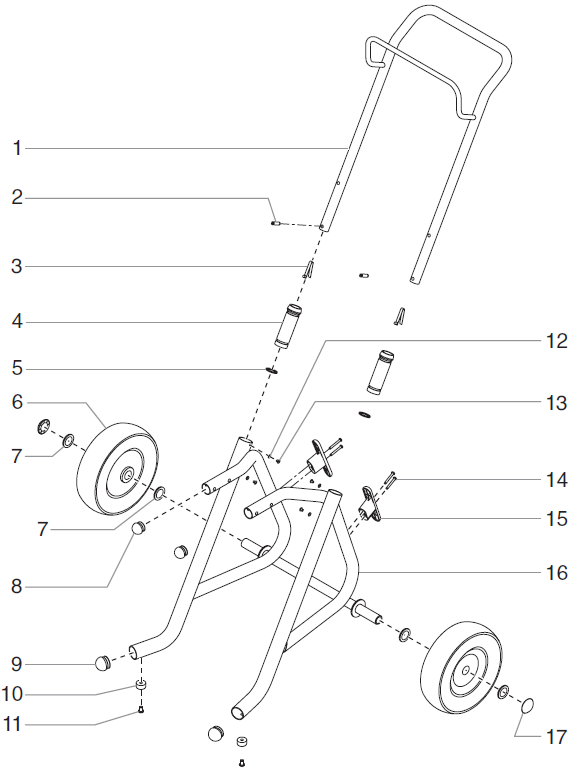

These eight products are listed for the EPX2355 Upright Cart Assembly. Match the diagram reference and Titan OEM part number before ordering.
| Diagram Ref. | Titan OEM Part Number | Replacement Part Description |
|---|---|---|
| 3 | 9841504 | Snap Button |
| 6 | 0278373 | Wheel |
| 7 | 0294534 | Wheel Spacer |
| 10 | 13538 | Pad / Rubber Foot |
| 11 | 054458 | Screw |
| 14 | 0507774 | Screw |
| 15 | 0507655 | Cord Wrap |
| 17 | 9890104 | Hub Cap, replaces Titan 704-355 |
The diagram may show additional numbered positions. The table includes only the eight products currently listed in this category. Some product records display part numbers without their leading zero; use the full OEM number shown in the product title when searching.
Featured Cart Replacement Components
Shop EPX2355 Wheels, Snap Buttons, Rubber Feet and Hub Caps
DIAGRAM REF. 6
Titan 0278373 Wheel
The Titan 0278373 Wheel is an OEM mobility component used on the upright cart. A damaged or worn wheel can make the sprayer difficult to transport and may cause uneven rolling or unwanted vibration while moving the cart.
Inspect the wheel and its mounting components if the cart rolls poorly, wobbles or has visible wheel damage.
OEM Part Number: 0278373DIAGRAM REF. 7
Titan 0294534 Wheel Spacer
The Titan 0294534 Wheel Spacer is a factory-listed hardware component that helps maintain the specified wheel position within the cart's mounting arrangement.
Inspect the spacer when diagnosing wheel misalignment or missing hardware. Replace it with the correct OEM component when damaged or lost.
OEM Part Number: 0294534DIAGRAM REF. 3
Titan 9841504 Snap Button
The Titan 9841504 Snap Button is an OEM spring-loaded button component used in the cart assembly. It helps retain its associated cart connection in the intended position.
Inspect the button when the associated cart section does not lock or remain secured as intended.
OEM Part Number: 9841504DIAGRAM REF. 10
Titan 13538 Pad / Rubber Foot
The Titan 13538 Pad / Rubber Foot is a support component for the cart's base or leg area. It helps provide contact between the cart and the surface when the equipment is parked.
Replace a missing, cracked or excessively worn foot to restore the intended contact point.
OEM Part Number: 13538DIAGRAM REF. 15
Titan 0507655 Cord Wrap
The Titan 0507655 Cord Wrap provides a designated place to organize the sprayer's power cord during storage and transport.
A damaged or missing cord wrap can make cable storage less convenient. Inspect the cord itself for damage before each use.
OEM Part Number: 0507655DIAGRAM REF. 17
Titan 9890104 Hub Cap
The Titan 9890104 Hub Cap is an OEM wheel-hub component for the upright cart. It is listed as replacing Titan 704-355.
Replace a missing or damaged hub cap with the correct part and verify that the associated wheel hardware is properly assembled.
OEM Part Number: 9890104 | Replaces 704-355Cart Mounting Hardware
Titan 054458 and 0507774 Replacement Screws
The upright cart parts list includes two separate OEM screws: Titan 054458 at diagram reference 11 and Titan 0507774 at diagram reference 14.
Although both components are described as screws, they have different OEM part numbers and diagram positions. Do not assume they are interchangeable. Match the correct screw to its factory-listed mounting location and follow Titan's specified assembly procedure.
Upright Cart Functions
How the EPX2355 Upright Cart Components Work Together
Cart Mobility
The wheel and related hardware support movement of the sprayer around the work area.
Wheel Alignment
The wheel spacer helps position the wheel within its intended mounting arrangement.
Cart Stability
Rubber feet, snap buttons and fasteners contribute to proper support and retention of cart components.
Cord Organization
The cord wrap helps organize the power cable during transport and storage.
Troubleshooting and Repair
Common Titan EPX2355 Upright Cart Problems
Inspect the affected component and its surrounding hardware before ordering a replacement.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Cart is difficult to roll | 0278373 Wheel | Inspect the wheel for wear, damage or interference. |
| Wheel wobbles or sits incorrectly | 0294534 Spacer, 9890104 Hub Cap | Check the wheel position and all associated mounting hardware. |
| Cart connection will not lock | 9841504 Snap Button | Inspect the button for damage and confirm correct engagement. |
| Cart does not sit properly when parked | 13538 Rubber Foot | Inspect the foot and cart structure for damage or missing parts. |
| Cord cannot be stored neatly | 0507655 Cord Wrap | Check the cord wrap for breakage or missing mounting hardware. |
| Loose or missing cart fastener | 054458 and 0507774 Screws | Match the missing fastener to its exact diagram reference. |
OEM Replacement Reference
Titan 9890104 Hub Cap Replaces Titan 704-355
The AllTitanParts upright cart listing identifies Titan 9890104 as the replacement for Titan 704-355.
If your existing wheel-hub component is identified as 704-355, check the EPX2355 upright cart diagram and select the listed 9890104 replacement. This replacement relationship applies specifically to the hub cap.
OEM Buying Guide
How to Order the Correct EPX2355 Upright Cart Parts
Confirm Your Sprayer
Verify the Titan EPX2355 model and record its serial number.
Check the Cart Type
Confirm that your machine uses Upright Cart Assembly P/N 0551124 rather than a different cart configuration.
Match the Diagram
Locate the component and compare its diagram reference with the OEM part number.
Purchase the Part
Order the correct genuine Titan replacement at AllTitanParts.
Preventive Maintenance
Maintain Your Titan EPX2355 Upright Cart Assembly
Inspect Wheels
Check for cracks, excessive wear and restricted rotation before moving the sprayer.
Check Cart Hardware
Inspect wheel spacers, hub caps, screws and snap buttons for correct installation.
Examine Rubber Feet
Replace worn or missing feet that prevent proper cart contact with the floor.
Store the Cord Safely
Use the cord wrap without pulling tightly on the power cable or damaging its insulation.
Related Titan EPX2355 Assemblies
Shop More Titan EPX2355 Piston Pump Parts
EPX2355 Low Boy Cart Assembly
Browse replacement parts for the alternative low-profile cart configuration. Confirm your cart type before ordering.
EPX2355 Main Assembly
Find suction set, siphon tube and return tube replacement components.
EPX2355 Motor Assembly
Shop OEM motor-related replacement parts and protective covers.
EPX2355 Gear Box Assembly
Find mechanical drive parts, pressure controls and associated electrical components.
EPX2355 Fluid Section Assembly
Browse piston pump packings, seals and fluid section repair components.
Titan EPX2355 Piston Pump Parts
Explore all EPX2355 assembly diagrams and OEM replacement part categories.
Titan EPX2355 Cart Assembly Service Safety
Before inspecting or replacing cart hardware, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Place the equipment on a stable surface and support it securely before removing wheels or structural fasteners. Never move the sprayer by pulling on the electrical cord or fluid hose.
Genuine Titan EPX2355 Upright Cart Parts
Order Titan EPX2355 Upright Cart Parts Today
Find genuine Titan wheels, spacers, snap buttons, rubber feet, screws, cord wraps and hub caps for Upright Cart Assembly P/N 0551124.
Shop EPX2355 Upright Cart PartsFrequently Asked Questions
Titan EPX2355 Upright Cart Assembly FAQ
What is the Titan EPX2355 Upright Cart Assembly part number?
The upright cart assembly is identified as Titan P/N 0551124.
How many replacement parts are listed for the EPX2355 Upright Cart?
AllTitanParts currently lists eight individual OEM replacement parts for the EPX2355 Upright Cart Assembly.
What is the Titan EPX2355 upright cart wheel part number?
Titan 0278373 is the OEM Wheel listed at diagram reference 6.
What is the EPX2355 wheel spacer part number?
Titan 0294534 is the Wheel Spacer listed at diagram reference 7.
What is the Titan EPX2355 snap button part number?
Titan 9841504 is the Snap Button listed at diagram reference 3.
Which rubber foot is listed for the EPX2355 Upright Cart?
Titan 13538 is the Pad / Rubber Foot listed at diagram reference 10.
What cord wrap fits the EPX2355 Upright Cart Assembly?
Titan 0507655 is the Cord Wrap listed at diagram reference 15.
Which Titan hub cap replaces 704-355?
Titan 9890104 Hub Cap is listed as replacing Titan 704-355.
What screws are listed for the EPX2355 Upright Cart?
Titan 054458 and Titan 0507774 are separately listed screws. Match each part to its correct factory diagram position.
Can I replace a damaged upright cart wheel separately?
Yes. Titan 0278373 Wheel is listed as an individual replacement component. Check the wheel spacer and hub hardware during the repair.
Are EPX2355 Upright Cart and Low Boy Cart parts interchangeable?
Do not assume interchangeability. The two cart configurations have separate assembly diagrams and part numbers. Confirm compatibility for each component before ordering.
Where can I buy genuine Titan EPX2355 Upright Cart parts?
Shop Titan EPX2355 Upright Cart Assembly Parts at AllTitanParts. For assistance, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding EPX2355 Upright Cart Parts?
Have your Titan EPX2355 model, cart assembly number 0551124 and diagram reference ready when requesting help with part identification or fitment.
