Shop Titan EPX2355 Main Assembly Parts
Restore reliable coating intake and return-fluid routing with genuine Titan EPX2355 Main Assembly Parts from AllTitanParts. Find the OEM 0558672A Suction Set Assembly, 0551556 Return Tube and 0551663 Siphon Tube for your Titan EPX2355 Piston Pump. Use the numbered factory parts diagram to locate your component and order the exact replacement.
Main Assembly Overview
Buy Genuine Titan EPX2355 Piston Pump Main Assembly Parts
The Titan EPX2355 Main Assembly brings together components used in the sprayer's material intake and return-fluid system. The suction assembly and siphon tube provide a path for coating material to enter the pump, while the return tube supports the flow path used during applicable priming and pressure-relief operations.
Maintaining these components helps support consistent material supply and proper fluid routing. Cracked tubing, damaged connections, clogged intake passages or missing components can interfere with priming and sprayer operation. A careful inspection can help determine whether an individual part needs replacement.
AllTitanParts currently lists three genuine Titan OEM parts in this category. Each has its own factory diagram reference and part number, allowing you to identify a targeted replacement without assuming that the entire sprayer or pump requires replacement.
OEM Parts Directory
Titan EPX2355 Main Assembly Parts List

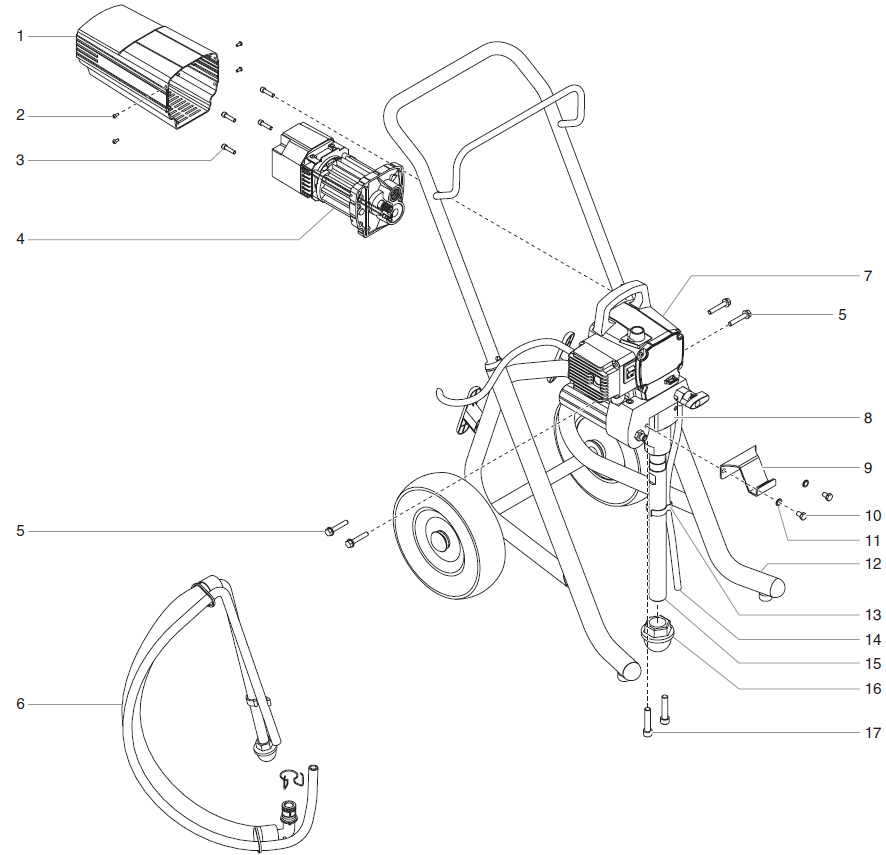

The following products are listed for the Titan EPX2355 Main Assembly. Match the diagram reference and OEM number before ordering.
| Diagram Ref. | Titan OEM Part Number | Product Description |
|---|---|---|
| 6 | 0558672A | Suction Set Assembly |
| 14 | 0551556 | Return Tube (Cart Only) |
| 15 | 0551663 | Siphon Tube |
The exploded diagram may show additional numbered positions. The table includes only the three products currently listed for purchase in this category.
Featured OEM Replacement Parts
Shop Titan EPX2355 Suction Sets, Return Tubes and Siphon Tubes
DIAGRAM REFERENCE 6
Titan 0558672A Suction Set Assembly
The Titan 0558672A Suction Set Assembly is an OEM component used to draw coating material from its container toward the sprayer's pumping system. The suction arrangement is important to maintaining an adequate supply of material during priming and spraying.
Inspect the suction set when diagnosing damaged intake connections, air entry, poor material pickup or restrictions in the supply path. Confirm the complete assembly's included components before purchasing.
OEM Part Number: 0558672A
Find Titan 0558672ADIAGRAM REFERENCE 14
Titan 0551556 Return Tube (Cart Only)
The Titan 0551556 Return Tube is a factory-listed component for the applicable cart configuration. It provides a return-fluid pathway associated with the sprayer's priming and fluid-routing system.
Inspect the return tube for cracks, kinks, loose connections or coating buildup. Because this product is specifically labeled Cart Only, confirm that it matches your EPX2355 configuration before ordering.
OEM Part Number: 0551556
Find Titan 0551556DIAGRAM REFERENCE 15
Titan 0551663 Siphon Tube
The Titan 0551663 Siphon Tube is an OEM fluid-intake component that helps transfer coating material from the supply container into the sprayer's suction system.
A damaged or obstructed siphon tube may interfere with material pickup and priming. Inspect its condition and connections, and verify the diagram reference before installing a replacement.
OEM Part Number: 0551663
Find Titan 0551663Understanding the Main Assembly
How Titan EPX2355 Main Assembly Components Work Together
Material Pickup
The suction components provide the intake path for coating material entering the sprayer.
Fluid Supply
The siphon tube helps carry coating material from the supply container toward the pump.
Return Flow
The return tube provides the designated return-fluid path for applicable cart-equipped units.
Targeted Repair
Individual OEM replacement listings allow damaged intake or return components to be identified separately.
Troubleshooting and Repair
Common Titan EPX2355 Main Assembly Problems
The symptoms below may also involve the fluid section, priming valve or other sprayer systems. Diagnose the cause before replacing a part.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Pump will not prime | 0558672A, 0551663 | Check the suction path for air leaks, obstructions or damaged connections. |
| Poor material pickup | 0551663, 0558672A | Inspect the siphon tube and suction set for blockages or physical damage. |
| Return-fluid leakage | 0551556 | Inspect the return tube and its connections for cracks or loose fittings. |
| Restricted return flow | 0551556 and priming system | Check for a kinked or blocked return path and inspect the associated priming valve. |
| Intermittent loss of prime | 0558672A, 0551663 and fluid section | Check suction sealing and inspect the pump's inlet valve components. |
Important Fitment Information
Confirm Your EPX2355 Configuration Before Ordering
The 0551556 Return Tube is specifically described as Cart Only. Confirm the sprayer's configuration and the appropriate factory diagram before purchasing it.
The 0558672A Suction Set Assembly and 0551663 Siphon Tube are separately listed products. Do not assume that an individual tube and a complete suction set contain identical components or can be substituted for one another.
OEM Buying Guide
How to Choose the Correct Titan EPX2355 Main Assembly Part
Confirm the Model
Verify that your sprayer is a Titan EPX2355 Piston Pump and note the serial number.
Identify the Component
Determine whether you need the suction set, return tube or siphon tube.
Match the Diagram
Compare the numbered diagram reference with the exact Titan OEM part number.
Order at AllTitanParts
Select the correct replacement and follow the manufacturer service instructions during installation.
Preventive Maintenance
Maintain Your Titan EPX2355 Main Assembly
Inspect Suction Connections
Check intake connections for damage or conditions that could allow air into the suction system.
Keep Intake Passages Clear
Clean the suction path and associated intake components according to Titan's approved procedure.
Examine Return Tubing
Inspect the return tube for kinks, cracks and damage before each use.
Flush and Store Properly
Flush after spraying and follow Titan's recommendations for cleaning and pump storage.
Related Titan EPX2355 Assemblies
Shop More Titan EPX2355 Piston Pump Parts
EPX2355 Suction Set Assembly
Browse individual siphon tubes, bypass hoses, inlet filters, O-rings and retaining clips.
EPX2355 Fluid Section Assembly
Shop piston pump components, packings, seals and inlet and outlet valve repair parts.
EPX2355 Gear Box Assembly
Find mechanical drive components, gearbox hardware and associated control parts.
EPX2355 Motor Assembly
Find OEM motor-related components and electrical covers for the EPX2355.
Titan EPX2355 Piston Pump Parts
Return to the complete EPX2355 model directory and explore all seven assembly categories.
Titan EPX2355 Service Safety
Before inspecting or replacing sprayer components, switch off the unit, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen pressurized fluid connections or attempt to stop a high-pressure leak with your hand. Inspect tubing and fittings before returning the sprayer to service, and follow the manufacturer's approved installation instructions.
Genuine Titan EPX2355 OEM Parts
Order Titan EPX2355 Main Assembly Parts Today
Shop genuine Titan 0558672A Suction Set Assembly, 0551556 Return Tube and 0551663 Siphon Tube replacements at AllTitanParts.
Shop EPX2355 Main Assembly PartsFrequently Asked Questions
Titan EPX2355 Main Assembly FAQ
How many replacement parts are listed for the Titan EPX2355 Main Assembly?
AllTitanParts currently lists three OEM replacement parts for the EPX2355 Main Assembly.
What is the Titan EPX2355 Suction Set Assembly part number?
Titan 0558672A is the Suction Set Assembly listed at diagram reference 6.
What is the Titan EPX2355 Return Tube part number?
Titan 0551556 is the Return Tube listed at diagram reference 14. The product is specifically labeled Cart Only.
What is the Titan EPX2355 Siphon Tube part number?
Titan 0551663 is the Siphon Tube listed at diagram reference 15.
What does the Titan 0558672A Suction Set Assembly do?
It provides an intake path that allows the sprayer to draw coating material toward the pump during priming and spraying.
What does Cart Only mean for Titan 0551556?
The listing identifies the return tube for an applicable cart configuration. Verify your machine's configuration and diagram before ordering.
Why is my Titan EPX2355 not priming?
Possible causes include blocked suction passages, air leaks at intake connections, damaged suction tubing or problems within the pump's inlet valve system.
Can a damaged siphon tube affect sprayer performance?
Yes. A damaged, leaking or obstructed siphon tube can interfere with coating intake and make priming difficult.
Can I replace the EPX2355 return tube separately?
Yes. Titan 0551556 Return Tube is listed as an individual replacement product for the applicable cart configuration.
Are the EPX2355 Suction Set Assembly and Siphon Tube the same part?
No. Titan 0558672A is listed as a Suction Set Assembly, while Titan 0551663 is listed as a Siphon Tube. Confirm the required component and assembly contents before ordering.
How do I identify the correct EPX2355 Main Assembly part?
Use the numbered exploded diagram, match the reference to the OEM part number and verify the sprayer's model and configuration.
Where can I buy genuine Titan EPX2355 Main Assembly Parts?
Shop Titan EPX2355 Main Assembly Parts at AllTitanParts. For part identification assistance, call 713-931-0006.
