Elite 3500

Buy Elite 3500 Gas Sprayer Spare Parts Online

The Elite 3500 is a gas-powered, airless, high-pressure paint sprayer designed for contractors and professionals needing a rugged, reliable sprayer for small to medium-sized projects. Built around Titan’s proven hydraulic “PermaStroke” pump system, the Elite 3500 delivers consistent pressure and smooth paint flow with minimal maintenance and is backed by a lifetime warranty on the fluid pump.

Ideal for spraying a wide range of coatings from latex to enamels, stains, lacquers, primers, and sealers, the Elite 3500 gives you the power and flexibility to handle exterior/interior painting, maintenance jobs, and light commercial coatings with confidence.

It ships complete (for example, High-Rider model 537012) with everything you need to start: a spray gun (RX-Pro), a reversible tip, and 1/4" × 50' airless hose.

Key Features

• PermaStroke™ Hydraulic Pump Technology — Pump delivers consistent fluid displacement without pistons, packings, or clutches that wear out, giving you high durability and less downtime.
• FlatLine Pulsation Dampener™ — eliminates pressure fluctuations and “deadband” for smoother operation and an even finish.
• Sureflo™ Pusher Valve for Easy Priming — simplifies priming and makes startup quicker and easier.
• Gas-Powered, Honda® Engine — mobile, self-contained power you can take to job sites without needing external power; smooth running with low vibration and “low oil” protection.
• High Pressure & Versatility — pumps up to 3300 psi, with a max delivery rate of 0.75 GPM (≈ 2.8 L/min), supporting tip sizes up to 0.027″ (for 1-gun), great for coatings ranging from thin stains to heavier enamels.
• Field-Serviceable Design — components like inlet and outlet valves (and other wear parts) are designed for quick replacement in the field with common tools.
• Built for Durability & Lifetime Use — robust build with a sealed hydraulic system, designed to give a long service life under job-site conditions.



Applications

The Elite 3500 is well-suited for:

• Residential painting: interior walls, trim, doors; exterior siding, fences.
• Property maintenance: repainting, touch-ups, refinishing.
• Light to mid-size commercial jobs: light-duty commercial coatings, maintenance coatings, sealing, and priming.
• Spraying a variety of materials: latex paints, stains, lacquers, enamels, primers, sealers, and other standard architectural coatings.
• Situations where mobility, reliability, and ease of maintenance are important — e.g., multiple job sites, jobs without easy access to electricity.



FAQ’s

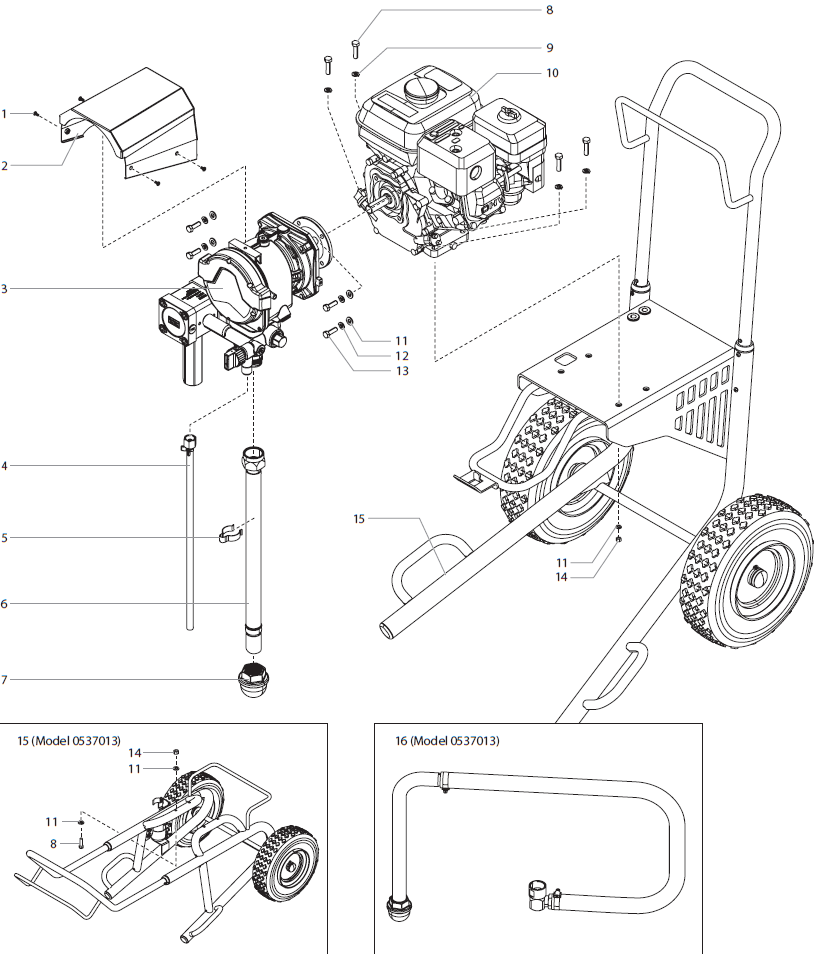

1. How do I know if the Elite 3500 Cart Assembly Model 0537013 is the correct replacement for my sprayer?

The Elite 3500 Cart Assembly Model 0537013 is specifically designed for the Titan Elite 3500 Airless Sprayer. You can confirm compatibility by checking your sprayer’s model number or referencing your original parts manual. If your unit is labeled “Elite 3500,” this cart assembly will be the proper replacement.

2: What parts wear out most often and may need replacement?

Because coatings (especially thicker or abrasive materials) are abrasive, typical wear “hot spots” are the inlet and outlet valves, as well as seals and O-rings. If you notice performance loss, poor suction, or erratic pressure, that’s usually a sign that valves or seals may be worn.

3: Is it difficult to replace major components like the outlet valve or filter?

Not at all, the Elite 3500 is designed to be field-serviceable. According to the service manual, outlet/inlet valves are “cartridge-style” and can be changed out in less than 5 minutes using common tools. However, some parts (like the pressure control valve) may need to be serviced by an authorized service center.

4: What should I do if pressure drops or the sprayer fails to suction paint properly?

First, stop and relieve pressure as per safety procedures. Then inspect the inlet and outlet valves and seals: worn or damaged valves/ seals are a common cause of suction or pressure issues. Replace them if worn. Also, check filters for clogs and ensure O-rings/seals are intact.

5: What role does the Pusher Stem Assembly play in the Elite 3500 sprayer and when should I replace it?

The pusher stem assembly is a critical internal component of the sprayer’s fluid-pump system: it pushes the inlet valve, helping to draw paint into the pump and maintain proper fluid flow and pressure.
