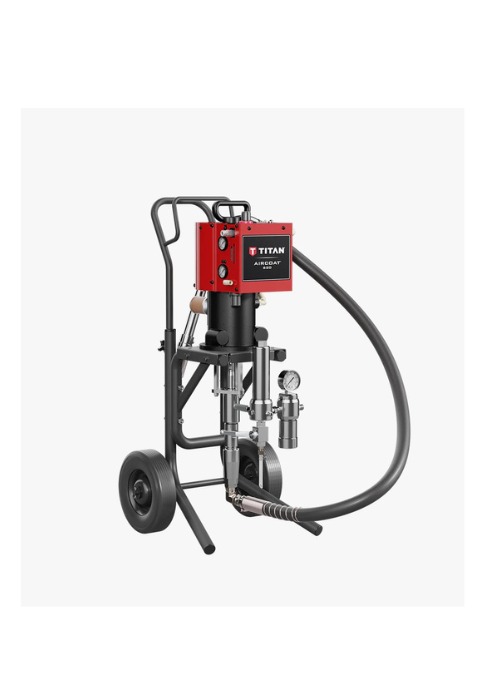

The PowrCoat main assembly page is where the suction side lives: the inlet screen and suction set that feed paint to the pump, plus the muffler kit, wheels and mounting hardware. The 730 to 975 share one list, the 1045 to 1072 have a shorter one with different screen and suction set numbers, and the 630 has its own page with a suction set filter and siphon tubes.
What the main assembly page holds
Most PowrCoat owners go to the pump or air motor diagram when something fails. The main assembly diagram is the one people forget, and it holds the small parts that cause trouble when they are missing: the inlet screen that stops debris entering the pump, the suction set that draws paint from the pail, the muffler, and the wheels and fasteners that hold the frame together.
PowrCoat main assembly pages by model group
| Models | Page | Parts listed | Key parts |
|---|---|---|---|
| 730, 745, 940, 960, 975 | Main Assembly (each model has its own page, same layout) | 15 | 0509762A, 0533237A, 830-340, 0533325, 670-105, 0533203A |
| 1045, 1064, 1072 | Main Assembly | 7 | 0533968, 0533258, 0533259 |
| 630 | Main Assembly Parts | 14 | 0533443, 0533247, 0533248, 830-340 |
The 975 page is at /powrcoat-975-main-assembly, and the 730, 745 and 960 follow the same naming as the 940 page. Part counts are what the site's diagram pages list.
The suction side
The suction set draws coating from your pail or drum into the pump, and a screen on it keeps debris out. Strain your coating, and clean the inlet screen after every job: partly blocked filters cause pressure loss, pulsing and spitting.
Suction-side parts by model group
The 1045 to 1072 pages also list 0533259, a suction set assy with no callout number, next to the callout 7 suction set. The page does not say how the two differ, so confirm with our parts team before ordering if you are unsure which your unit carries.
The muffler
The 830-340 muffler kit is listed on the main assembly pages of the 630, the 730, 745, 940, 960 and 975, and the AirCoat 423 and 620. The 1045 to 1072 main assembly pages do not list one. We do not give a noise figure, because Titan does not publish one in the data we hold.
Frame and hardware
On the 730 to 975 pages the frame and cart are the small items on the list. Titan describes the PowrCoat as having 16 in. pneumatic tires, lift handles and a crane hook. The wheel itself is 670-105, held by the 590-100 retaining ring, and the complete cart is listed as 0533203A. We have not matched the wheel part number to the tire size, so confirm that on the diagram if you are replacing a wheel rather than a tire.
- 730-334 hose tie clamp.
- 0533325 bypass tube and 830-345 45 degree elbow.
- 9885571 plug, 870-003 washer, 9805429 screw, 0509285 flat washer and 862-410 locknut.
For the 940 only, Titan's manual gives a maximum tire pressure of 30 psi. Check the figure in your own manual if you have another model.
1045 to 1072 differences
These three models have a short main assembly page: the suction set, the inlet screen and a handful of fasteners (9805472 screw, 9822649 washer, 9812337 nut, and a 9822650 lock washer on the 1072). The wheels and spacer are on a separate cart page. The 1072 cart page lists the 670-105 wheel, the 0533863 wheel spacer and a 0533441 cotter pin, and the 1045 and 1064 carts list the same three.
Ordering tips
Pick the page for your model
Use the table above. A 940 inlet screen is not a 1072 inlet screen, and the 630 uses a suction set filter instead.
Match the callout
Find the numbered callout on the diagram and add that part. The suction set variants (16A, 16B, and the uncalled-out 0533259) are the ones to double-check.
Send the model and serial number if anything is unclear
Phone (713) 931-0006. The manuals page has the operating manuals.
Main assembly parts from the guide above:
−8%
−16%
The Short Version
The main assembly page holds the suction set, inlet screen, muffler, wheels and small hardware. Numbers differ across the three groups: 730 to 975, 1045 to 1072, and the 630 on its own. Clean the inlet screen after every job, and order from your own model's page.
