Impact frames show up as three kinds of diagram page: skid assemblies with legs, feet, a cord holder and a drip cup, cart or upright cart pages with a handle and wheels, and low rider pages with a handle weldment, a drip cup and, on larger models, a siphon assembly. Find the page for your model and frame, then match the callout.
Three frames, three sets of parts
Many Impact models are sold on more than one frame, and each configuration has its own part number as a complete unit, such as the 640I skid, 640I high rider and 640I low rider. The frame parts themselves live on separate diagram pages, and what each page lists is different.
What each frame's diagram pages list
| Frame | Typical parts on the page | Example pages |
|---|---|---|
| Skid | Legs, foot rubbers, cord holder, drip cup | Impact 440, 540, 640 and 340/400 skid pages |
| High rider (cart or upright cart) | Handle, cart or cart weldment, wheels, axle caps | Impact 740, 840, 1040, 1140 upright cart pages; 440/540/640 cart page |
| Low rider | Handle weldment, sleeve handle, wheels or hub caps, drip cup; siphon assembly on larger models | Impact 440, 540, 640, 740, 840, 1140 and X 540I low rider pages |
These are diagram groupings. The 340 is skid-based, the 400 has skid and cart pages, and the 410 has stand and cart pages.
Titan does not publish weights for most Impact frames in a form we can verify, so this guide says nothing about which frame is lighter or easier to move. It sticks to what the diagrams list.
Skid

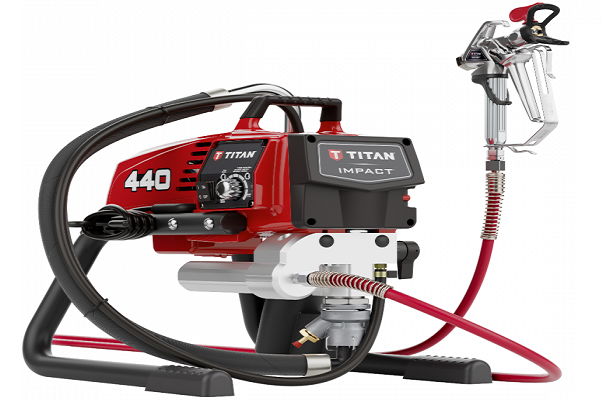

The skid pages are where a sprayer's feet and cord storage are listed. On the Impact 440 skid page, which the 540 and 640 pages mirror, you will find the 805-327 left leg, the 805-328 right leg, the 805-342 foot rubber, the 805-372 cord holder and the 805-343A drip cup.
The 340 and 400 skid pages list the same foot rubber and cord holder, with the 700-1041 drip cup. The Impact 410 has a stand assembly page instead, with left and right leg assemblies and the same cord holder. For the newer line, Titan's skid units carry their own complete-unit numbers, such as 2430897 and 2429069 for Impact X skids.
High rider and upright cart
Larger models list their cart frames as upright cart assemblies, each with its own number:
- Impact 840 upright cart, 0552537A
- Impact 1040 upright cart, 0552591A
- Impact 740 upright cart, 0552524A
- Impact 1140 upright cart, 805-226A
- Impact 440, 540 and 640 cart, 805-282A
The 1040T, 1140 and 1640 upright cart pages also list a cam assembly, a spring and a rubber foot pad, which the smaller cart pages do not. The 440, 540 and 640 cart page is simpler: a cart, a handle weldment, a sleeve handle, a snap button and a wheel. The Impact X models have their own cart pages with a cart weldment and handle kit.
Low rider
Low rider pages combine a cart frame with a drip cup and a handle. The 740 and 840 share a low rider cart, 805-289A, and the 1140 has its own, 805-290A. The 440, 540 and 640 each have a low rider assembly page, and the Impact X 540I has a low cart page.
On the 740, 840 and 1140 the low rider pairs with a siphon assembly, 805-296. The page lists the inlet screen (710-046), siphon tube (0507965A), siphon tube assembly (710-204), an adapter, a hose tie clamp and the return hose. If a low rider will not draw paint, that is the page to open before suspecting the pump.
What differs in the small parts
Wheels and drip cups show how easily a frame part can be ordered wrong. These are the numbers the diagrams list:
Wheels and drip cups by diagram page
| Part | Number | Listed on |
|---|---|---|
| Wheel | 0278373 | 410 cart, 400 cart, 440/540/640 cart, 740 upright cart, 740/840 upright cart 805-227, Impact X carts |
| Wheel | 670-109 | 840 upright cart 0552537A, 1040, 1040T, 1140 and 1640 upright carts |
| Wheel | 800-593 | 740, 840 and 1140 low rider carts |
| Drip cup | 700-1041 | 340 and 400 skids, 410 stand, 740/840/1140 low riders |
| Drip cup | 700-1043 | 440, 540, 640 low riders and X 540I low cart |
| Drip cup | 805-343A | 440, 540, 640 skids |
The 740 upright cart page (0552524A) and the 840 upright page (0552537A) list different wheels, and the 740/840 page 805-227 lists 0278373. Open your own page.
Wheels often carry matching hardware: a wheel spacer, a hub cap or an axle cap and a plug. Before you order, compare the hardware callouts on your page as well as the wheel.
Choosing
Identify the frame on your machine
Skid, upright cart or low rider. If the paperwork has a configuration number, such as 2419039, the part description names the frame.
Open the matching frame page
Start from the Impact sprayer parts page, then your model, then the skid, cart or low rider assembly.
Match the callout
Compare the numbered drawing to the broken part. Wheels, drip cups and handles all differ between pages.
Ask when pages disagree
If your sprayer looks like it uses a mix, call (713) 931-0006 with the model and serial number.
Frame parts named in this guide:
The Short Version
Each frame has its own diagram page, and the small parts do not carry over. Find the page for your model and frame, match the callouts and then add the part.
