Shop Genuine OEM Titan Fine Finish Sprayers
Shop genuine OEM Titan fine finish paint sprayers, precision systems engineered for smooth, professional results on trim, cabinets, doors, furniture, and other detail-focused work. This category groups Titan CapSpray HVLP turbine systems, FlexSpray handheld units, and Maxum spray guns, giving you controlled atomization with minimal overspray and transfer efficiencies up to 90 percent. CapSpray models range from the 3-stage 7.5 PSI turbine to the industry's only 6-stage 11.5 PSI turbine, while FlexSpray Pro 18V delivers the power of a 4-stage turbine in a cordless handheld platform. Select the correct Titan fine finish setup by matching coating requirements, viscosity, gun configuration, and the applicable turbine or handheld platform.
Choose the Correct Titan Fine Finish Sprayer
Choosing fine finish technology is only the first step. Individual Titan fine finish platforms combine different turbines, pressure ranges, gun options, and portability levels, which changes spray control and finish quality. Select by coating + viscosity + required control + gun setup + platform type + exact model number.
A higher-stage turbine does not automatically mean a sprayer is correct for your application, and two fine finish systems are not interchangeable simply because they share the Titan brand. Your coating requirements, finish expectations, and jobsite conditions determine the right platform, and the coating manufacturer's sprayer recommendation should also be checked.
Titan Fine Finish Subcategory Guide
Titan's fine finish lineup spans three primary subcategories: CapSpray HVLP turbine systems, FlexSpray handheld units, and Maxum spray guns. The chart below summarizes key specifications. Confirm the current orderable model number when selecting equipment, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Subcategory / Model | Platform Type | Air Pressure / Turbine | Gun Included | Best Application | Selection Consideration |
|---|---|---|---|---|---|

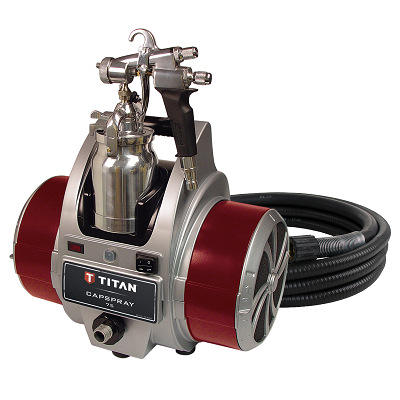

| CapSpray 75 | HVLP turbine system | 3-stage, 7.5 PSI | Maxum II | Medium residential, multi-color coatings | Entry-level turbine for stains and sealers |
| CapSpray 95 | HVLP turbine system | 4-stage, 9.5 PSI | Maxum II | Mid-level projects requiring speed and reliability | Balanced power for diverse coatings |
| CapSpray 105 | HVLP turbine system | 5-stage, 10.5 PSI | Maxum Elite | High-production fine finishing | Higher output for thicker coatings |
| CapSpray 115 | HVLP turbine system | 6-stage, 11.5 PSI | Maxum Elite | Most powerful HVLP atomization available | Industry's only 6-stage turbine |
| CapSpray X 80 | HVLP turbine system | 8.0 PSI turbine | Maxum II | Residential and commercial medium jobs | Lightweight at 9 lbs |
| FlexSpray Pro 18V | Cordless handheld | Jetforce 4-stage equivalent | Integrated | Small to medium finishing and repair work | Cordless freedom with quick-change front ends |

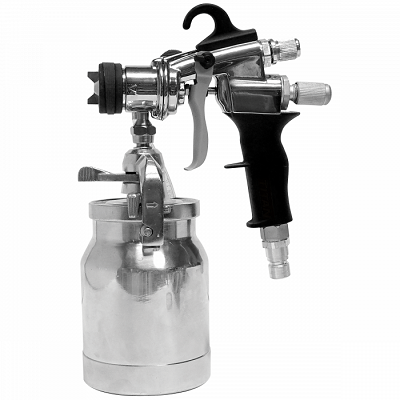

| Maxum II Gun | HVLP spray gun | Gun only | N/A | Light- and heavy-bodied coatings | Non-bleeder to bleeder convertibility |
| Maxum Elite Gun | HVLP spray gun | Gun only | N/A | Pressurized cup and gravity cup use | Reversible fluid chamber design |
How Titan Fine Finish Technology Works
Titan fine finish sprayers use HVLP (High Volume Low Pressure) technology to atomize coating with a high volume of air at low pressure, producing a softer, more controlled spray pattern with minimal overspray and transfer efficiencies up to 90 percent. CapSpray turbine systems use multi-stage tangential turbines to generate atomizing air, while FlexSpray handheld units use Jetforce Technology to deliver the power of a 4-stage turbine in a cordless platform.
HVLP technology delivers more coating to the surface with less waste and overspray.
Intelligent control slows to quiet idle to reduce noise and heat, returning to full power on trigger pull.
Separate filters for atomizing and cooling air with automotive-quality filtration for clean, consistent airflow.
Adjustable air, fluid, and fan pattern controls for legendary precision and repeatable results.
Titan also states that CapSpray systems feature Variable Pressure Control (VPC) for fine-tuning pressure from 4.5 to 11.5 PSI on select models, a built-in tool box for needles, nozzles, and air caps, a dirty filter warning light for preventive maintenance, and CapLiner System compressible lids and liners for quick color changes. FlexSpray Pro 18V adds Bosch AMPShare battery compatibility and quick-change front ends for switching between high-production and precision applications.
Understanding Fine Finish Pressure Ratings
CapSpray models range from the 3-stage 7.5 PSI turbine to the industry's only 6-stage 11.5 PSI turbine for maximum HVLP atomization.
FlexSpray Pro 18V delivers the power of a 4-stage turbine in a cordless handheld platform with two front end options.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each fine finish model for specific coating types and finish requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan Fine Finish vs Standard Airless Sprayers
| Buying Consideration | Titan Fine Finish | Standard Airless Sprayer |
|---|---|---|
| Technology positioning | HVLP and turbine-driven precision platform | High-pressure hydraulic atomization |
| Atomization | High volume, low pressure for soft, controlled pattern | High pressure for maximum production speed |
| Overspray | Minimal with up to 90% transfer efficiency | Higher overspray typical |
| Finish quality | Superior smoothness on detail work | Good for large surfaces, less refined on detail |
| Best application | Trim, cabinets, doors, furniture, metal | Large walls, siding, fences, production work |
| Selection | Coating + viscosity + control + gun setup | Coating + output + tip size + sprayer capacity |
Fine finish is not automatically the correct technology for every application. Choose according to the coating, desired finish, production requirements, and equipment capability.
Titan Fine Finish Compatibility
Titan fine finish sprayers work with CapSpray turbines, Maxum guns, FlexSpray front ends, and industry-standard HVLP accessories. This describes the system interface; it should not be interpreted as a statement that every fine finish configuration is suitable for every coating or application.
Confirm the turbine or handheld unit uses the appropriate Maxum or integrated gun and that the air cap and needle set match your coating.
FlexSpray Pro 18V accepts both FlexFinish and FineFinish front ends via the Quick Change System.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan Fine Finish Sprayer?
Fine finish sprayers are mechanical systems with wear components. Inspect the sprayer when spray pattern loses definition, atomization becomes inconsistent, or material flow changes. Common service items include air filters, needles, nozzles, air caps, check valves, gun seals, hoses, and turbine components. CapSpray systems feature dual air filtration with a dirty filter warning light for preventive maintenance, while Maxum guns use stainless steel needles and nozzles for durability. FlexSpray Pro 18V benefits from the Quick Change System that simplifies front end swapping and cleaning. Actual service intervals vary with coating abrasiveness, operating conditions, cleaning, maintenance, and usage conditions.
How to Order the Correct Titan Fine Finish Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine the required finish quality and control level.
- Determine the coating viscosity and whether thinning is required.
- Select the appropriate subcategory (CapSpray, FlexSpray, or Maxum gun).
- Confirm the gun, needle set, and air cap configuration.
- Verify the current manufacturer ordering number for the platform.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer configuration, equipment capability, and current part number are confirmed.
Physical similarity, the Titan brand name, or matching model names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
Fine finish is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan fine finish sprayer is coating + viscosity + required control + gun setup + platform type + exact current model number. Choosing "fine finish" alone is not enough: a CapSpray 75, CapSpray 115, and FlexSpray Pro 18V have substantially different power and portability characteristics.
FAQ Section
Use these answers to narrow the correct Titan fine finish sprayer before ordering.
