Shop Titan 440i Suction Set Assembly Parts
Keep your material-intake system ready for the next job with Titan 440i Suction Set Assembly Parts. Find genuine OEM replacement components, identify the affected connection or hose, and match the required part number before ordering.
Find Your 440i Intake and Return Components
Inspect the material path from the container to the pump. Identify the damaged item and check nearby seals and connections so your order addresses the repair you actually need.
Check the hose and its connections when inspecting the intake path. Review the product contents before adding separate fittings to your order.
Shop Titan 700-1023A Siphon Hose →Inspect the intake screen for accumulated material or damage. Keep filtration in place and follow the model-specific cleaning instructions.

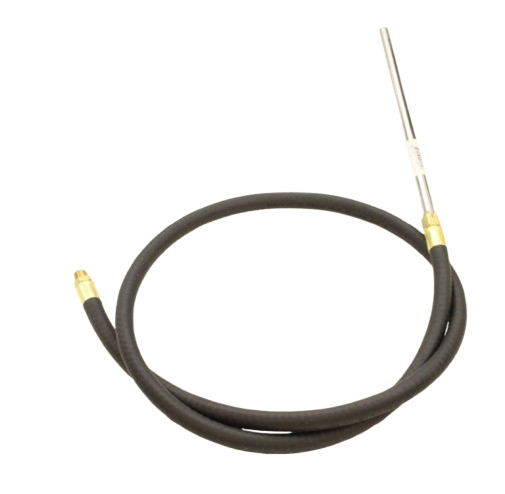

View Titan 700-805 Inlet Screen →Check the return line for damage, kinks and insecure connections. Match the assembly to your machine before purchasing.
Find Titan 704-263A Return Hose →Inspect the seal and mating surfaces during service. Use the specified O-ring rather than selecting a substitute by appearance.
Browse Titan 9871105 O-Ring →Inspect the elbow and its connection points. Confirm the required fitting and related seal before replacing damaged components.
Select Titan 700-1024 Elbow →Choose the Correct Titan 440i Suction Set Replacement
A hose assembly and an individual service component can have different contents. Confirm the repair location, replacement reference and included items before placing your order.
Confirm the exact 440i model and keep its serial number available for fitment assistance.
Determine whether the affected area is the intake hose, return line, screen, fitting, seal or clip.
Use the diagram and current replacement reference to identify the appropriate component.
Check which associated items are included and which must be ordered separately.
| Replacement Component | Titan OEM Number | Diagram Position | Ordering Check |
|---|---|---|---|
| Return hose assembly | 704-263A | 1 | Replacement reference for 704-263 and 0508605 |
| O-ring | 9871105 | 2 | Replacement reference for 704-121 |
| Additional O-ring | 704-109 | 2A | Exact seal position and configuration |
| Elbow | 700-1024 | 3 | Fitting location and associated seal |
| Retaining clip | 9822526 | 4 | Correct connection and retention position |
| Siphon hose | 700-1023A | 5 | Replacement reference for 700-1023 and 700-659 |
| Hose clip | 806-312 | 6 | Replacement reference for 0507937 |
| Inlet screen filter | 700-805 | 7 | Screen condition and attachment fit |
Inspect the Suction System Before Replacing Parts
Priming and delivery problems can have several causes. Begin with accessible checks, then follow the troubleshooting procedure for your machine rather than assuming that one replacement will resolve every symptom.
Check the material supply, intake position, screen and hose connections. Continue with the model-specific priming checks if the issue remains.
Inspect seals, fittings and the hose for damage or insecure attachment. Examine mating surfaces before installing replacement parts.
Inspect for dried coating, a blocked screen or a kinked hose. Clean with an approved fluid and replace damaged components.
Check line routing, attachment and visible damage. Follow the prescribed priming and flushing procedure to assess return flow.
If intake checks do not resolve the issue, inspect the other relevant systems using the troubleshooting instructions for your sprayer.
Service safety: Relieve system pressure and disconnect electrical power before removing components. Use cleaning fluids approved for your equipment and coating, and follow the required grounding and ventilation instructions.
Choose the relevant assembly when your inspection identifies a repair beyond the suction set.
Titan 440i Suction Set Assembly Parts FAQ
Review these common ordering and maintenance questions before purchasing. Confirm your machine details and the exact component required for the repair.
Have your model, serial number and diagram position available. Contact AllTitanParts for help identifying the appropriate intake or return-system replacement.
Call 713-931-0006 for Fitment Help
