Shop Genuine OEM Titan Elite Series Gas Sprayers
Shop genuine OEM Titan Elite Series gas airless sprayers, professional-grade hydraulic machines built for contractors who need dependable performance where electricity is unavailable. Elite models feature PermaStroke Technology with no piston, packings, cylinder, or clutch to replace, delivering top performance at pressures from 300 to 3,300 PSI with small or large tip sizes. The lineup includes the Elite 3500, Elite 4500, and Elite 5500, with max delivery rates from 0.75 GPM to 1.25 GPM, supported by Honda engines and a lifetime warranty on the fluid pump. Select the correct Elite model by matching coating requirements, required output, maximum tip size, sprayer capacity, and the applicable engine configuration.
Choose the Correct Titan Elite Series Gas Airless Sprayer
Choosing Elite Series technology is only the first step. Individual Elite models combine different engines, flow rates, maximum tip sizes, and pressure capabilities, which changes spray coverage and production capacity. Select by coating + required output + maximum tip size + sprayer capacity + engine configuration + exact model number.
A higher flow rate does not automatically mean a sprayer is correct for your application, and two Elite units are not interchangeable simply because they share the Titan brand. Your coating requirements, production speed, and jobsite conditions determine the right platform, and the coating manufacturer's sprayer recommendation should also be checked.
Titan Elite Series Gas Airless Model Guide
Titan's current Elite gas lineup spans multiple models engineered for different production levels. The chart below summarizes key specifications. Confirm the current orderable model number when selecting a sprayer, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Model | Max Delivery Rate | Max Operating Pressure | Max Tip Size | Engine | Gun Included |
|---|---|---|---|---|---|

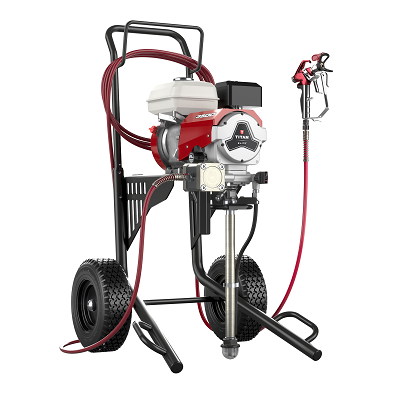

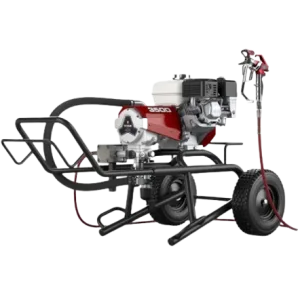

| Elite 3500 | 0.75 GPM | 3,300 PSI | 0.027 inch | Honda GX120 | RX-Pro |
| Elite 4500 | Model dependent | 3,300 PSI | Model dependent | Honda | RX-Pro |
| Elite 5500 | 1.25 GPM | 3,300 PSI | Model dependent | Honda | RX-Pro |
How Titan Elite Series Gas Airless Sprayers Work
Titan Elite Series sprayers use a gas-powered sealed hydraulic system to push coating at high pressure through a spray tip, atomizing the material without compressed air. This hydraulic airless method delivers uniform coverage and high productivity on large surfaces. Elite models feature PermaStroke Technology, a revolutionary hydraulic system with no piston, packings, cylinder, or clutch to wear out or burn out.
No piston, packings, cylinder, or clutch to replace; delivers top performance at 300 to 3,300 PSI.
Eliminates all pressure fluctuations and deadband in the system for a consistent finish.
Makes priming easy and keeps contractors on the job without using a hammer.
Exceptionally quiet running engine with low oil alert system to prevent engine seizure.
Titan also states that Elite sprayers feature a lifetime warranty on the fluid pump and are field serviceable, with cartridge-style inlet and outlet valves that can be changed in under five minutes with simple tools. Actual performance in service still depends on coating viscosity, tip selection, operating pressure, and user technique.
Understanding Elite Series Pressure Ratings
PermaStroke Technology delivers top performance across the full range from 300 to 3,300 PSI when using small or large tip sizes.
Elite Series sprayers range from the compact Elite 3500 at 0.75 GPM to the Elite 5500 at 1.25 GPM for larger production work.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each Elite model for specific coating types and production requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan Elite vs Standard Gas Airless Sprayers
| Buying Consideration | Titan Elite Series | Standard Gas Airless |
|---|---|---|
| Technology positioning | Sealed hydraulic gas-powered platform | Conventional gas airless platform |
| Pump design | PermaStroke Technology with no piston, packings, cylinder, or clutch | Standard piston and packings requiring periodic replacement |
| Warranty | Lifetime warranty on fluid pump | Standard limited warranty |
| Pulsation control | FlatLine Pulsation Dampener eliminates fluctuations | Standard pulsation characteristics |
| Field serviceability | Cartridge valves changeable in under five minutes | Service time varies by model |
| Selection | Coating + output + tip size + sprayer capacity | Coating + output + tip size + sprayer capacity |
Elite is not automatically the correct technology for every application. Choose according to the coating, desired finish, production requirements, and equipment capability.
Titan Elite Series Compatibility
Titan Elite Series sprayers work with industry-standard airless guns, hoses, and spray tips. This describes the system interface; it should not be interpreted as a statement that every Elite model is suitable for every coating or application.
Confirm the sprayer uses the appropriate Titan airless gun and that the gun is correctly configured.
Confirm the machine can support the selected tip size and required material output.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan Elite Series Sprayer?
Elite Series sprayers are mechanical systems with wear components. Inspect the sprayer when pressure drops, the spray pattern loses definition, priming becomes difficult, or material consumption rises. Common service items include hydraulic pump assemblies, fluid sections, inlet and outlet valve cartridges, packing kits, manifolds, filters, pressure control components, and engine components. Elite models feature PermaStroke Technology with no piston, packings, cylinder, or clutch to wear out, and the lifetime fluid pump warranty provides additional peace of mind. Actual service intervals vary with coating abrasiveness, operating pressure, cleaning, maintenance, and usage conditions.
How to Order the Correct Titan Elite Series Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine the required flow rate and production speed.
- Determine the maximum tip size needed for your application.
- Check the sprayer's maximum supported tip size and available output.
- Confirm the spray gun, hose, and tip configuration.
- Locate the corresponding Titan Elite model in the lineup.
- Verify the current manufacturer ordering number for that model.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer model, equipment capability, and current part number are confirmed.
Physical similarity, the Titan brand name, or matching model names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
Elite Series is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan Elite sprayer is coating + required output + max tip size + sprayer capacity + engine configuration + exact current model number. Choosing "Elite" alone is not enough: an Elite 3500, Elite 4500, and Elite 5500 have substantially different flow and tip capabilities.
FAQ Section
Use these answers to narrow the correct Titan Elite Series sprayer before ordering.
