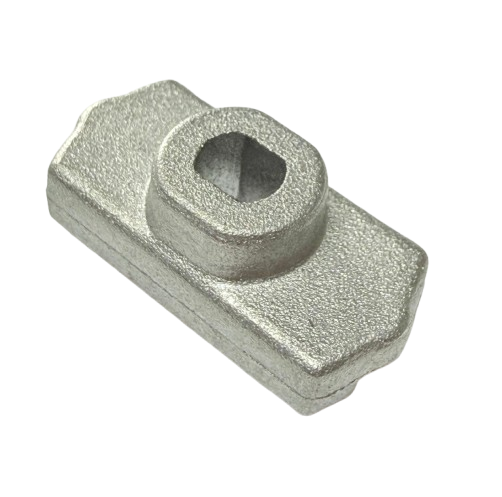

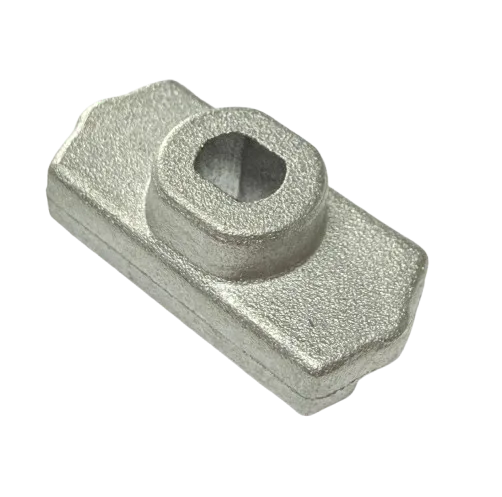

Titan 0538312 Retractor Plate

$7.60
Available to Order
Part #: 538312
Titan RX-80 Spray Gun Mechanical Parts

Repair your spray gun's retraction mechanism with the Titan 0538312 Retractor Plate. Listed for the Titan RX-80 airless spray gun, this replacement component supports the designated internal mechanical arrangement and provides a targeted service option when the original plate is damaged, worn, or defective.

MANUFACTURERTitan
PART NUMBER0538312
PRODUCT TYPERetractor Plate
COMPATIBILITYTitan RX-80
Function: Component of the RX-80 spray gun retraction mechanism.
Parts Diagram: RX-80 Item 13.
Related Components: Retractor pins, rear housing and collar assembly.
Ordering: Titan 0538312 Retractor Plate.

Fitment & Safety: Verify the RX-80 model and Item 13 diagram reference before ordering. Relieve all fluid pressure and follow Titan's service procedures before disassembling the gun.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan RX-80 Spray Gun Replacement Parts

Titan 0538312 Retractor Plate for RX-80 Spray Gun

Service the mechanical retraction assembly of your Titan RX-80 airless spray gun with the Titan 0538312 Retractor Plate. Listed as Item 13 in the official Titan RX-80 exploded parts diagram, this original equipment replacement component is intended for targeted repair when the installed plate is worn, damaged, deformed, or no longer suitable for continued service.

MANUFACTURERTitan
PART NUMBER0538312
DIAGRAM REFERENCEItem 13
VERIFIED FITMENTTitan RX-80

Titan 0538312 Technical & Ordering Details

Product Overview Replacement retractor plate for the Titan RX-80 airless spray gun.
Manufacturer Titan
OEM Part Number 0538312
Official Description Retractor Plate
Manufacturer-Verified Compatible Spray Gun Titan RX-80 Airless Spray Gun
RX-80 Parts Diagram Reference Item 13
Compatible Gun Configurations RX-80 spray gun configurations using the listed retractor plate, including applicable two-finger and four-finger trigger arrangements.
Component Category Spray gun mechanical retraction hardware.
Primary Function Provides the manufacturer-specified plate component within the RX-80 mechanical retraction arrangement.
Related Rear Housing Titan 0538308, Item 11.
Related Ring Clip Titan 580120, Item 14.
Related Collar Assembly Titan 0538303, Item 15.
Related Handle Titan 0538302, Item 16.
Related Retractor Pins Titan 0538305, Item 3. Two retractor pins are shown in the RX-80 parts list.
Related Trigger & Lock Assembly Titan 0538224, two-finger trigger and lock assembly. Four-finger trigger assemblies are separately listed.
Related Return Spring Titan 0296343, Item 20.
Material & Finish Exact material grade, dimensions and finish are not specified in the referenced manufacturer parts list.
Package Contents Retractor plate replacement part. Confirm any additional hardware supplied with the current sales package.
Common Repair Applications Replacement of a damaged, bent, worn or defective retractor plate identified during RX-80 spray gun servicing.
Industrial Applications Professional airless painting, contractor spray gun servicing, residential painting and commercial coating maintenance.
Coating Systems Compatible airless coating systems equipped with a Titan RX-80 spray gun using this plate.
OEM & Brand Titan original equipment replacement component.
Commercial Benefits Supports component-level repair of an otherwise serviceable RX-80 spray gun rather than replacing the complete gun.
Ordering & Safety Confirm the RX-80 model and Item 13 diagram reference. Relieve all system pressure before service.

Function of the Titan 0538312 Retractor Plate

The Titan RX-80 airless spray gun contains a mechanical trigger and retraction arrangement that works with the gun's internal fluid-control components. The retractor plate is one of the individually identified service parts in this arrangement.

During normal use, spray gun components are subjected to repeated trigger operation. Mechanical parts must remain correctly positioned and free from damage to preserve the intended operating arrangement. A worn or deformed plate may require replacement when identified through proper inspection.

The retractor plate is different from the retractor pins, ring clip, rear housing and internal seal assembly. Each is separately identified in Titan's parts diagram, allowing technicians to order the specific component required for repair.

Titan RX-80 Retractor Plate & Related Parts

Item Titan Part Number Component Description Ordering Relationship
13 0538312 Retractor Plate This product
3 0538305 Retractor Pin (2 used) Separately listed hardware
11 0538308 Rear Housing Separate component
14 580120 Ring Clip Separate component
15 0538303 Collar Assembly Separate component
16 0538302 Handle Separate component
20 0296343 Spring Separate component
Important: This table identifies related parts in the RX-80 spray gun assembly. It is not a bill of materials for Titan 0538312. The manufacturer does not establish that these additional components are included with the individual retractor plate.

Compatible Titan Spray Gun Configurations

Spray Gun Configuration Reference
Titan RX-80 Two-finger trigger configuration Item 13
Titan RX-80 Four-finger trigger configuration Item 13

Titan RX-80 is the manufacturer-documented application. Verify the installed spray gun and its manual revision before ordering. Do not assume compatibility with RX-Pro, RX-Apex or other Titan spray gun models solely because they use a similar trigger mechanism.

Common Retractor Plate Problems & Symptoms

Bent or Damaged Plate

Physical deformation may affect correct positioning of the mechanical components.

Abnormal Trigger Movement

Unusual trigger action may warrant inspection of the plate and associated hardware.

Worn Contact Areas

Visible wear should be evaluated during spray gun service.

Incorrect Component Fit

A plate intended for another gun series may not fit the RX-80 assembly.

Trigger sticking, poor shutoff or leakage can also result from the return spring, pins, internal seal assembly, diffuser or other components. Diagnose the fault before replacing the retractor plate.

Installation & Maintenance Guidance

1. Relieve system pressure. Follow Titan's complete pressure-relief procedure before servicing the gun.

2. Disable the sprayer. Turn off the equipment and disconnect the appropriate power source as instructed by the manufacturer.

3. Verify the spray gun. Confirm RX-80 identification and locate the retractor plate as Item 13 in the parts diagram.

4. Inspect related components. Examine the retractor pins, ring clip, rear housing, collar and return spring for damage or abnormal wear.

5. Follow the service procedure. Remove the damaged plate using Titan's specified disassembly sequence and appropriate tools.

6. Install the correct replacement. Position the retractor plate and reinstall associated hardware according to the manufacturer instructions.

7. Check mechanical operation. Verify that the trigger and trigger lock function properly while the system remains depressurized.

8. Perform safety checks. Complete the prescribed inspection and functional testing before returning the spray gun to service. Never check for pressurized fluid leaks with your hands.

Related Titan RX-80 Spray Gun Parts

Titan 0538305 Retractor Pin

Related mechanical hardware listed as Item 3, with two pins used in the RX-80 assembly.

Titan 0538308 Rear Housing

Separate rear housing component identified as Item 11.

Titan 580120 Ring Clip

Separate retaining hardware identified as Item 14.

Titan 0538303 Collar Assembly

Related RX-80 collar component identified as Item 15.

Titan 0296343 Spring

Related spring component identified as Item 20.

Titan RX-80 Mechanical Repair Components

Buy Titan 0538312 Retractor Plate

Order Titan 0538312 from AllTitanParts for RX-80 airless spray gun mechanical repairs. Match the part to Item 13 in the manufacturer's diagram and replace damaged retraction hardware using the correct Titan service procedure.

Frequently Asked Questions

What is Titan 0538312 Retractor Plate?

It is the manufacturer-listed retractor plate for the Titan RX-80 airless spray gun, identified as Item 13 in the official parts diagram.

Which Titan spray gun uses part 0538312?

Titan's RX-80 parts documentation identifies 0538312 as the retractor plate for that spray gun family.

Does Titan 0538312 include the retractor pins or ring clip?

The manufacturer parts diagram lists the retractor pins and ring clip separately. Their inclusion with the individual 0538312 purchase is not established.

Does Titan 0538312 fit the RX-Pro?

The verified application is Titan RX-80. RX-Pro compatibility should not be assumed without checking its separate parts documentation.

When should I replace the RX-80 retractor plate?

Replace it when inspection confirms physical damage, deformation or excessive wear. Also inspect related mechanical parts to determine whether additional repairs are necessary.

No reviews yet. Be the first to review this product!
