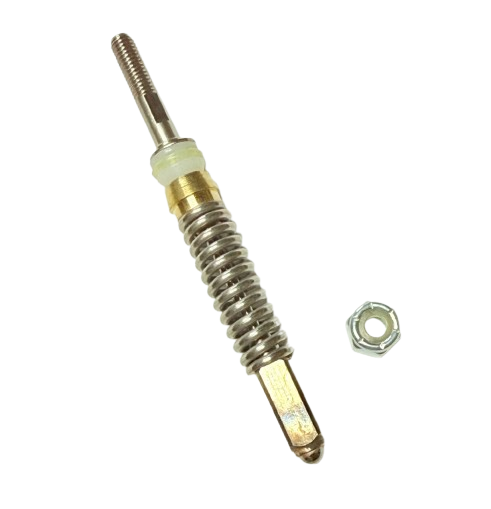

Titan 0538210 Seal Assembly

$60.71
$66.20
Save 8%
Available to Order
Part #: 538210
Titan RX-80 Airless Spray Gun Service Parts

Repair worn internal gun sealing components with the Titan 0538210 Seal Assembly. Listed for the Titan RX-80 airless spray gun, this replacement assembly supports proper fluid sealing and gun maintenance. It is also an identified component of the Titan 0538215 RX-80 Gun Repair Kit.

MANUFACTURERTitan
PART NUMBER0538210
PRODUCT TYPESeal Assembly
APPLICATIONRX-80 Spray Gun
Function: Services the designated internal spray gun sealing arrangement.
Parts Diagram: RX-80 Item 5.
Related Repair Kit: Titan 0538215.
Ordering: Titan 0538210 Seal Assembly.

Fitment Note: Verify your spray gun model and parts diagram before ordering. Relieve all fluid pressure before disassembling or servicing an airless spray gun.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan RX-80 Airless Spray Gun Parts

Titan 0538210 Seal Assembly for RX-80

Service the internal sealing mechanism of your Titan RX-80 airless spray gun with the Titan 0538210 Seal Assembly. Identified as Item 5 in the manufacturer's parts diagram, this replacement assembly includes the associated lock nut and provides a targeted repair option for worn or damaged gun sealing components.

MANUFACTURERTitan
PART NUMBER0538210
DIAGRAM ITEMItem 5
VERIFIED FITMENTTitan RX-80

Titan 0538210 Technical & Ordering Details

Product Overview Internal seal assembly for the Titan RX-80 airless spray gun.
Manufacturer Titan
OEM Part Number 0538210
Official Description Seal Assembly (Includes Item 12)
Manufacturer-Verified Compatible Spray Gun Titan RX-80 Airless Spray Gun
Compatible Configurations RX-80 spray gun assemblies using the manufacturer-listed internal seal assembly, including applicable two-finger and four-finger trigger configurations.
RX-80 Parts Diagram Reference Item 5
Included Component Titan 226-001 Lock Nut, Item 12.
Related Complete Repair Kit Titan 0538215 RX-80 Gun Repair Kit, which includes the seal assembly, 7/8-inch diffuser, and lock nut.
Primary Function Provides the designated internal sealing arrangement for the RX-80 spray gun's fluid-control mechanism.
Related Diffuser Titan 0538200, 7/8-inch Diffuser, Item 6. Sold separately unless purchased as part of a kit that includes it.
Related Gun Body Component Titan 0538308 Rear Housing, Item 11.
Related Tip Components Titan 0297007 Tip Seal, Titan 651-020 Seal, and Titan 0289228 Tip Guard. These are separate from the internal seal assembly.
Related Handle Seal Titan 560-038 Handle Seal, Item 21, a separate component.
Common Repair Applications Diagnosed internal sealing wear, leakage, or fluid-control problems involving the RX-80 seal assembly.
Industrial Applications Professional airless painting, contractor maintenance, residential and commercial coating work, and spray gun servicing.
Coating Systems Compatible airless coating systems equipped with the Titan RX-80 spray gun.
RX-Pro Distinction Titan identifies 0538204A as the RX-Pro seal assembly. RX-Pro compatibility is not established for 0538210.
OEM & Brand Titan original equipment replacement part.
Commercial Benefits Supports targeted repair of an otherwise serviceable RX-80 spray gun without requiring a complete gun replacement.
Safety & Ordering Verify the RX-80 model and Item 5 parts diagram reference. Relieve all fluid pressure before disassembly and follow Titan's approved service procedures.

Titan 0538210 Seal Assembly: Included Component

Diagram Item Part Number Description Relationship
5 0538210 Seal Assembly Main product
12 226-001 Lock Nut Included with Item 5
Important: The manufacturer parts list expressly states that the seal assembly includes Item 12. It does not identify the diffuser, trigger, tip guard, or handle seal as included with this individual assembly.

How Does the Titan 0538210 Seal Assembly Work?

The Titan RX-80 airless spray gun operates by controlling the passage of pressurized coating material through its internal fluid-control mechanism. The internal sealing components help contain coating material within the intended fluid path while the gun operates.

Repeated spraying cycles, coating contamination, and normal wear can affect the condition of the gun's sealing components. When internal sealing wear is diagnosed, replacement of the designated seal assembly may be required to restore proper operation.

Titan 0538210 is the manufacturer-listed RX-80 seal assembly and includes the associated lock nut. It is distinct from the tip seal at the front of the gun and from the handle seal at the gun's fluid connection.

Compatible Titan RX-80 Spray Gun Configurations

The manufacturer identifies this seal assembly for the RX-80 spray gun family. The RX-80 parts diagram covers the gun's internal components independently of its two-finger or four-finger trigger arrangement.

Spray Gun Configuration Application Reference
Titan RX-80 Two-Finger Internal seal assembly service Item 5
Titan RX-80 Four-Finger Internal seal assembly service Item 5

Verify the installed spray gun rather than relying on the sprayer model alone. Other Titan gun families may use different internal sealing components.

Common RX-80 Seal Assembly Problems

Internal Fluid Leakage

Worn internal sealing components can contribute to coating leakage.

Inconsistent Shutoff

Internal wear may contribute to fluid-control problems requiring diagnosis.

Seal Deterioration

Abrasive coatings and repeated operation can contribute to sealing component wear.

Incorrect Seal Selection

Installing a seal intended for another gun model may result in improper fit or operation.

These symptoms can have other causes, including damage to the diffuser, valve components, tip seal, or gun body. Confirm the source of the problem before replacing the seal assembly.

Installation & Maintenance Guidance

1. Relieve pressure. Follow Titan's complete pressure-relief procedure before handling or disassembling the spray gun.

2. Disable the sprayer. Switch off the equipment and disconnect its power source according to the manufacturer instructions.

3. Confirm the spray gun. Identify the RX-80 model and verify Item 5 in the applicable parts diagram.

4. Inspect surrounding components. Examine the diffuser, rear housing, and associated fluid-control components for damage or contamination.

5. Follow the official service procedure. Remove the damaged assembly using the sequence and tools specified by Titan.

6. Install the replacement assembly. Position the seal assembly and associated lock nut correctly, observing the manufacturer's tightening requirements.

7. Reassemble and inspect. Confirm that all components are securely installed and that the trigger and lock operate correctly.

8. Perform safety testing. Complete Titan's prescribed leak and functional checks before returning the gun to service. Never inspect a pressurized leak with your hands.

Related Titan RX-80 Spray Gun Parts

Titan 0538215 RX-80 Gun Repair Kit

Complete service kit that includes the 0538210 seal assembly, 0538200 diffuser, and 226-001 lock nut.

Titan 0538200 Diffuser, 7/8 Inch

Separate diffuser component identified as Item 6 in the RX-80 diagram.

Titan 226-001 Lock Nut

Included component of the 0538210 seal assembly, identified as Item 12.

Titan 0297007 Tip Seal

Separate spray tip sealing component identified as Item 9.

Titan 560-038 Handle Seal

Separate handle sealing component identified as Item 21.

Titan RX-80 Replacement Sealing Components

Buy Titan 0538210 Seal Assembly

Order Titan 0538210 from AllTitanParts for compatible RX-80 airless spray gun repairs. Replace the manufacturer-specified internal seal assembly with the included lock nut and maintain your spray gun using the correct original equipment service components.

Frequently Asked Questions

What is Titan 0538210 Seal Assembly?

It is the manufacturer-listed internal seal assembly for the Titan RX-80 airless spray gun, identified as Item 5 in the parts diagram.

Which Titan spray gun uses part 0538210?

Titan's RX-80 parts documentation identifies 0538210 as the internal seal assembly for that spray gun family.

Does Titan 0538210 include the lock nut?

Yes. The official RX-80 parts list states that the seal assembly includes Item 12, Titan 226-001 Lock Nut.

Is Titan 0538210 included in the RX-80 Gun Repair Kit?

Yes. Titan 0538215 includes the 0538210 seal assembly along with the 7/8-inch diffuser and lock nut identified in the manufacturer parts list.

Does Titan 0538210 fit the Titan RX-Pro?

RX-Pro compatibility is not established. Titan's service documentation identifies 0538204A as the RX-Pro seal assembly, so the two parts should not be treated as interchangeable without manufacturer confirmation.
