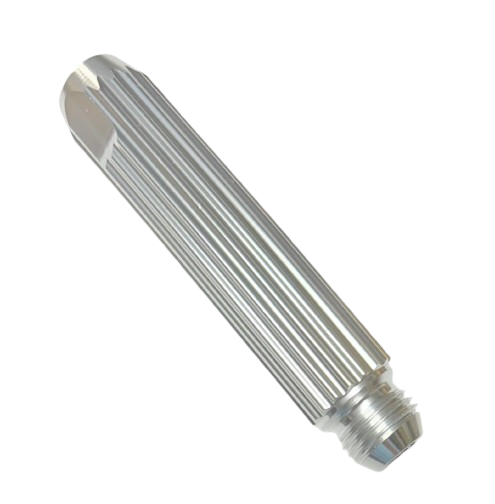

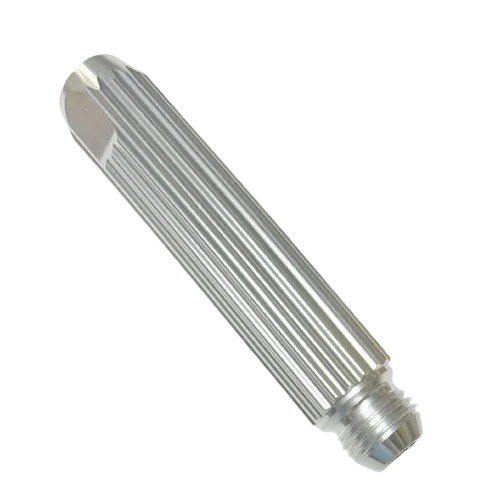

Titan 0538302 Gun handle tube

$13.20
Available to Order
Part #: 538302
Titan RX-80 Airless Spray Gun Parts

Restore your spray gun's handle assembly with the Titan 0538302 Gun Handle Tube. Designed for the Titan RX-80 airless spray gun, this replacement component provides the designated handle structure and supports targeted repair when the original handle is damaged, worn, or unsuitable for continued professional use.

MANUFACTURERTitan
PART NUMBER0538302
COMPONENTGun Handle Tube
COMPATIBILITYTitan RX-80
Function: Replacement handle component for the RX-80 spray gun.
Parts Diagram: RX-80 Item 16.
Related Components: Collar assembly, handle seal and swivel.
Ordering: Titan 0538302 Gun Handle Tube.

Fitment & Safety: Confirm the Titan RX-80 model and Item 16 reference before ordering. Relieve all fluid pressure before removing the handle or servicing the spray gun.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan Airless Spray Gun Replacement Parts

Titan 0538302 Gun Handle Tube for RX-80

Repair the handle section of your Titan RX-80 airless spray gun with the Titan 0538302 Gun Handle Tube. Identified as Item 16 in the manufacturer's exploded parts diagram, this OEM handle component is designed for replacement when the existing handle is damaged or unsuitable for continued service. It is separately listed from the swivel, filter, collar assembly and handle seals.

BRANDTitan
PART NUMBER0538302
DIAGRAM ITEM16
DOCUMENTED GUNRX-80

Titan 0538302 Technical & Ordering Details

Overview Replacement gun handle tube for the Titan RX-80 airless spray gun.
Manufacturer Titan
OEM Part Number 0538302
Manufacturer Description Handle
Store Product Name Gun Handle Tube
Verified Compatible Spray Gun Titan RX-80 Airless Spray Gun
Parts Diagram RX-80, Item 16
Gun Configurations RX-80 configurations using the specified handle, including the two-finger and four-finger trigger arrangements shown in the parts documentation.
Function Provides the designated handle component within the RX-80 spray gun assembly.
Component Location Handle section of the airless spray gun, associated with the lower fluid connection and internal filter arrangement.
Related Collar Assembly Titan 0538303, Item 15.
Related Rear Housing Titan 0538308, Item 11.
Related Sealing Ring Titan 9970123, Item 17 in the referenced manual revision.
Related Swivel Titan 0538205, Item 18 in the referenced manual revision.
Related Gun Filter Titan 0089958, medium filter, Item 19 in the referenced manual revision.
Related Spring Titan 0296343, Item 20.
Related Handle Seal Titan 560-038, Item 21 in the referenced manual revision.
Material & Finish Exact material grade and finish are not specified in the referenced manufacturer parts list.
Dimensions & Threads No independently confirmed dimensional or thread specifications for the individual handle.
Package Contents Gun handle tube replacement part. Additional included hardware is not established by the parts diagram.
Common Problems Damaged handle body, defective connection surfaces, visible deformation or damage discovered during service.
Industrial Applications Professional painting, contractor spray equipment repair and commercial airless coating operations.
Coating Systems Coating systems approved for the complete RX-80 gun and associated spray equipment.
OEM & Brand Titan original equipment replacement part.
Commercial Benefits Allows replacement of the damaged handle without automatically purchasing a complete spray gun.
Ordering Note Verify part number 0538302 against the installed spray gun and inspect the sealing components before reassembly.

Function of the Titan 0538302 Gun Handle Tube

The handle is an important structural and service component of the Titan RX-80 airless spray gun. The gun incorporates a handle section, internal filter arrangement, sealing components and a lower swivel connection. These components must be assembled correctly to maintain the manufacturer's intended gun configuration.

The handle tube provides the designated handle structure. The filter, spring, sealing ring and swivel are identified separately in the manufacturer parts diagram. This distinction matters when diagnosing damage, ordering replacements and planning a repair.

If the original handle is cracked, distorted or otherwise defective, replacing the correct handle component can preserve the remaining serviceable parts of the gun. Any suspected fluid leakage should also prompt inspection of the related seals and connection hardware rather than assuming the handle itself is responsible.

Titan RX-80 Handle Assembly Components

Item Part Number Description Relationship
16 0538302 Handle / Gun Handle Tube This product
15 0538303 Collar Assembly Separate component
17 9970123 Seal / Sealing Ring Separate component
18 0538205 Swivel Separate component
19 0089958 Medium Filter Separate component
20 0296343 Spring Separate component
21 560-038 Handle Seal Separate component
22 0538307 Trigger Guard Separate component
Assembly clarification: These are separately identified parts from the RX-80 exploded diagram, not confirmed contents of the Titan 0538302 sales package. Diagram numbering may vary between manual revisions.

Compatible Titan Spray Gun Configurations

Spray Gun Configuration Fitment Reference
Titan RX-80 Two-finger trigger configuration Handle, Item 16
Titan RX-80 Four-finger trigger configuration Handle, Item 16

The Titan RX-80 is the confirmed manufacturer-documented application. The same part number is also identified by an equipment-parts supplier for Wagner Vector Pro gun configurations. Verify the original part number and installed gun before ordering for a Wagner application.

For machines such as the Titan Impact X 120, identify the actual installed spray gun before ordering. A machine-level parts listing alone does not establish universal handle compatibility.

Common Gun Handle Problems & Symptoms

Cracked Handle

Visible cracking or impact damage may require replacement of the handle component.

Connection Damage

Damaged mating surfaces can interfere with correct assembly of the related hardware.

Fluid Leakage

Leakage near the handle or swivel requires inspection of the seals and connection components.

Damaged Filter Area

Inspect the internal filter seating arrangement when the handle is disassembled.

A clogged gun filter, damaged sealing ring or defective swivel can produce symptoms unrelated to the handle body. Diagnose the cause before ordering a replacement.

Installation & Safety Guidance

1. Relieve pressure. Follow Titan's complete pressure-relief procedure before disassembling the spray gun.

2. Secure the equipment. Switch off the sprayer, engage the trigger lock and disconnect the appropriate power source.

3. Confirm the part. Identify the RX-80 spray gun and Handle Item 16 in the applicable parts diagram.

4. Inspect the fluid connections. Check the swivel, sealing ring and handle seal for wear or damage.

5. Examine the filter arrangement. Inspect the filter and spring and replace damaged components where required.

6. Install the correct handle. Follow Titan's disassembly and reassembly instructions. Do not modify threads or mating surfaces to force fitment.

7. Reassemble the gun. Use the correct seals and manufacturer-specified tightening procedure for the affected connections.

8. Perform safety checks. Inspect and test the reassembled gun as instructed by Titan. Never touch or attempt to stop a high-pressure fluid leak with your hands.

Related Titan RX-80 Replacement Parts

Titan 0538303 Collar Assembly

Related mechanical collar component identified as Item 15.

Titan 9970123 Sealing Ring

Related seal identified as Item 17 in the referenced RX-80 manual.

Titan 0538205 Swivel

Lower fluid connection component identified as Item 18.

Titan 0089958 Medium Gun Filter

Internal filter component listed in the RX-80 parts diagram.

Titan 0296343 Spring

Related spring identified as Item 20.

Titan 560-038 Handle Seal

Separate handle sealing component identified as Item 21.

Titan RX-80 Spray Gun Handle & Repair Parts

Buy Titan 0538302 Gun Handle Tube

Order Titan 0538302 from AllTitanParts for compatible RX-80 spray gun handle repairs. Confirm the original handle part number and inspect the associated filter, seals and swivel before reassembly.

Frequently Asked Questions

What is Titan 0538302 Gun Handle Tube?

It is the replacement handle component identified as Item 16 in the Titan RX-80 airless spray gun parts diagram.

Which Titan spray gun uses part 0538302?

The manufacturer-documented application is the Titan RX-80 airless spray gun. Confirm the installed gun model before ordering.

Does Titan 0538302 include the swivel and filter?

The swivel and filter are separately listed components in the RX-80 parts diagram. Their inclusion with an individual 0538302 purchase is not confirmed.

Should I replace the seals when replacing the handle?

Inspect the associated sealing ring and handle seal. Replace any damaged or manufacturer-designated single-use sealing components according to the applicable service procedure.

Does Titan 0538302 fit the RX-Pro spray gun?

RX-80 compatibility is confirmed. RX-Pro compatibility has not been established from the referenced manufacturer RX-80 documentation; check the RX-Pro parts list before ordering.

No reviews yet. Be the first to review this product!
