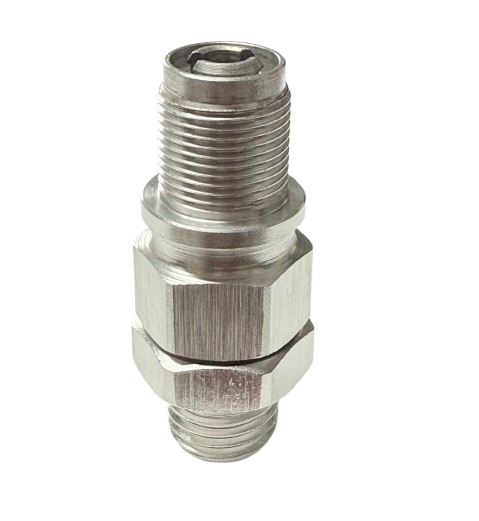

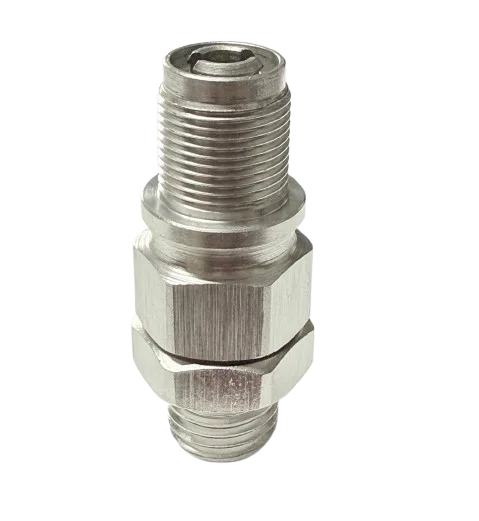

Titan 0538205 Swivel

$30.52
$32.30
Save 6%
Available to Order
Part #: 538205
Titan RX-80 Spray Gun Fluid Connection Parts

Restore your spray gun's fluid inlet connection with the Titan 0538205 Swivel. Designed for the Titan RX-80 airless spray gun, this replacement component supports hose movement, helps reduce twisting during operation, and provides a targeted repair option for a damaged or defective swivel connection.

MANUFACTURERTitan
PART NUMBER0538205
COMPONENTGun Inlet Swivel
COMPATIBILITYTitan RX-80
Function: Rotating fluid hose connection for compatible spray guns.
Parts Diagram: RX-80 Item 18.
Related Components: Gun handle, sealing ring, handle seal and filter.
Ordering: Titan 0538205 Swivel.

Fitment & Safety: Verify the spray gun model and Item 18 reference before ordering. Relieve all fluid pressure before disconnecting the hose or servicing the swivel.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan Airless Spray Gun Fluid Connection Parts

Titan 0538205 Swivel for RX-80 & RX-Pro Spray Guns

Maintain a reliable hose connection and improve spray gun maneuverability with the Titan 0538205 Swivel. This OEM replacement fluid inlet swivel is listed in Titan's RX-80 and RX-Pro airless spray gun parts diagrams. It provides a rotating connection between the spray gun and compatible high-pressure fluid hose, helping reduce hose twisting during professional painting operations.

MANUFACTURERTitan
PART NUMBER0538205
PRODUCT TYPEFluid Inlet Swivel
VERIFIED FITMENTRX-80 / RX-Pro

Titan 0538205 Technical & Ordering Details

Product Overview Replacement fluid inlet swivel for compatible Titan airless spray guns.
Manufacturer Titan
OEM Part Number 0538205
Manufacturer Description Swivel
Verified Compatible Spray Guns Titan RX-80 and Titan RX-Pro
RX-80 Diagram Reference Item 18 in the manufacturer manual revision listing a separate sealing ring.
RX-Pro Diagram Reference Item 23; includes Items 21 and 22.
Primary Function Provides a rotating high-pressure fluid hose connection at the spray gun inlet.
Mechanical Benefit Helps minimize hose twisting and resistance as the operator changes spray gun orientation.
Fluid Connection Location Lower inlet connection of the compatible spray gun handle assembly.
RX-80 Related Handle Titan 0538302, Handle, Item 16.
RX-80 Related Seal Titan 9970123, Item 17 in the referenced manual revision.
RX-Pro Included O-Ring Titan 0538342, Item 21.
RX-Pro Included Washer Titan 0538337, Item 22.
RX-Pro Related Handle Titan 0538315, Item 20.
Related Gun Filter Titan 0089958, medium gun filter, listed for both RX-80 and RX-Pro.
Related Filter Spring Titan 0296343, listed for both RX-80 and RX-Pro.
Related Handle Seal Titan 560-038, listed for both RX-80 and RX-Pro.
Compatible Assemblies Manufacturer-listed RX-80 and RX-Pro gun handle and fluid inlet assemblies.
Material & Finish Exact metal grade, finish and sealing material are not specified in the referenced parts lists.
Connection Dimensions Verify hose connection thread and configuration against the installed spray gun and manufacturer's specifications.
Package Contents Swivel assembly. Titan's RX-Pro parts diagram specifies that the swivel includes O-Ring 0538342 and Washer 0538337. Confirm current package contents before shipment.
Common Replacement Reasons Leaking swivel, restricted rotation, damaged connection surfaces or mechanically defective hose inlet swivel.
Industrial Applications Residential and commercial painting, professional airless spraying, maintenance work and contractor equipment repair.
Coating Systems Compatible airless coating systems equipped with Titan RX-80 or RX-Pro spray guns.
OEM & Brand Titan original equipment replacement component.
Commercial Benefits Supports hose movement and component-level repair without replacing an otherwise serviceable spray gun.
Ordering & Safety Confirm the installed gun model, swivel part number and sealing components. Always relieve fluid pressure before disconnecting the hose.

What Does the Titan 0538205 Swivel Do?

The swivel forms part of the fluid connection between a compatible Titan airless spray gun and its high-pressure paint hose. As the operator changes direction, rotates the wrist or adjusts spraying position, the hose can otherwise introduce twisting forces into the connection.

A properly functioning swivel allows rotational movement at the gun inlet. This helps reduce unnecessary hose twisting and can improve the operator's ability to maneuver the gun during extended spraying tasks. The swivel must also maintain the intended fluid seal under the operating conditions specified for the complete spray gun and hose system.

The swivel is a distinct component from the gun handle, internal filter and filter spring. If a leak develops near the inlet connection, inspect the swivel and its associated sealing parts before determining which component requires replacement.

Verified Titan 0538205 Spray Gun Compatibility

Spray Gun Model Diagram Item Manufacturer Reference
Titan RX-80 18 Swivel; related sealing ring listed separately as Item 17.
Titan RX-Pro 23 Swivel, including O-Ring Item 21 and Washer Item 22.
Fitment clarification: Both RX-80 and RX-Pro are supported by Titan parts documentation. Verify the installed spray gun before ordering because a sprayer machine may be equipped with a different or replacement gun.

Titan 0538205 Swivel Assembly & Related Parts

Part Number Description RX-80 / RX-Pro Relationship
0538205 Swivel This product; used on both spray guns.
0538342 O-Ring RX-Pro Item 21; included with RX-Pro swivel Item 23.
0538337 Washer RX-Pro Item 22; included with RX-Pro swivel Item 23.
9970123 Seal RX-80 Item 17 in the referenced manual revision.
0538302 Handle RX-80 Item 16.
0538315 Handle RX-Pro Item 20.
0089958 Medium Gun Filter Listed for both RX-80 and RX-Pro.
0296343 Spring Listed for both RX-80 and RX-Pro.
560-038 Handle Seal Listed for both RX-80 and RX-Pro.
Package clarification: The RX-Pro manufacturer diagram expressly identifies O-Ring 0538342 and Washer 0538337 as included with the swivel. Other parts shown in this table are separately listed components and are not confirmed contents of the swivel package.

Common Swivel Problems & Replacement Symptoms

Fluid Leakage

Leakage around the swivel may indicate damaged sealing components or connection surfaces.

Restricted Rotation

A seized or difficult-to-rotate swivel can reduce the benefit of the rotating hose connection.

Damaged Connection

Damaged threads or mating surfaces can prevent correct assembly and sealing.

Excessive Hose Twisting

Persistent hose twisting may warrant inspection of the swivel and hose routing.

A leak near the gun inlet does not automatically mean the swivel body has failed. Inspect the hose coupling, seals, washer and handle connection before replacing parts.

Installation & Safety Guidance

1. Relieve pressure. Follow Titan's complete pressure-relief procedure before disconnecting the hose or opening any fluid connection.

2. Disable the sprayer. Switch off the equipment, engage the trigger lock and disconnect the appropriate power source.

3. Confirm the spray gun. Identify the RX-80 or RX-Pro and locate the swivel in the applicable parts diagram.

4. Disconnect the hose. Use suitable tools and follow the manufacturer's instructions to avoid damaging the hose coupling or gun inlet.

5. Inspect sealing components. Check the applicable O-ring, washer, sealing ring and connection surfaces for damage or contamination.

6. Install the replacement swivel. Use the correct seals and manufacturer-specified installation procedure. Do not force incompatible threads or substitute unverified sealing materials.

7. Verify movement. Confirm the swivel rotates as intended and that the hose connection is correctly secured.

8. Perform safety checks. Follow Titan's prescribed testing procedure before spraying. Never check for high-pressure fluid leaks using your hands.

Related Titan RX-80 & RX-Pro Repair Parts

Titan 0538342 O-Ring

RX-Pro swivel sealing component, Item 21.

Titan 0538337 Washer

RX-Pro swivel washer, Item 22.

Titan 9970123 Seal

RX-80 sealing component identified as Item 17 in the referenced manual revision.

Titan 0538302 Gun Handle Tube

RX-80 handle component identified as Item 16.

Titan 0089958 Medium Gun Filter

Internal filter listed for both RX-80 and RX-Pro.

Titan 560-038 Handle Seal

Related handle sealing component used in both spray gun families.

Titan RX-80 & RX-Pro Spray Gun Parts

Buy Titan 0538205 Swivel

Order Titan 0538205 from AllTitanParts for compatible RX-80 and RX-Pro airless spray gun repairs. Replace damaged fluid inlet swivel hardware and maintain the correct hose connection using manufacturer-specified components.

Frequently Asked Questions

What is Titan 0538205 Swivel?

It is an OEM fluid inlet swivel used in compatible Titan airless spray guns. It provides a rotating hose connection at the gun inlet.

Which Titan spray guns use part 0538205?

Titan's official parts diagrams identify 0538205 for both RX-80 and RX-Pro airless spray guns.

Does Titan 0538205 include an O-ring and washer?

Yes. The RX-Pro manufacturer parts diagram identifies the swivel as including O-Ring 0538342 and Washer 0538337. Confirm the current packaged contents before shipment.

What are the symptoms of a faulty gun swivel?

Possible symptoms include fluid leakage at the connection, restricted rotation, damaged mating surfaces and persistent hose twisting. Inspect related seals and hose fittings before determining the cause.

Can I replace the swivel without replacing the complete spray gun?

The swivel is separately listed as a service part. Replacement may be appropriate when the remaining gun components are serviceable and the manufacturer service procedure is followed.
