Titan RentSpray 650 High Rider Cart Assembly Parts
Shop Titan RentSpray 650 High Rider Cart Assembly replacement parts at AllTitanParts. Explore the illustrated cart assembly category to identify frame support components, wheels, axle-related hardware, handles, mounting fasteners, and other transport or support parts where specified. Compare Titan part numbers and diagram positions to select suitable replacements for high rider cart maintenance, structural support repairs, and sprayer mobility.
Shop Titan RentSpray 650 High Rider Cart Assembly Replacement Parts
The Titan RentSpray 650 High Rider Cart Assembly category helps painting contractors, equipment owners, rental operators, and service technicians locate replacement parts associated with the high rider cart configuration of the RentSpray 650 electric airless paint sprayer.
The high rider cart serves as the sprayer's mobile support structure. It provides designated mounting locations for the equipment and helps facilitate movement between storage areas, transport vehicles, and working locations.
Unlike a skid-mounted configuration, a high rider cart arrangement incorporates a wheeled support structure. Its mobility depends on the condition of the frame, wheels, axle-related components, and other specified attachments.
The high rider cart does not generate fluid pressure, regulate the motor, or move coating material through the pump. Its primary functions concern equipment support, positioning, and transportation.
The cart frame provides the main structural arrangement for the installed sprayer. It supports designated equipment mounting locations and helps maintain the intended relationship between the sprayer and its mobile base.
Frame damage can affect equipment stability and mounting alignment. Bent structural members, cracked connections, or damaged attachment points should be inspected before the sprayer is returned to service.
The wheel arrangement allows the cart to move across suitable working surfaces. Wheel condition can influence rolling performance, handling, and the ability to transport the sprayer without unnecessary resistance.
Worn wheel components may produce uneven rolling, unwanted movement, or unusual noise during transportation. These symptoms should be investigated to identify the affected component.
Axle-related components, where specified, support wheel positioning and rotation. Their correct installation is important for maintaining the intended cart configuration.
Retaining hardware may be used to secure wheels or other components in place. Missing or damaged retainers should be replaced with the correct manufacturer-specified parts.
The handle arrangement provides a designated location for moving the cart. Handle damage or loose attachments can affect equipment handling and should be addressed before transportation.
Cart mounting hardware connects the sprayer's installed equipment components to the support frame. Loose or damaged attachments may affect equipment stability and require inspection.
Protective contact components or frame feet, where included, may support designated portions of the cart when the equipment is positioned for operation or storage.
The RentSpray 650 High Rider Cart Assembly diagram should be used to determine the exact structural components and service hardware included in the applicable model configuration.
Although many sprayer carts use similar component types, wheel dimensions, axle specifications, frame geometry, and mounting arrangements can differ between models.
Parts from the Titan RentSpray 600, RentSpray 600 Impact, or other Titan cart assemblies should not be assumed interchangeable with the RentSpray 650 without matching manufacturer references.
A cart repair may require only an individual fastener, wheel component, retaining part, or protective attachment. More extensive damage may require replacement of a larger structural component.
Customers should confirm whether the product listing represents a single part, a wheel assembly, a hardware set, or a larger cart component. Included quantities and supplied contents should be checked before ordering.
Before selecting a replacement, verify the equipment model, relevant serial or revision details, illustrated component position, and complete Titan part number.
Regular inspection of the high rider cart can help identify wheel wear, loose hardware, frame damage, and other service requirements before they affect equipment handling.
AllTitanParts organizes Titan sprayer replacement parts by model and assembly to help customers locate the appropriate service category without confusing structural cart components with pump, drive, or electrical parts.
Browse the Titan RentSpray 650 High Rider Cart Assembly category to review available replacement parts, compare illustrated references, and select suitable components for cart mobility, frame support, and equipment maintenance.
Understanding Titan RentSpray 650 High Rider Cart Components
The following cards describe common service areas of wheeled airless sprayer cart assemblies. The exact RentSpray 650 High Rider Cart Assembly inventory must be confirmed from the applicable illustrated parts breakdown.
High Rider Cart Frame
The cart frame provides the structural support arrangement for the installed sprayer and associated cart components.
Inspect for bending, cracks, corrosion, and damaged mounting locations. Confirm the correct frame reference before replacement.
Cart Wheels
Wheels provide the rolling support required for transporting the cart-mounted sprayer.
Inspect for wear, damage, restricted rotation, and correct attachment. Verify the specified wheel dimensions and part number.
Axle and Wheel Mounting Parts
Axle-related components support the wheel arrangement and maintain the intended positioning of the cart's moving parts.
Check for damage, wear, and correct installation. Confirm the manufacturer reference before ordering.
Handle Components
The handle arrangement provides a designated point for moving and positioning the sprayer cart.
Inspect handle attachments and structural condition before transporting the equipment.
Fasteners and Retaining Hardware
Screws, nuts, washers, and retaining components secure designated cart parts in their intended positions.
Replace missing or damaged hardware using the correct Titan part numbers and installation requirements.

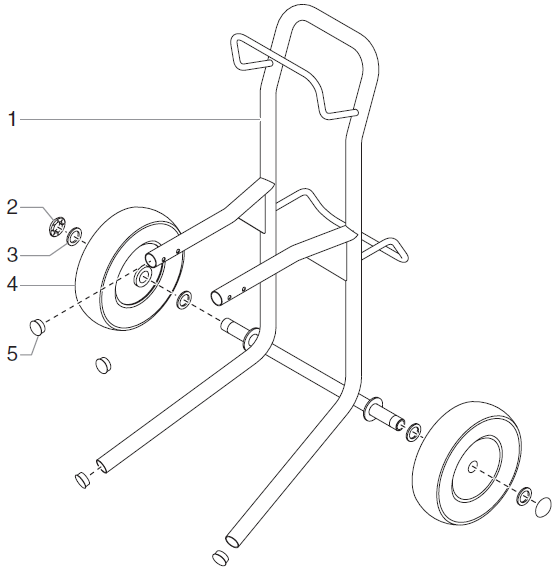

High Rider Cart Parts Diagram
The illustrated assembly breakdown helps identify the position and manufacturer reference of the cart components specified for the RentSpray 650.
Match the diagram item number with the current product listing before purchase.
Component verification: The categories above describe common cart service areas. Exact wheel designs, axle specifications, handle components, hardware quantities, and individual replacement availability require confirmation from the RentSpray 650 High Rider Cart Assembly diagram.
Titan RentSpray 650 High Rider Cart Parts Identification Guide
Use this table to identify common high rider cart service areas and the information needed when selecting replacement components.
| Component Area | General Function | What to Verify |
|---|---|---|
| High Rider Cart Frame | Supports the installed sprayer and cart components. | Frame design, mounting locations, and model compatibility. |
| Wheels | Provide rolling support for equipment transportation. | Wheel size, attachment type, and Titan part number. |
| Axle Components | Support wheel positioning and rotation. | Axle design, dimensions, and specified hardware. |
| Handle Components | Provide designated equipment handling points. | Handle configuration and mounting references. |
| Mounting Hardware | Secures the sprayer to its cart support arrangement. | Correct fasteners, mounting locations, and quantity. |
| Retaining Components | Maintain specified wheel or attachment positioning. | Retainer design, installation position, and part number. |
| Protective Contact Parts | Support designated frame contact locations where fitted. | Component shape, attachment requirements, and compatibility. |
How the Titan RentSpray 650 High Rider Cart Assembly Works
Structural Sprayer Support
The cart frame provides the designated support arrangement for the sprayer and its mounted equipment components. The condition of the frame and attachment locations is important for maintaining equipment stability.
Wheel-Based Transportation
The wheeled configuration allows the sprayer to be moved between suitable work locations. Wheel condition and correct attachment influence rolling performance and equipment handling.
Axle and Wheel Retention
The specified axle and retaining arrangement maintains wheel positioning. Damaged or missing retaining components should be addressed before the cart is moved.
Handle and Equipment Positioning
The designated handle arrangement provides a means of positioning the cart. Operators should use the approved handling points and avoid moving equipment with damaged handle attachments.
Relationship to the Sprayer's Operating Systems
The high rider cart supports the equipment but does not perform pumping, pressure regulation, or fluid intake. Problems involving these functions should be investigated through the appropriate operating assembly.
Common Titan RentSpray 650 High Rider Cart Problems
The following inspection points address common wheeled sprayer cart issues. Determine the actual cause before replacing parts.
| Observed Problem | Possible Inspection Area | Recommended Action |
|---|---|---|
| Cart is difficult to roll | Wheels, axle-related parts, or debris accumulation | Inspect the wheel arrangement and remove accessible debris using safe procedures. |
| Uneven wheel movement | Wheel condition, attachment, or axle alignment | Check for damage and identify the correct replacement component. |
| Loose wheel attachment | Retaining hardware or axle-related components | Stop transporting the sprayer and inspect the specified retention arrangement. |
| Cart frame appears bent | Structural frame and mounting locations | Assess the frame and connected components before returning the equipment to service. |
| Handle feels loose | Handle attachments and mounting hardware | Inspect the attachment points and replace damaged or missing components. |
| Sprayer moves excessively while positioned | Supporting surface, cart configuration, or mounting components | Check surface conditions and inspect the equipment support arrangement. |
| Visible corrosion or damaged hardware | Frame connections, fasteners, or exposed cart components | Assess the affected components and select manufacturer-specified replacements where required. |
Safety: Switch off the sprayer, disconnect electrical power, and follow the manufacturer's pressure relief procedure before servicing the cart or its mounted equipment. Do not transport the sprayer with damaged wheels, loose retaining hardware, or compromised structural supports. Follow approved lifting and handling instructions.
Maintaining the Titan RentSpray 650 High Rider Cart Assembly
Routine cart inspection can help identify mobility problems, damaged support components, and loose attachments before they affect equipment transportation or positioning.
Inspect Wheel Condition
Check for wear, cracks, deformation, or restricted rotation before moving the sprayer.
Check Axle Attachments
Inspect accessible axle and retaining components for damage, looseness, or missing hardware.
Examine the Cart Frame
Look for cracks, bending, corrosion, and damaged structural attachment areas.
Inspect Handle Connections
Confirm that designated handle components and their attachments remain secure and undamaged.
Clean the Cart Components
Remove accumulated coating residue and debris using suitable cleaning methods that do not damage the equipment.
Inspect After Transportation
Check for impact damage or loosened attachments after loading, unloading, or transporting the sprayer.
Choosing the Right RentSpray 650 High Rider Cart Repair Parts
Individual Wheel or Hardware Parts
A worn wheel, damaged retainer, or missing fastener may be replaceable individually when the correct component is available separately.
Related Cart Components
Some repairs may involve several connected components. Inspect the affected wheel, axle, or handle arrangement before deciding which parts require replacement.
Structural Cart Replacement
A larger replacement component may be appropriate when the frame or another structural part is damaged. Verify the exact replacement reference and supplied contents.
How to Order Titan RentSpray 650 High Rider Cart Parts
1. Confirm the Equipment Model
Verify that your sprayer is the Titan RentSpray 650 and identify its high rider cart configuration.
2. Identify the Cart Component
Locate the wheel, axle-related component, handle, frame part, or hardware item in the cart assembly diagram.
3. Match the Titan Part Number
Compare the complete manufacturer reference with the current product listing and any confirmed replacement information.
4. Verify Product Details
Confirm compatibility, supplied contents, quantity, and availability before placing your order.
Related Titan RentSpray 650 Assembly Parts
Browse the RentSpray 650 model category and other assembly sections when your repair involves the pump, drive, siphon system, or skid support arrangement.
Frequently Asked Questions About Titan RentSpray 650 High Rider Cart Parts
What is the Titan RentSpray 650 High Rider Cart Assembly?
It is the wheeled support arrangement associated with the high rider cart configuration of the Titan RentSpray 650 airless sprayer. It provides structural support and helps facilitate equipment transportation.
What parts should I inspect when the cart is difficult to move?
Inspect the wheels, axle-related components, retaining hardware, and surrounding areas for wear, damage, or accumulated debris.
How do I find the correct RentSpray 650 cart wheel?
Use the High Rider Cart Assembly diagram to identify the specified wheel and match its complete Titan part number with the product listing. Do not select a replacement based only on visual appearance.
Can I replace individual cart components?
Individual replacement may be possible when the required component is offered separately and the surrounding cart structure remains serviceable. Confirm the exact part reference and supplied contents.
Are RentSpray 650 High Rider Cart parts interchangeable with RentSpray 600 parts?
Compatibility should not be assumed. Verify the complete Titan part number and the applicable manufacturer references before selecting parts from another RentSpray model.
What is the difference between the skid and high rider cart assemblies?
The skid assembly provides a stationary support arrangement, while the high rider cart uses a wheeled support structure intended to facilitate equipment movement. Their component configurations and replacement references may differ.
Where can I get help finding RentSpray 650 High Rider Cart Assembly parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, serial number, diagram reference, and the required component description or part number.
Shop Titan RentSpray 650 High Rider Cart Assembly Parts
Find replacement parts for your Titan RentSpray 650 High Rider Cart Assembly. Review the illustrated cart diagram, identify the correct Titan part number, and select suitable components for wheel repairs, structural support, and sprayer transportation.
Shop High Rider Cart Parts Call 713-931-0006
