Titan PowrLiner 2800 Cart Assembly Parts Breakdown
The Titan PowrLiner 2800 is a professional walk-behind striping machine designed for parking lots, athletic fields, warehouses, and light roadway applications. This page provides the complete cart assembly parts breakdown specifically for this model. The cart assembly forms the structural foundation of the Titan PowrLiner. It supports the engine, fluid section, drive components, paint container, and gun arm system. Proper frame alignment and structural integrity are critical for maintaining straight tracking and consistent striping performance.
What This Cart Assembly Fits
- Titan PowrLiner 2800 walk-behind striping machine
These components are engineered exclusively for the 2800 configuration. Always verify your machine’s model and serial number before ordering replacement parts to ensure proper compatibility.
Where It Is Used
The PowrLiner 2800 cart assembly supports operations in:
- Parking lot striping
- Athletic field and turf marking
- Warehouse floor layout
- Light municipal and roadway striping
- Commercial property maintenance
As a professional-grade Titan sprayer, the 2800 relies on a stable chassis to ensure smooth maneuverability and accurate line control. Frame damage, worn wheel supports, or loose hardware can negatively affect tracking precision.
Cart Assembly Components Typically Include
- Main frame weldment
- Handle assembly
- Wheel and axle supports
- Engine and pump mounting brackets
- Gun arm support structure
- Structural fasteners and hardware
These parts provide the structural backbone of the Titan paint sprayer. Routine inspection of frame welds, mounting brackets, and hardware helps maintain dependable performance in demanding striping environments.
Why Proper Cart Maintenance Matters
Using correct OEM replacement parts helps maintain:
- Stable machine balance
- Straight line tracking
- Proper gun alignment
- Safe operation on pavement surfaces
This page focuses on accurate identification of Pavement Marking Sprayer Parts and Field Marking Sprayer Parts specific to the PowrLiner 2800 cart assembly. Always consult the official Titan parts diagram when selecting replacement components.
Ordering Guidance
- If you notice vibration, uneven tracking, or structural instability during operation, inspect frame components and hardware for wear or damage. Match part numbers carefully before purchasing to avoid compatibility issues.
- For additional OEM breakdowns and replacement components for your Titan PowrLiner, visit alltitanparts.com to explore our complete selection of Titan striping equipment parts.
- Maintaining the cart assembly ensures your 2800 continues delivering consistent and professional striping results.

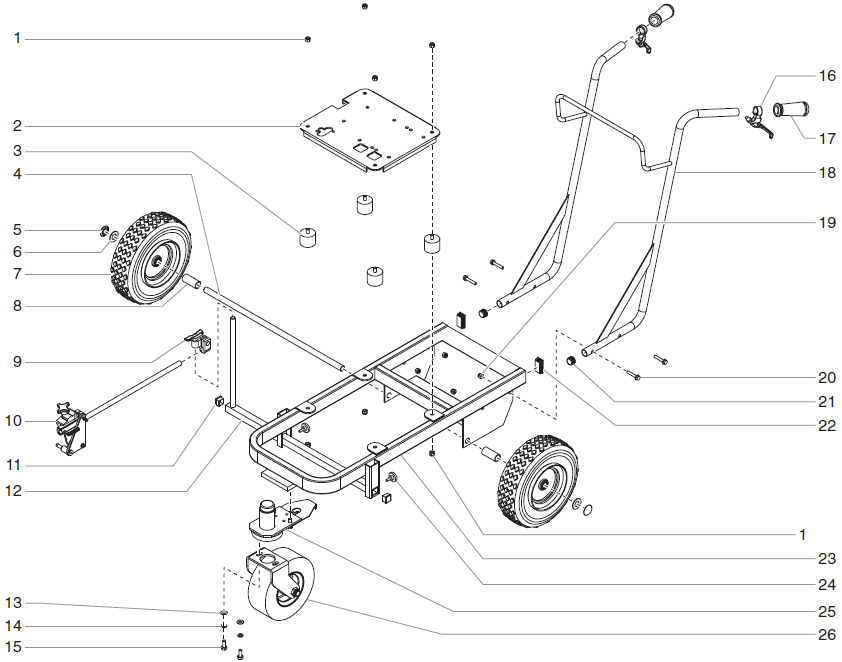

PowrLiner 2800 Cart Assembly (P/N 779-350)
The PowrLiner 2800 Cart Assembly (P/N 779-350) is built to support stability, mobility, and long-term durability in demanding line striping environments. Designed for professional contractors, this assembly keeps your PowrLiner 2800 easy to maneuver while protecting key components from excessive vibration and wear. Using genuine Titan replacement parts ensures your machine stays balanced, smooth-rolling, and job-ready at all times.
The Titan 757-042 Vibration Mount helps absorb shock and reduce vibration during operation, protecting internal components and improving operator comfort. For secure wheel positioning, the Titan 800-019 Axle Cap keeps the axle assembly properly aligned. The Titan 670-109 Wheel provides smooth movement across asphalt, concrete, and uneven surfaces, making transport and positioning effortless. Completing the setup, the Titan 759-329 Clamp Assembly holds components firmly in place, maintaining the overall structural integrity of the cart.
Together, these Cart Assembly components help extend equipment life, reduce downtime, and ensure smooth handling on parking lots, roadways, and field marking projects.
FAQs
What is the purpose of the Titan 757-042 Vibration Mount?
It reduces shock and vibration during operation, helping protect internal components and improving machine stability.
Why is the Titan 670-109 Wheel important for the cart assembly?
This wheel ensures smooth and controlled movement, allowing easy transport across rough or uneven job surfaces.
What does the Titan 800-019 Axle Cap do?
The axle cap secures the axle in place, helping maintain proper wheel alignment and safe operation.
How does the Titan 759-329 Clamp Assembly support the cart?
It firmly holds components together, preventing unwanted movement and keeping the cart assembly stable.
When should I replace PowrLiner 2800 cart assembly parts?
Replace parts when you notice excessive vibration, difficulty moving the machine, loose components, or visible wear to maintain optimal performance and safety.
